U1190 Series 3.5 Digit Handheld Clamp Meters



Ergonomic clamp multimeters that fit comfortably in your hand

入門價 NT$ 5,947

購買 / 報價

已經擁有此產品? 查看技術支援

Highlights

Handheld Clamp Multimeters Built for Where You Work

Keysight’s U1190 Series clamp multimeters incorporate features to help you work more conveniently and safely. Housed in robust cases, these ergonomic handheld digital multimeters (DMM) fit comfortably in the palm of your hand and let you select functions with just a thumb press. A Keysight clamp multimeter is different from most other clamp multimeters because it also features handheld DMM functionality.
  • Unique wire separator helps you isolate and measure individual wires in a bundle
  • Troubleshoot easily in dim lighting with the built-in LED flashlight
  • Never miss a beep in noisy environments with visual and audio continuity alerts
  • Vsense noncontact voltage detection alerts you to high AC voltage presence in hot or live wires
  • Handheld DMM offers resistance, capacitance, DCV, ACV, DCA, ACA, DCµA, and ACµA measurement capabilities
  • CAT III 600 V / CAT IV 300 V safety rating ensures protection while you go about your tasks

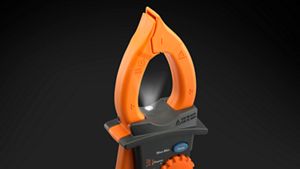

Unique wire separator with a built-in flashlight

The U1190 Series clamp meters have a unique wire separator that allows you to easily isolate and perform measurements on individual wires in a bundle. Plus, models U1192A, U1193A, and U1194A come with the following:

  • A built-in LED flashlight that illuminates the test area to help you troubleshoot in low-light environments
  • Vsense, a unique method of noncontact voltage detection that provides safeguards from exposure to hot or live wires

Key Specifications

Resolution

3.5 digits

Max Reading Speed

3 readings/s

Basic 1-Year DCV Accuracy

0.5%

Battery Life

200 hours

Jaw Opening

31 to 37 mm
