產品特性

  • 涵蓋最新的 DisplayPort 和 DP Alt Mode on USB Type-C 規格，以支援 UHBR、HBR 和 RBR 速率的被動纜線。
  • E5080B ENA、E5081A ENA-X、N522xB PNA、P502xA/P502xB/P93xxB Streamline VNA 系列和 PXI-VNA 系列支援 4 埠 VNA。
  • 如搭配使用 L8990M-0LZ 4 至 20 埠交換矩陣系統，可實現全自動測試功能。
  • 設定精靈可協助您快速進行設定、校驗並選擇測試。
  • 提供測試夾具解嵌入功能和 2X THRU 自動測試夾具移除（AFR）功能，讓您能獲得準確的量測結果。
  • 可針對特定測試應用和驗證，建立客製的測試計畫。
  • 提供 HTML 和 CSV 格式的完整測試報告。
  • 即時除錯與故障排除。
  • 與 TAP 平台相容，可透過 S94USBCB 額外的軟體授權，來測試 USB Type-C 被動和主動纜線。
S94DPPCB

Free Trials

Get a 30-day trial license for S94DPPCB DisplayPort DP Cable Compliance Test Software.

  • Request a free trial of the software
  • Enables the application on your PC or VNA
  • Evaluate the full-featured version with no functionality restrictions

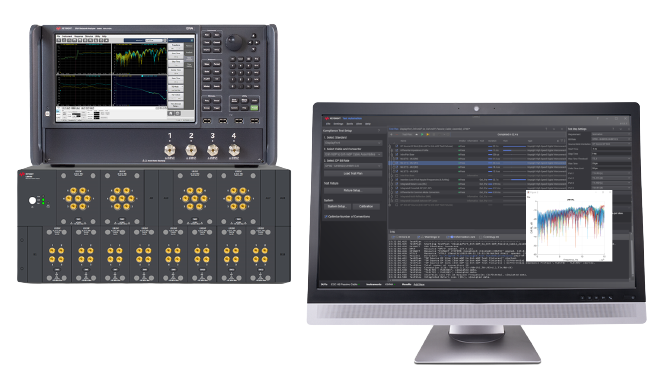

S94DPPCB

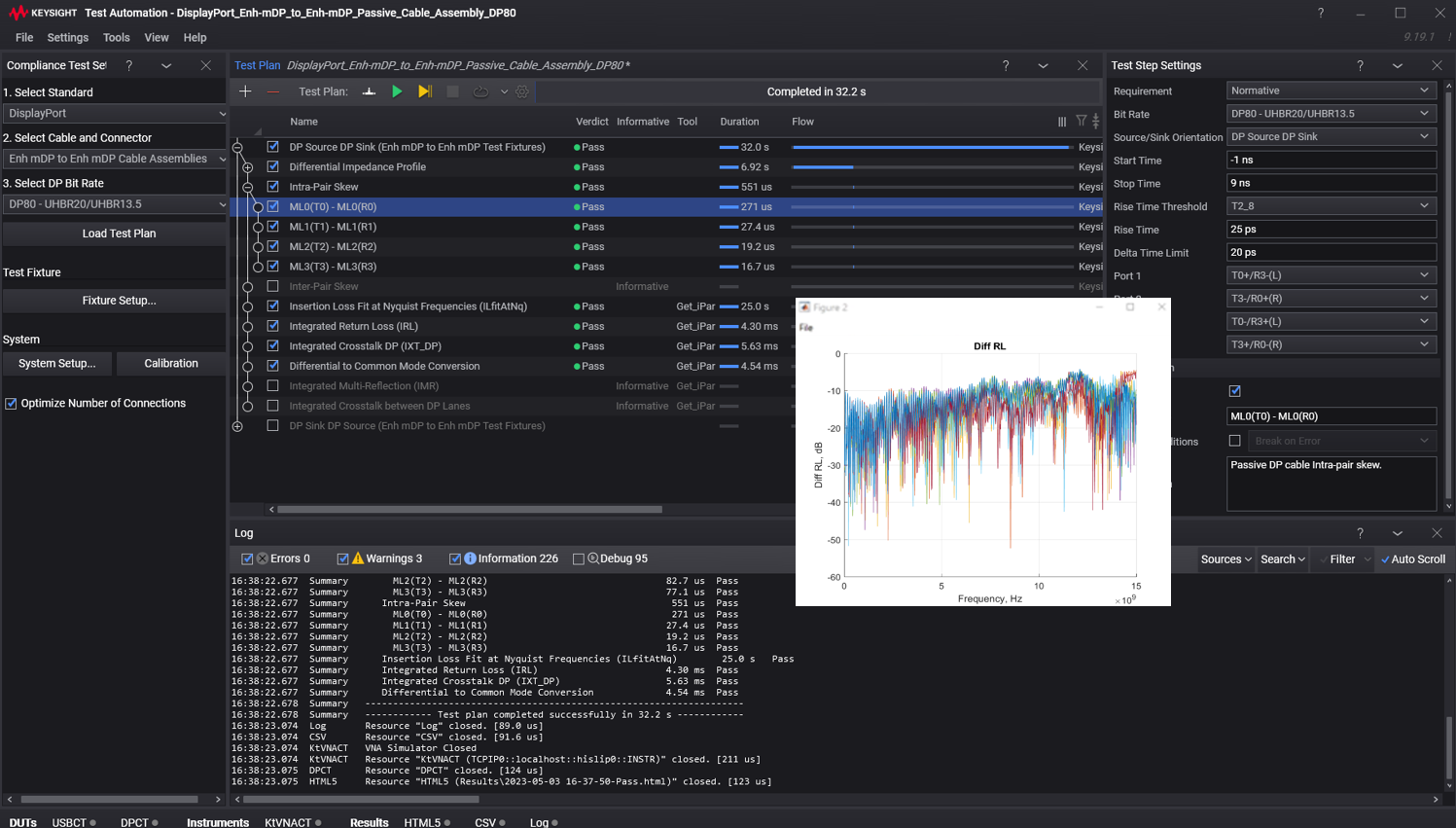

Interested in a S94DPPCB?

Extend the Capabilities of Your S94DPPCB
