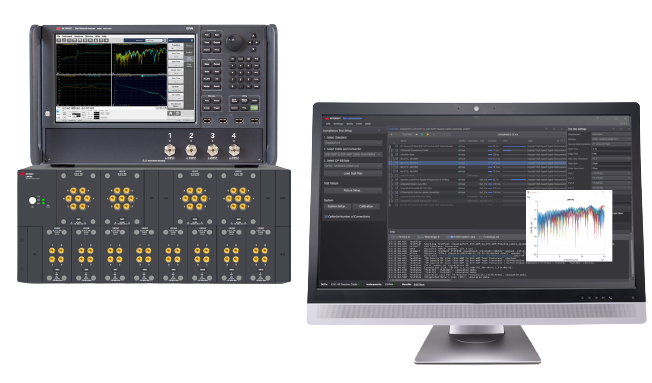

ハイライト

  • USBタイプC仕様の最新のDisplayPortおよびDP Alt Modeをカバーし、UHBR、HBR、RBRの速度レートのパッシブケーブルをサポートします。
  • E5080B ENA、E5081A ENA-X、N522xB PNA、P502xA/P502xB/P93xxB Streamline VNAシリーズ、およびPXI-VNAシリーズの4ポートVNAをサポート。
  • L8990M-0LZ 4-20ポート・スイッチ・マトリクス・システムによる完全自動化。
  • セットアップウィザードによる迅速なセットアップ、校正、テスト選択。
  • 正確な測定結果を得るために、テストフィクスチャのディエンベディングと2X THRU自動フィクスチャ除去(AFR)を提供。
  • 特定のテストアプリケーションや検証目的のためのテストプランのカスタマイズ。
  • HTMLおよびCSV形式による包括的なテストレポート。
  • リアルタイムのデバッグとトラブルシューティング。
  • S94USBCBの追加ソフトウェアライセンスにより、USBタイプCのパッシブケーブルおよびアクティブケーブルのテストに対応するTAPプラットフォーム。
S94DPPCB

Free Trials

Get a 30-day trial license for S94DPPCB DisplayPort DP Cable Compliance Test Software.

  • Request a free trial of the software
  • Enables the application on your PC or VNA
  • Evaluate the full-featured version with no functionality restrictions
S94DPPCB

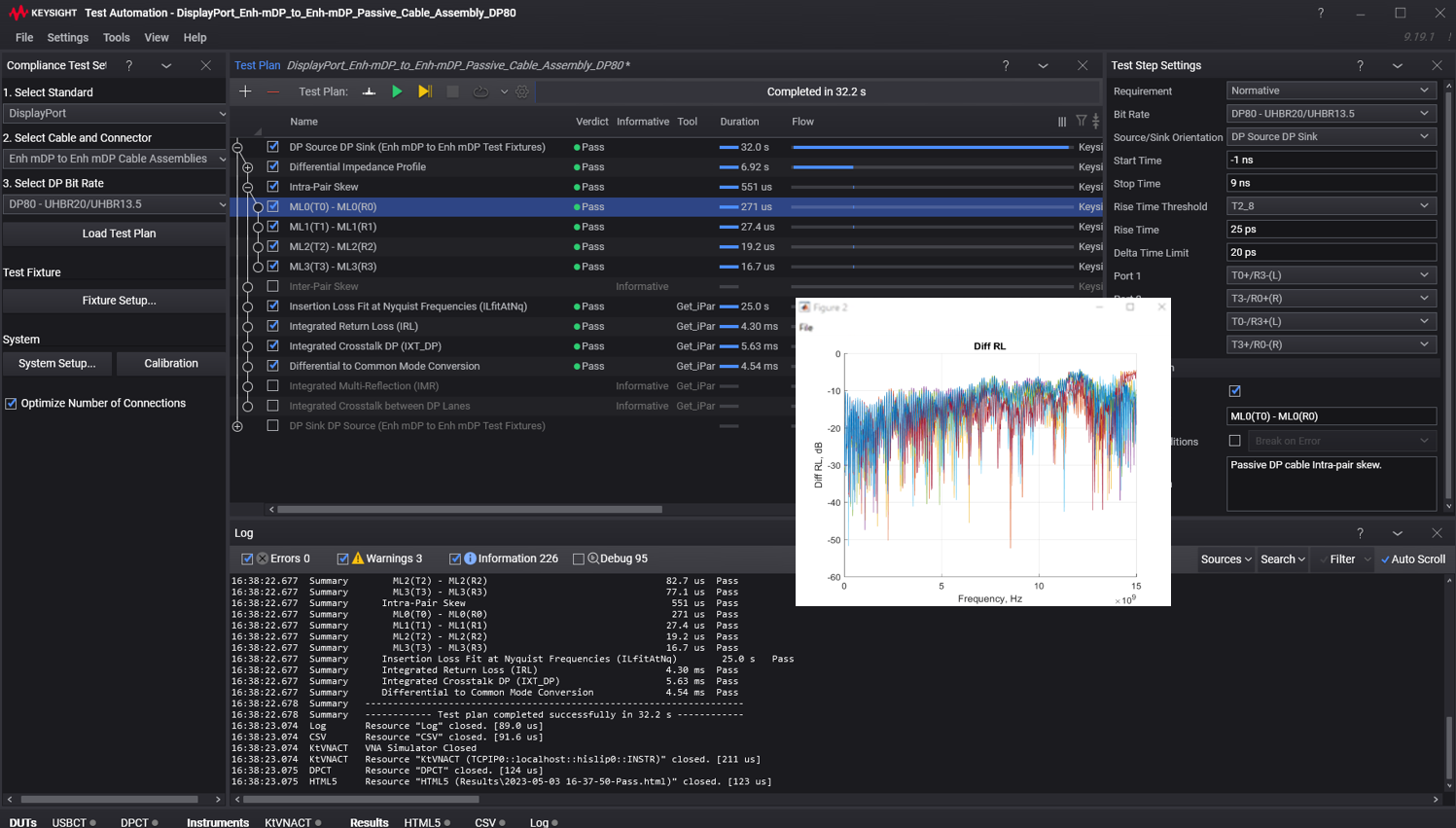

Interested in a S94DPPCB?

Extend the Capabilities of Your S94DPPCB
