Highlights

Smooth the Transition Between R&D, Manufacturing, and Maintenance

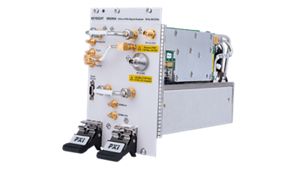

The M9290 is a Keysight X-Series signal analyzer that offers fully specified performance up to 26.5 GHz. A rich set of capabilities, including swept and FFT modes in the same instrument, help you accelerate measurement tasks with this PXI spectrum analyzer.

  • Test with smaller microwave footprint with no trade-off in precision
  • Rely on fully specified performance up to 26.5 GHz in 4 slots
  • Optimize your balance between speed, sensitivity and accuracy with swept or FFT modes
  • Perform fast calibrated stimulus response measurement with full-band tracking generator
  • Get X-Series attributes including familiar interface and code compatibility
  • Simplify evaluation and programming with ready-to-use drivers and SCPI commands

Compact And Precise

  • Choose from four models that range from 10 Hz to 3, 7.5, 13.6, or 26.5 GHz
  • Deploy a four-slot solution that provides best-in-class performance in key areas
  • See consistent results across your product lifecycle with proven X-Series measurement science
  • Create effective automated tests with a rich set of measurement capabilities
  • Shorten the learning curve and simplify the transition from box instruments to PXI

KEY SPECIFICATIONS

頻率
N/A
1 GHz 時的 DANL
-163 dBm
最大分析頻寬
25 MHz
最大即時頻寬
N/A
1 GHz、10 kHz 偏移時的相位雜訊
-110 dBc/Hz
頻率
1 GHz 時的 DANL
最大分析頻寬
最大即時頻寬
1 GHz、10 kHz 偏移時的相位雜訊
N/A
-163 dBm
25 MHz
N/A
-110 dBc/Hz
查看更多
可用的應用軟體:
N/A
蜂巢式行動通訊應用:
GSM/EDGE/EDGE Evolution
LTE/LTE-Advanced
W-CDMA/HSPA/HSPA+
數位視訊應用:
N/A
一般應用:
89600 VSA Software
Analog Demodulation
Flexible Digital Modulation Analysis
MATLAB
Noise Figure
Phase Noise
SCPI Code Compatibility
Stimulus Response
無線連接應用:
Bluetooth®
頻率遮罩觸發應用:
N/A
頻寬選項:
10 standard, 25 MHz
1 GHz 時的 DANL:
-163 dBm
10 GHz 時的 DANL,無前置放大器:
-140 dBm/Hz
2 GHz 時的 DANL,無前置放大器:
-149 dBm
可偵測的信號持續時間,信號遮罩比> 60 dB:
N/A
顯示畫面:
N/A
頻率:
N/A
頻率選項:
3, 7.5, 13.6, 26.5 GHz
最大分析頻寬:
25 MHz
1 GHz時的最大三階動態範圍:
111 dB
最大即時頻寬:
N/A
100%攔截率的最長持續時間:
N/A
多域頻寬:
N/A
整體振幅準確度:
± 0.5 dB
效能等級:
◆◆◇◇◇◇
1 GHz、1 MHz 偏移時的相位雜訊:
-132 dBc/Hz
1 GHz、10 kHz 偏移時的相位雜訊:
-110 dBc/Hz
1 GHz、30 kHz偏移時的相位雜訊:
-110 dBc/Hz
即時頻寬選項:
N/A
無突波動態範圍:
N/A
標準衰減器範圍:
70 dB
標準衰減器步進:
10 dB
1 GHz時的TOI (三階攔截):
+16 dBm
觸發:
RF Burst
線條
外部
Periodic
視訊
