HIGHLIGHTS

Signal Access

  • 46 channels: 44 single-ended data, 2 differential clock

Probe Performance

  • 1.5 pF equivalent load capacitance
  • 1333Mb/s maximum data rate
  • Measure signals with as little as 250 mV p-p signal amplitude

Connectivity

  • Provides convenient, reliable connection to the W3633A DDR3 DRAM BGA probe

Compatible with:

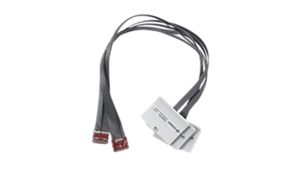

The Keysight E5847A ZIF probe connects to the W3633A DDR3 BGA probe to enable viewing of industry standard DDR3 DIMMs with a 16900 Series or U4154A logic analyzer.
