HIGHLIGHTS

  • 直流到 50 GHz
  • 單極，六投
  • 2.4 mm (母)，2.4 mm (母) 標準 (選項 101)
  • 2.4 mm (母)，2.4 mm (公) (選項 100)
  • 5、15、24 電壓螺線管 (solenoid) 供應電壓 (分別為選項 011、015、024)
  • 也可以使用含測試資料的商業校驗認證 (選項 UK6)
  • 絕佳穩定一致性：典型值 < 0.03 dB
  • 低插入損耗：< 50 GHz 時為 3.4 dB

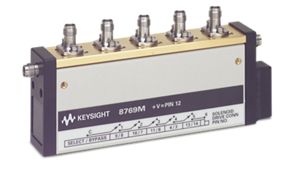

8769M Multiport Coaxial Switch

Interested in a 8769M?

Featured Resources for 8769M Multiport Coaxial Switch, DC to 50 GHz, SP6T

Technical Overviews 2017.11.30

8767/8/9M Microwave Single-Pole Multi-Throw Switches for Microwave and RF Manufacturing Test Systems

8767/8/9M Microwave Single-Pole Multi-Throw Switches for Microwave and RF Manufacturing Test Systems

This 8 page product overview describes the 8767/8/9M series multi-port switches (50 GHz). It provides details on specifications, features, product benefits, section switching, driver circuits, GPIB switching, isolation, insertion loss, pin assignments, mechanical information, ordering information, available options and accessories. It offers mechanical diagrams on driver and indicator circuits, port diagrams, and product outlines.

2017.11.30

Application Notes 2017.11.30

Coaxial Electromechanical Switches

Coaxial Electromechanical Switches

Keysight electromechanical switches have a guaranteed 0.03 dB repeatability and long operating life help you to reduce measurement uncertainty in a system.

2017.11.30

Technical Overviews 2014.07.30

RF and Microwave Switching Solutions

RF and Microwave Switching Solutions

This guide provides comprehensive information on Keysight’s RF/microwave switches and drivers. It includes important parameters and easy-to-use selection tables with detailed product specifications.

2014.07.30

Product Fact Sheets 2017.11.30

High Performance Multiport Switches

High Performance Multiport Switches

This two-page quick fact sheet highlights the key features and specifications for RF & Microwave Coaxial Fixed Attenuators.

2017.11.30

Application Notes 2023.06.08

Power Handling Capability of Electromechanical Switches

Power Handling Capability of Electromechanical Switches

This paper discusses power handling of the hot switching and cold switching of EM switches, and how to avoid catastrophic failure of the switches. Learn more.

2023.06.08

Flyers 2021.11.10

Keysight RF and Microwave Test Accessories, 40/50/54/67 GHz

Keysight RF and Microwave Test Accessories, 40/50/54/67 GHz

These test accessories will accommodate the required level of accuracy and performance in high frequency testing up to 67 GHz. They are ideal for radar and satellite testing, wireless communications, microwave backhaul and other high frequency applications where performance and reliability are the priority.

2021.11.10
