Highlights

Characterize your highest-performance designs for 56 GBaud and beyond

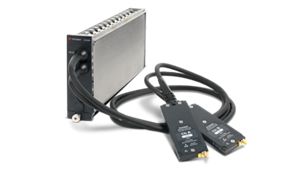

The N1046A remote sampling heads are modules for your 86100D Infiniium DCA-X mainframe. Like all of Keysight's DCA modules, the N1046A provides a wide range of configurations and performance options to interchange the bandwidth, channel count, and features of your oscilloscope solution.

  • Maximum available bandwidth of 75, 85 or 100+ GHz (selectable option upgradeable)
  • 1, 2 or 4 channels per module
  • User-selectable bandwidth settings starting at 60 GHz
  • Electrical inputs: 1 mm female (1.0 female to 1.85 female adapters included)

Characterize your highest-performance designs

The N1046A DCA module offers you unprecedented performance in a configurable platform.

  • World’s highest-bandwidth equivalent time sampling oscilloscope
  • World’s smallest oscilloscope remote heads, enabling direct or near-direct connection from the instrument to your DUT to maximize signal integrity
  • Configure to meet your specific needs from 1 to 16 channels with bandwidths of 75 GHz, 85 GHz or > 100 GHz
  • Bandwidth upgradable so you can buy what you need today and upgrade to more performance as you need it

KEY SPECIFICATIONS

頻寬
100 GHz
作業系統
N/A
頻寬
作業系統
100 GHz
N/A
查看更多
應用:
N/A
頻寬:
100 GHz
輸入類型:
1 mm (f)
模組類型:
Electrical
雜訊底線:
N/A
作業系統:
N/A
支援的資料速率:
N/A
