Highlights

Industry-Leading SSA Test Performance in One Easy-to-Use Instrument

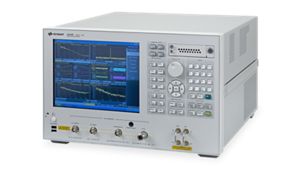

With the Keysight E5052B signal source analyzer you no longer need a bench full of tools to perform next-generation signal source analysis. Keysight's E5052B SSA test set delivers unparalleled performance and versatility across a variety of signal sources and industries from wireless communications to aerospace and defense.

  • Phase noise measurement with ultra-low noise floor and a cross-correlation method
  • Simplifies complicated, time-consuming measurements and dramatically reduces test time
  • Multi-window display speeds your measurement evaluation and allows you to view multiple results simultaneously
  • Simultaneous transient measurements for frequency, phase, and power over time
  • Video trigger function allows capture of unexpected frequency changes
  • Evaluates clock jitter in high-speed data communication systems

Exceptional Phase Noise Sensitivity

The E5052B SSA provides the right combination of performance and flexibility to meet your signal source test needs now and well into the future.

  • Trace integration and jitter conversion offer quick and accurate jitter analysis
  • Outstanding low-noise DC sources provide accuracy and flexibility
  • Frequency range can be extended up to 26.5 GHz with the E5053A microwave downconverter, and up to 11 O GHz with the E5053A plus Keysight 11970 series mixers

KEY SPECIFICATIONS

量測能力
Phase noise, frequency, power, DC current, transients, spectrum monitor,AM Noise,Baseband Noise
頻率範圍
10 MHz to 7, 26.5, or 110 GHz
偏移頻率範圍
1 Hz to 100 MHz
相位雜訊靈敏度
-178 dBc/Hz (Typical)
參考信號源
Built-in
暫態/RF 暫態量測
Yes (frequency/phase/power over time)
量測能力
頻率範圍
偏移頻率範圍
相位雜訊靈敏度
參考信號源
暫態/RF 暫態量測
Phase noise, frequency, power, DC current, transients, spectrum monitor,AM Noise,Baseband Noise
10 MHz to 7, 26.5, or 110 GHz
1 Hz to 100 MHz
-178 dBc/Hz (Typical)
Built-in
Yes (frequency/phase/power over time)
查看更多
更多資訊:
Easy-one-step measurement • Exceptionally fast measurements
振盪器特性量測的 DC 信號源:
Yes: -15 to +35 V for V tune • 0 to 16 V for Vcc
頻率範圍:
10 MHz to 7, 26.5, or 110 GHz
量測能力:
Phase noise, frequency, power, DC current, transients, spectrum monitor,AM Noise,Baseband Noise
偏移頻率範圍:
1 Hz to 100 MHz
相位雜訊靈敏度:
-178 dBc/Hz (Typical)
參考信號源:
Built-in
暫態/RF 暫態量測:
Yes (frequency/phase/power over time)

Standard Configurations
