Highlights

See the Real Performance of Your Design

The Test Platform comes with 1 test bus CEM to CEM connector. Full-featured, convenient and portable, the P5563B simplifies setup during testing of new PCIe products.

  • Supports 2.5GT/s through 64 GT/s
  • CEM connection with x4, x8 and x16 physical lane width support
  • Supports PCIe 6.0
  • CEM SI enhancements to reduce crosstalk and improve signal integrity
  • Utilizes low-loss material to support reliable, 64GT/s operation
  • Integrated low noise power supply with PCIe auxilary power available for high power endpoint devices
  • Stable mechanical construction for reliable operation with customer DUTs
  •  Supports EDSFF/OCP-NIC form factors

主要技術規格

Standards
PCIe 6.0
PCIe 5.0
PCIe 4.0
PCIe 3.0
PCIe 2.0
PCIe 1.0
CXL 1.1
CXL 2.0
Max Data Rate
64 GT/s
Standards
Max Data Rate
PCIe 6.0
PCIe 5.0
PCIe 4.0
PCIe 3.0
PCIe 2.0
PCIe 1.0
CXL 1.1
CXL 2.0
64 GT/s
查看更多
Max Data Rate:
64 GT/s
Protocols:
NRZ
PAM4
Standards :
PCIe 6.0
PCIe 5.0
PCIe 4.0
PCIe 3.0
PCIe 2.0
PCIe 1.0
CXL 1.1
CXL 2.0
類型:
Protocol Test Backplane

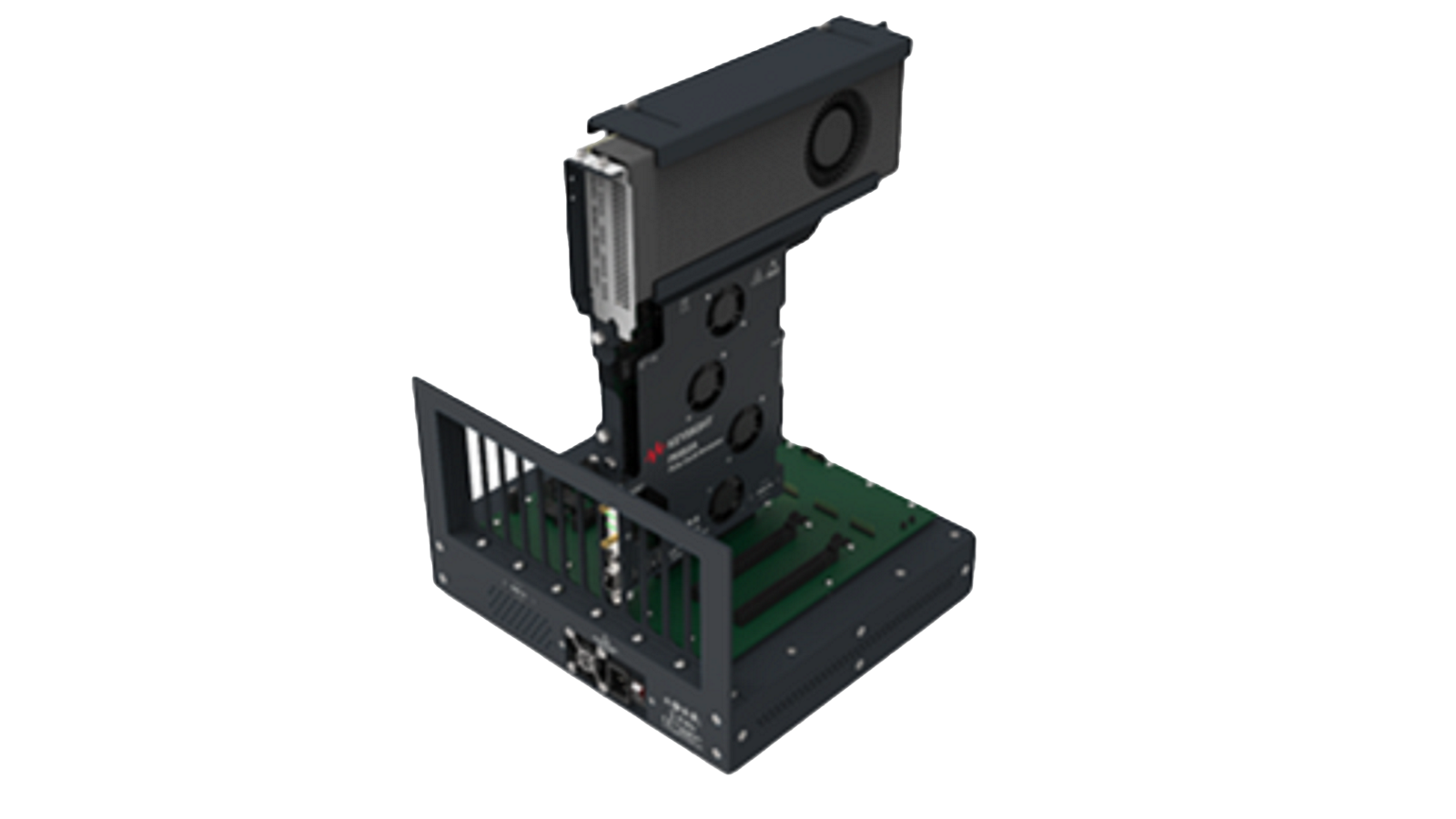

P5563B Backplane
