HIGHLIGHTS

  • 35 MHz 頻寬
  • 衰減率為 1:1
  • 39 pF 輸入電容
  • 1 MΩ 輸入電阻 (終端為 1 MΩ 示波器輸入時)
  • 55 V CAT II 最大輸入電壓

Keysight N2870A 被動式探棒提供直流至 35 MHz 及 1:1 的衰減係數，因此非常適合用來進行低位準信號量測

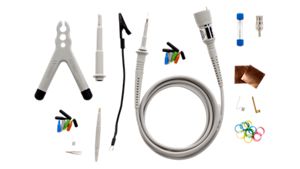

小巧的 2.5-mm 探棒頭直徑、低輸入電容，以及各種密間距探棒頭配件，讓 Keysight N2870A 系列被動式探棒，非常地適合用來探測今日高速數位應用中，密集的 IC 元件或表面安裝裝置。

尖銳的探棒頭裝有彈簧，幫助工程師防止探棒從待測裝置上滑落。絕緣的 IC 蓋可讓小探棒頭保持置中於 IC 引線上，防止探棒頭讓鄰近引線短路。標準直式接地接頭和自黏式銅接地墊，有助於減少接地電感，同時提供簡易地接地接取。選購的探棒頭配件，為嚴苛的應用提供了特殊功能。

相容於具備 1 MΩ 輸入的 Keysight InfiniiVision 與 Infiniium 系列示波器。

若要查看 35 MHz 到 1.5 GHz 的所有 Keysight N287xA 系列探棒，請按一下相關產品頁籤 (連結至產品 ID：1661690)
