HIGHLIGHTS

  • 用於減低不匹配不確定度的絕佳 SWR
  • 50 MHz校驗埠
  • 美國國家技術標準局 (NIST) 毫米波感測器校驗的準確校驗和追蹤能力
  • 與 EPM (全新的 N1913A/ 14A、E4418B/ 19B)、EPM-P (E4416A/ 17A) 和 P 系列 (N1911A/ 12A) 功率錶、E1416A VXI、已停產的 70100A，以及 43X 功率錶相容
  • -70到-20 dBm範圍內準確的平均功率量測
  • 26.5 GHz 至 40 GHz 的頻率範圍
  • 二極體功率感測元件

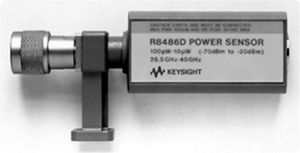

Keysight R8486D 二極體功率感測器可在 26.5 GHz 至  40 GHz 的頻率範圍和 -70至 -20 dBm (50 dB 動態範圍) 的功率範圍內執行平均功率量測

Keysight 11708A 30 dB 衰減器配備字尾為 "D" 的 Keysight 8480 系列功率感測器，以便使用功率錶進行校驗(以  0 dBm、50 MHz 為基準)。

找不到你想要的產品嗎? 試試我們的特殊選項

請詳閱產品規格書

Keysight Technologies F and S Award Logo


主要技術規格

下載產品規格書
Frequency Range
26.5 GHz to 40 GHz
Power range
-70 to -20 dBm (100 pW to 10 uW)
Frequency Range
Power range
26.5 GHz to 40 GHz
-70 to -20 dBm (100 pW to 10 uW)
查看更多
Connector Type:
Waveguide Flange UG-599/U
Frequency Range:
26.5 GHz to 40 GHz
最大功率:
N/A
Measurement Type (Supported Power Meters):
Average/CW (EPM-P and EPM)
Measurement Type:
Average/CW only
Power range:
-70 to -20 dBm (100 pW to 10 uW)

Standard Configurations

Prev
波導功率感測器
  • 用於減低不匹配不確定度的絕佳 SWR
  • 50 MHz校驗埠
  • 美國國家技術標準局 (NIST) 毫米波感測器校驗的準確校驗和追蹤能力
  • 與 EPM (全新的 N1913A/ 14A、E4418B/ 19B)、EPM-P (E4416A/ 17A) 和 P 系列 (N1911A/ 12A) 功率錶、E1416A VXI、已停產的 70100A，以及 43X 功率錶相容
  • -70到-20 dBm範圍內準確的平均功率量測
  • 26.5 GHz 至 40 GHz 的頻率範圍
  • 二極體功率感測元件
1
Waveguide Power Sensor, 26.5 to 40 GHz, -70 to -20 dBm | KeysightCare Technical Support - 3 years | Return to Keysight Warranty - 3 years. | Warranty, 3mth for included accessories
