Highlights

PXIe Optical Extenders for Instrumentation

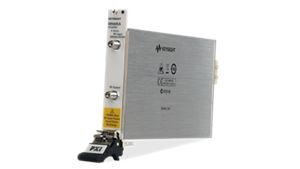

The Keysight M9405A is an RF amplifier in a single-slot PXIe form factor. Part of Keysight's PXIe modular family of optical extenders, the M9045A is useful for RF amplifier testing when combined with other test and automation modules in PXIe and hybrid chassis. Works best with Keysight's M9403A and M9404A optical links, but can also be used as a standalone RF amplifier.

  • Modular, scalable, and upgradable system
  • PXI format offers high performance in a small, rugged package
  • Ideal platform for many automated test systems
  • Provides +27 dB of gain (option F26) or +24 dB of gain (option F50)
  • Offers the flexibility of +27 dB or +24 dB of gain as a pre-amplifier to improve the noise figure

Configure to Meet Your Needs

M9405A modules are custom built. Please contact a Keysight representative to configure the M9405A RF amplifier to meet your system requirements. Standard configurations include:

Option F26 Option F50
  • 300 kHz to 26.5 GHz
  • +27 dB gain @ 26.5 GHz
  • 1 dB compression point with -14 dBm input power @ 26.5 GHz
  • 7 dB noise figure @ 26.5 GHz
  • 300 kHz to 50 GHz
  • +24 dB gain @ 50 GHz
  • 1 dB compression point with -13 dBm input power @ 50 GHz
  • 9 dB noise figure @ 50 GHz



KEY SPECIFICATIONS
