S94571B Arbitrary Load Control for Modulation Distortion - Export Control
Load pull capability for modulation distortion measurements
This product is not purchasable.
Please exit this procurement session to buy.
Please exit this procurement session to buy.
This product is over the price threshold for your account.
To buy, contact your procurement team.
To buy, contact your procurement team.
販売元: キーサイトオンライン販売
スタート価格:
Highlights
Provides load pull capability for nonlinear DUT behavior (EVM, NPR, and ACPR) under modulated stimulus conditions.
- Integrated mechanical tuner characterization and control for presenting user-specified loads to DUT
- Frequency coverage up to 67 GHz
- Supports most Maury and Focus passive loadpull tuners, see Modulation Distortion technical overview for details on compatible tuner models

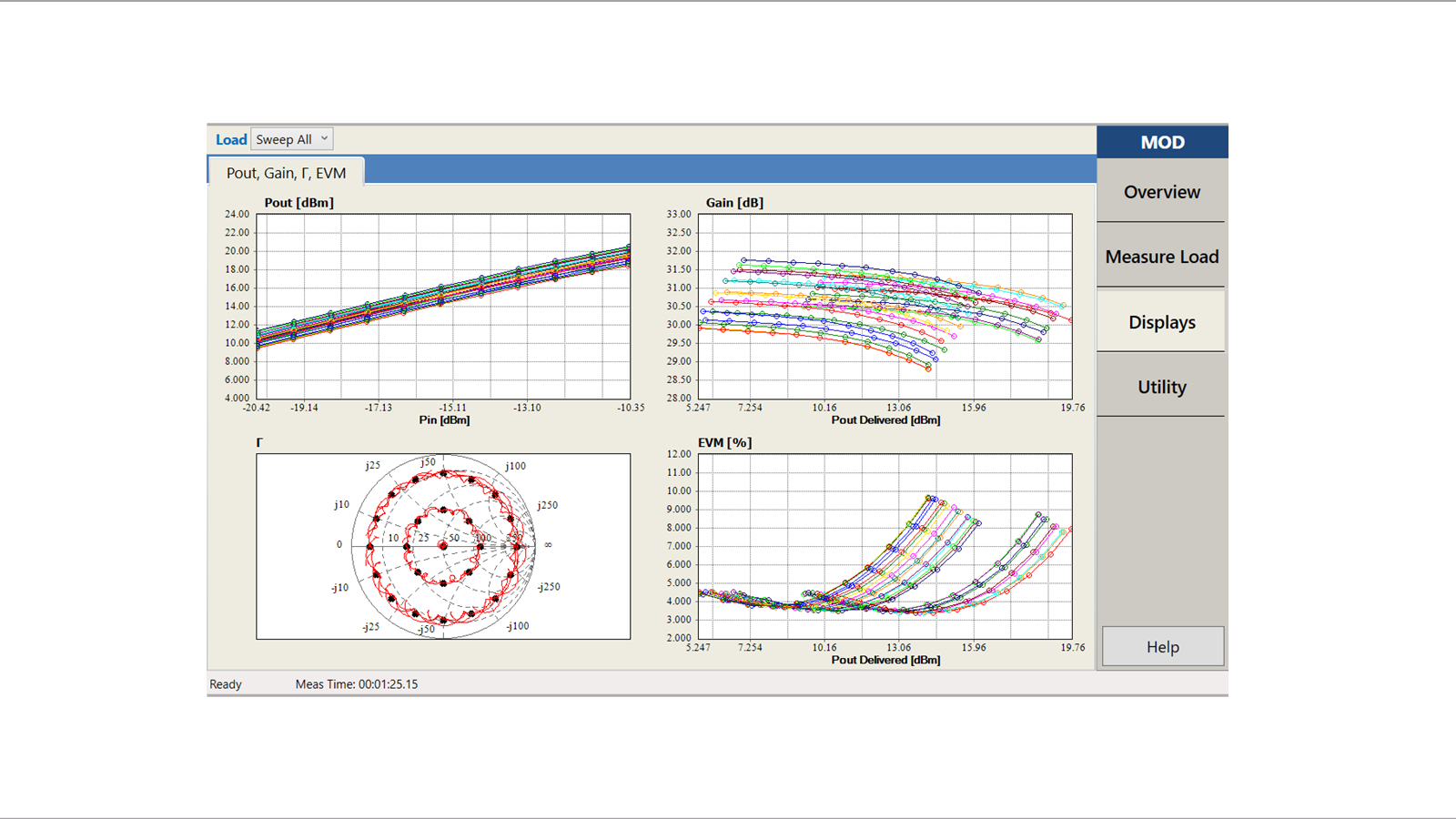

- Display measured EVM, power and gain for user-defined gamma
- Save measurement results in file format compatible for use in external programs such as ADS and MATLAB
Extend the modulation distortion application by computing figure of merits such as EVM and ACPR for any desired load with arbitrary load control (ALC). Modulation distortion with ALC integrates the powerful capabilities of the PNA-X with an electromechanical tuner so a non-50 Ω load can be presented to the DUT and changes in device performance or sensitivity to varying load conditions can be accurately measured.
