주요 특징

  • USB4, USB 3.x 및 USB 2.0 기술과 관련하여 최신 USB Type-C 케이블 어셈블리, 커넥터 및 원시 케이블에 대한 컴플라이언스 테스트를 처리할 수 있습니다.
  • E5080B, P502xA/B Streamline VNA 시리즈 및 PXI-VNA 시리즈에서 4포트 VNA를 지원합니다.
  • L8990M 4-to-20포트 스위치 매트릭스 시스템으로 멀티포트 측정을 완벽히 자동화할 수 있습니다.
  • 설정 마법사를 사용하여 빠르게 테스트를 설정하고 교정 및 실행할 수 있습니다
  • 테스트 픽스처 디임베딩 및 AFR(Automatic Fixture Removal)를 사용하여 정확한 측정이 가능합니다
  • 종합적인 HTML 테스트 보고서를 통해 측정에 대한 깊이있는 통찰력을 확보할 수 있습니다.

S94USBCB USB Type-C® 상호연결 컴플라이언스 테스트 솔루션은 규정을 준수할 수 있도록 USB Type-C 케이블 어셈블리와 커넥터 설계를 테스트, 특성화, 디버깅할 수 있는 빠르고 자동화된 방법을 제공합니다. L8990M 스위치 매트릭스 시스템 연결 시 이 솔루션을 사용하면 수동으로 포트를 다시 연결하지 않고도 4-to-20포트 전환이 가능합니다!

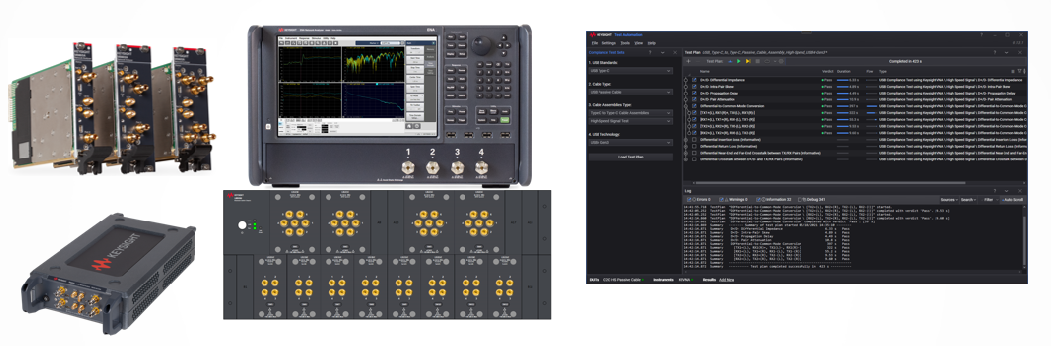

USB C high speed interconnects compliance testing

Free Trials

Get a 30-day trial license for S94USBCB software.

  • Request a free trial of the software
  • Enables the application on your PC or VNA
  • Evaluate full-featured version with no functionality restrictions
USB C high speed interconnects compliance test software

Interested in S94USBCB USB-C Testing for Your High Speed Interconnects Compliance Automation?

Extend the Capabilities of Your USB-C INTERCONNECTS TEST
