This Method of Implementation (MOI) is a guide for Connectors and Cable Assemblies/TxRx Hot TDR Compliance Tests using Keysight’s Vector Network Analyzer. State files test package contains pre-configured setups in accordance with the standard requirements and allows a quick and easy compliance test with pass/fail judgment.

Please download the MOI and state file test package according to your product platform listed below.

  Connectors and Cable Assemblies Tx/Rx Hot TDR
Test Parameters

  • Time Domain - DP80/DP40/DP8K Cable

    •   Differential Impedance Profile (Normative)

    •   Intra-Pair Skew (Normative)

    •   Inter-Pair Skew (Informative)

    Frequency Domain - DP80/DP40 Cable at UHBR 20/13.5/10

    Save the S-parameter touchstone file (s4p) and run the Get_iPar.exe compliance tool for DP80/DP40 Channel Metrics

    •   Insertion Loss Fit at Nyquist Frequencies, ILfitatNq (Normative)

    •   Integrated Return Loss, IRL (Normative)

    •   Integrated Crosstalk, IXT_DP (Normative)

    •   Differential-to-Common Mode Conversion (Normative)

    •   Integrated Multi-Reflection, IMR (Informative)

    •   Integrated Crosstalk between DP Lanes, IFEXT (Informative)

    Frequency Domain - DP8K Cable

    Save the S-parameter touchstone file (s4p) and run the IntePar.exe compliance tool for DP8K Channel Metrics.

    •   Insertion Loss Fit at Nyquist Frequencies, ILfitatNq (Normative)

    •   Integrated Return Loss, IRL (Normative)

    •   Differential-to-Common Mode Conversion (Normative)

    •   Integrated Multi-Reflection, IMR (Informative)

    •   Integrated Crosstalk between DP Lanes, INEXT/IFEXT (Informative)

    For lower bit rate HBR2, HBR and RBR only:

    •   Insertion Loss (Normative)

    •   Return Loss (Normative)

    •   Near End Noise (NEN) (Normative)

    •   Far End Noise (FEN) (Normative)

Source & Sink Return Loss (DP/mDP/Enh DP)

Source & Sink Return Loss (DP Alt Mode)
S94DPPCB

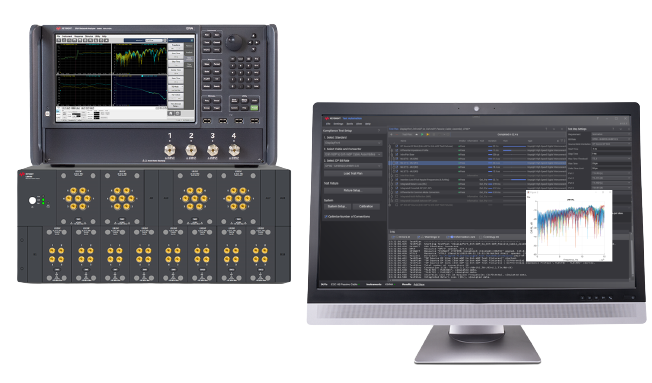

Want to accelerate and automate DP cable testing?
