• Inter-symbol-interference (ISI) emulation
  • Channel embedding and de-embedding
  • Adjustable loss range at Nyquist frequency
    • [-3dB, +2dB] with 0.5dB accuracy for M8045A pattern generator
    • [-20dB, +10dB] with 0.1dB accuracy for M8042A pattern generator

The M8070ISIB package for M8040A and M8050A BERT platforms is designed to accelerate the development and validation of chips, devices, transceiver modules, sub-components, boards, and systems with serial I/O ports in the server, computing, data center, and communications industry.

It is tailored for receiver (input) testing for many popular interconnect standards that use PAM4 and NRZ data formats such as Ethernet, PCIe, and USB.

Free Trials

Get a 30-day trial license for M8070ISIB. The M8070ISIB plugin and license should be installed on the PC running your M8070B system software for the M8000 Series of BER Test Solutions.

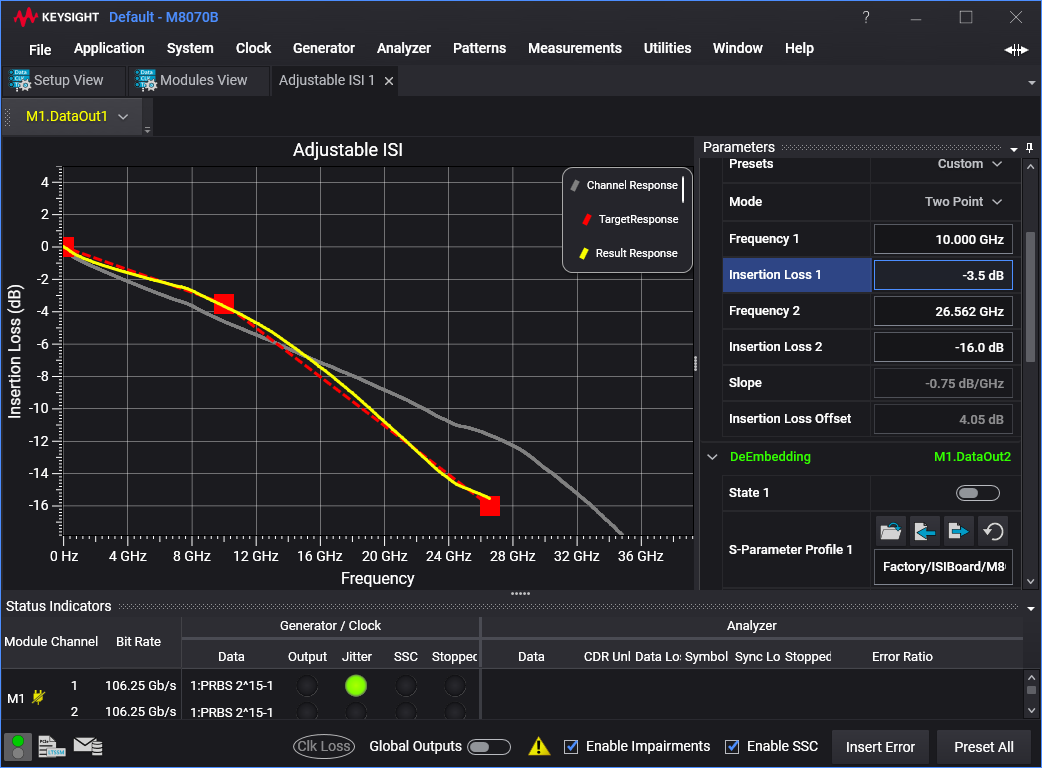

Two-points ISI adjustment with external ISI board
