15 MSa/s, 1 pA/100 fA, 60 V, 3.5 A DC/10.5 A pulse
Introduction

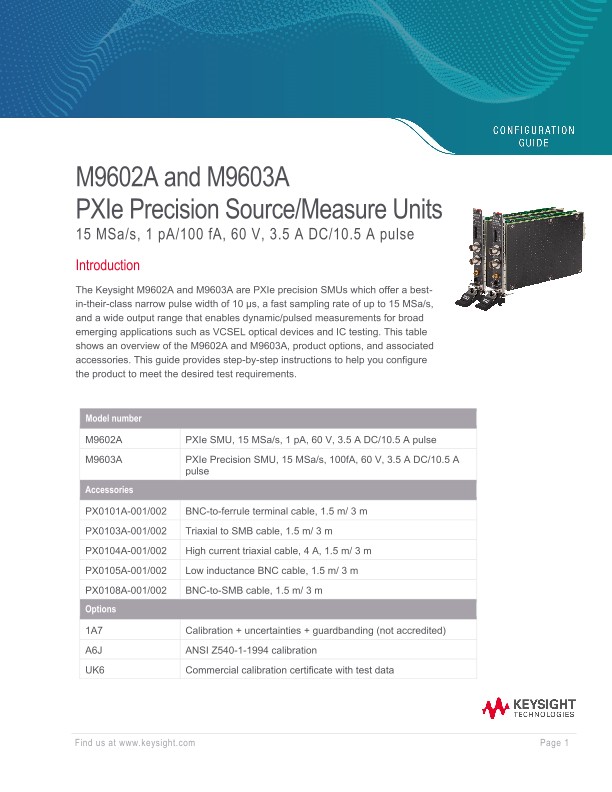

The Keysight M9602A and M9603A are PXIe precision SMUs which offer a bestin-their-class narrow pulse width of 10 μs, a fast sampling rate of up to 15 MSa/s, and a wide output range that enables dynamic/pulsed measurements for broad emerging applications such as VCSEL optical devices and IC testing. This table shows an overview of the M9602A and M9603A, product options, and associated accessories. This guide provides step-by-step instructions to help you configure the product to meet the desired test requirements.
Configuring Your Keysight M9602A/M9603A Precision SMU
Step 1. Define the required number of M9602A/M9603A modules
You need to define the required number of modules based on your application requirements.
Product number |
Required slots |
Number of channels |
Max. Voltage |
Max. Current (DC/pulse) |
Min. Voltage resolution |
Min. Current resolution |
Max. Sampling rate |
M9602A |
1 |
1 |
60 V |
3.5 A/10.5 A |
6 μV |
1 pA |
15 MSa/s |
|
|
||||||
M9603A |
|
|
|
|
|
100 fA |
|
The following items come as standard with each M9602A/M9603A PXIe precision SMU module:
|
Qty. |
Additional information |
Quick startup poster |
1ea |
Printed reference for quick startup (English) |
Certificate of calibration (without test data) |
1ea |
Certificate of calibration (without actual test data). If you need the test data, please specify option UK6. |
Short bar |
1ea |
Short bar to connect low terminals to chassis common; orderable part number is M9601-87001 (includes 5 pcs.) |
Connector-terminal block 2.5 mm 6-terminal |
1ea |
Connector-terminal block to connect external trigger terminals and interlock terminal; orderable part number is M9601-87002 (includes 5 pcs.) |
Step 2. Select optional accessories
The following accessories are available for connection between M9602A and M9603A to your DUT.
Product number |
Description |
Note |
PX0101A-001/002 |
BNC-to-ferrule terminal cable, 1.5 m/ 3 m |
Trigger or interlock cable |
PX0103A-001/002 |
Triaxial to SMB cable, 1.5 m/ 3 m |
Low sense cable |
PX0104A-001/002 |
High current triaxial cable, 4 A, 1.5 m/ 3 m |
Standard high force and high sense triaxial cable |
PX0105A-001/002 |
Low inductance BNC cable, 1.5 m/ 3 m |
High force cable for narrow pulse less than 50 μs |
PX0108A-001/002 |
BNC-to-SMB cable, 1.5 m/ 3 m |
Low sense cable |
N1254A-106 |
Triaxial(m) to BNC(f) adaptor |
To connect PX0105A cable to high force triaxial terminals of SMU. |
×
