Measure Dynamic Current And Voltage With Confidence

IoT (Internet of Things) requires various devices to sense and process the data and to connect with the network. Accordingly, IoT increases the number of embedded electronic components dramatically. Characterizing the power rail current and voltage is critical to reveal how the device operates to improve the performance and optimize the circuit design to ensure reliability.

The Keysight CX3300 series is an all-in-one measurement and analysis solution to solve your power rail, power delivery network, and power integrity challenges. The CX3300 series integrates an oscilloscope’s bandwidth and sampling rate, a DMM’s sensitivity, and data logger’s extended duration measurement recording to reveal accurate current and voltage waveforms.

Anomalous Waveform Analytics

Anomalous waveform analytics feature is a machine learning technology embedded in the Keysight CX3300 waveform analyzer. It helps you to capture repetitive voltage and current waveform exceeding a terabyte. You can immediately identify and analyze intermittent anomalous signals and events in the waveform that are not possible by manual analysis. Anomalous Waveform Analytics feature accelerates characterization, validation, and debugging on mainframe and PC.

View Brochure & Data Sheet

Explore the Solution

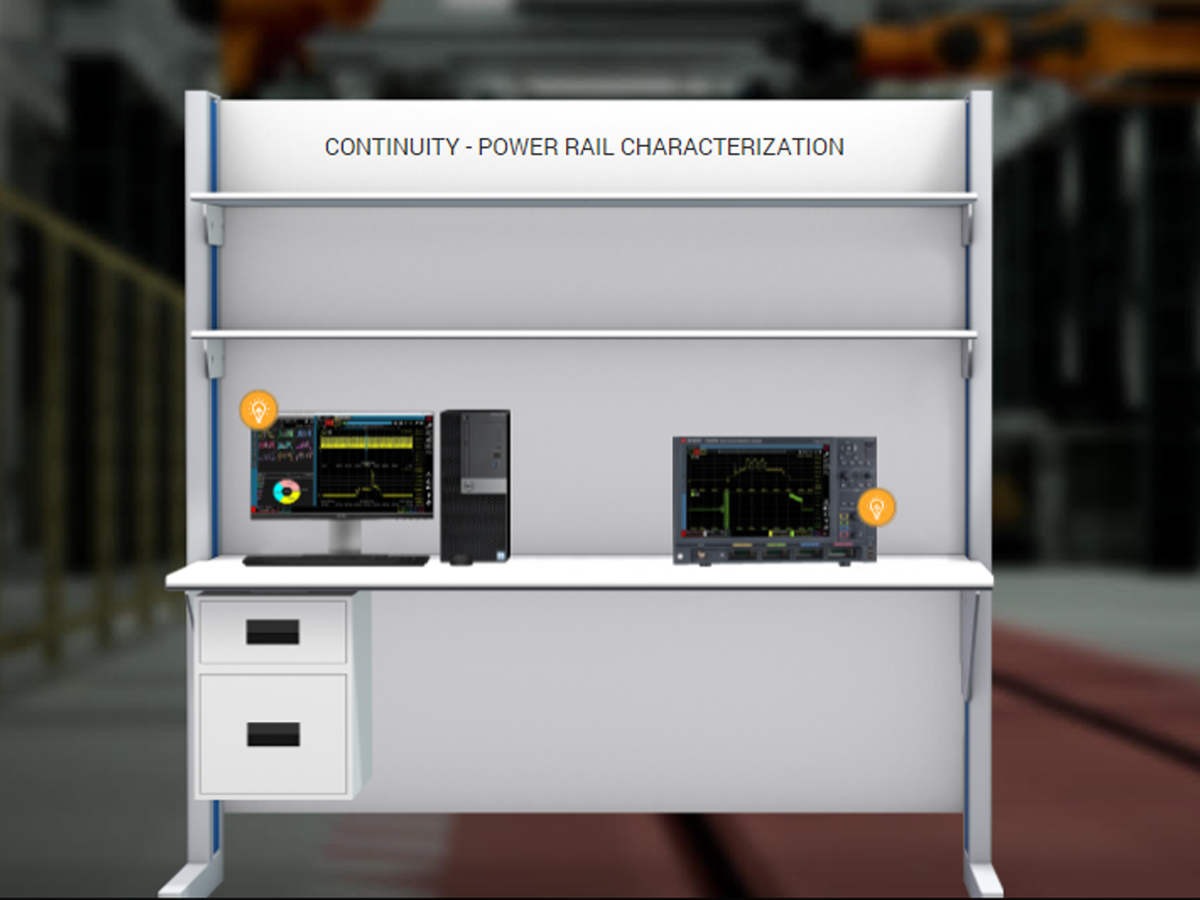

Get a closer look at the products that comprise this solution through 3D models and animation.

Learn More

Solve Measurement Challenges Faster And Easier

With its precision low-level dynamic current measurement capability at pA level and powerful waveform analytics features, you can:

  • Improve the device design and power consumption performance by accurate characterization
  • Ensure the device’s reliability by capturing rare anomalies during the long-duration operation
  • Shorten time-to-market of high-performance and high-reliability devices by quick anomalies identification and analysis from massive waveform data

Find The Model That's Right For You

Prev
CX3324A
Device Current Waveform Analyzer, 1 GSa/s, 14/16-bit, 4 Channel
Starting from
CX3324A is a 4-channel mainframe with 14-bit or 16-bit wide resolution. The memory depth and the bandwidth are upgradable up to 256 MSa/s and 200 MHz respectively. Digital channel is supported. The OS supports Windows 10.
CX3322A
Device Current Waveform Analyzer, 1 GSa/s, 14/16-bit, 2 Channel
Starting from
CX3322A is a 2-channel mainframe series with 14-bit or 16-bit resolution. The memory depth and the bandwidth is upgradable up to 256 MSa/s and 200 MHz respectively. The OS supports Windows 10.
ellipsis
View and Compare All Models
Next

Extend The Capabilities

Services
See All Services
Support
See All Support

Featured Resources

Data Sheets 2021.06.22

CX3300A Series Device Current Waveform Analyzer

CX3300A Series Device Current Waveform Analyzer

The Keysight 34461A offers a way to get insight into your measurement data without transferring your data to a PC.

2021.06.22

Technical Overviews 2020.01.21

CX3300A Anomalous Waveform Analytics

CX3300A Anomalous Waveform Analytics

This flyer describes the solution of anomaly signal detection using CX3300A's new anomalous waveform analytics.

2020.01.21

Application Notes 2021.07.27

7 Hints for Precise Current Measurements

7 Hints for Precise Current Measurements

This application note explains 7 hints that can be undertaken in order to obtain more favorable current measurement with the CX3300.

2021.07.27

Product Fact Sheets 2021.05.31

Accelerate Electret-Based Energy Harvesters Development with Precision Low-Level Dynamic Current Evaluation

Accelerate Electret-Based Energy Harvesters Development with Precision Low-Level Dynamic Current Evaluation

You can accelerate the development of electret-based energy harvesters with downsizing, low-power consumption, and high-reliability using Keysight CX3300A and its powerful waveform analytics features.

2021.05.31

Case Studies 2021.07.01

Accelerate the Development of Advanced Wearable Devices

Accelerate the Development of Advanced Wearable Devices

A world-leading multinational semiconductor company chose Keysight CX3300 Series Device Current Waveform Analyzer to accelerate the development of advanced wearable devices with high performance, high reliability, and long-life batteries.

2021.07.01

Application Notes 2021.08.16

Non-Volatile Memory Devices Characterization

Non-Volatile Memory Devices Characterization

See how the Keysight CX3300 enables you to easily and accurately visualize true transient current waveform of non-volatile memory devices and materials.

2021.08.16

Application Notes 2019.02.12

The CX3300 Unveils Current Waveform Never Seen by Conventional Current Probes

The CX3300 Unveils Current Waveform Never Seen by Conventional Current Probes

The CX3300A enables a wide range of precision current waveform measurements that have been difficult to obtain using a conventional current probe.

2019.02.12

Application Notes 2018.04.08

Accelerate the development of Next Generation Non-Volatile Memory

Accelerate the development of Next Generation Non-Volatile Memory

You can accelerate the development of next generation non voltile memory; CX3300 series for visualizing the fast switching characteristics, B1500A for basic IV,CV,pulsed IV and reliability testing.

2018.04.08

User Manuals 2021.07.06

User's Guide for CX3300 Series Device Current Waveform Analyzer

User's Guide for CX3300 Series Device Current Waveform Analyzer

Describes the front panel operation, installation, and functions of Keysight CX3300 Series Device Current Waveform Analyzer

2021.07.06

User Manuals 2019.12.23

User's Guide for CX1100 Series Accessories for CX3300

User's Guide for CX1100 Series Accessories for CX3300

Describes accessories for the CX3300 series Device Current Wavefom Analyzer.

2019.12.23

View All Resources

View All Resources

Related Products

CX1101A Single Channel, ±40 V, 100 MHz, 40 nA – 1 A

CX1101A Single Channel, ±40 V, 100 MHz, 40 nA – 1 A

The CX1101A single channel current sensor is a dedicated accessory for the CX3300 series mainframe and features wide common mode voltage range. The maximum current can be expanded to 10 A using a CX1206A.

CX1102A Dual Channel, ±12 V, 100 MHz, 40 nA – 1 A

CX1102A Dual Channel, ±12 V, 100 MHz, 40 nA – 1 A

The CX1102A dual channel current sensor is a dedicated accessory for the CX3300 series mainframe and features wide dynamic measurement ranges due to the simultaneous capture technology.

CX1103A Low Side, 200 MHz, 100 pA – 20 mA

CX1103A Low Side, 200 MHz, 100 pA – 20 mA

The CX1103A low side current sensor is a dedicated accessory for the CX3300 series mainframe and features the series widest stand-alone bandwidth up to 200 MHz.

CX1104A Current Sensor, Selectable Resistive Sensor Head, ±40 V, 20 MHz

CX1104A Current Sensor, Selectable Resistive Sensor Head, ±40 V, 20 MHz

The CX1104A selectable shunt current sensor is a dedicated accessory for the CX3300 series and enables dynamic current measurements from 1 μA to 15 A up to 20 MHz bandwidth with an available calibrated resistive sensor head attached.

CX1105A Differential Sensor, Wide Dynamic Range, 100 MHz

CX1105A Differential Sensor, Wide Dynamic Range, 100 MHz

The CX1105A ultra-low noise differential sensor is a dedicated accessory for the CX3300 series and enables dynamic current measurements from 1 μA to 100 A under up to 100 MHz bandwidth with existing shunt resistors on your test board.

CX3300APPC Current Waveform Analytics Software

CX3300APPC Current Waveform Analytics Software

CX3300APPC current waveform analytics software provides the all analysis capabilities of CX3300A offline. It enables the post-measurement analysis tasks without the instrument and accelerates the entire R&D process.

N2787A 3D Probe Positioner

N2787A 3D Probe Positioner

Achieve stable 3D probe positioning for hard-to-reach XYZ access with this flexible articulating arm.

N2843A Passive Probe, 10:1, 500 MHz, 1.2 m

N2843A Passive Probe, 10:1, 500 MHz, 1.2 m

Features a high input resistance of 10 MΩ; can be adjusted for low-frequency and high-frequency compensation.
