Highlights

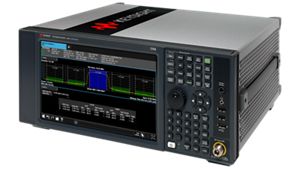

Design, Test, and Educate with an Intuitive and Cost-Effective Benchtop Signal Analysis Platform

Engineering is all about connecting ideas and solving problems. The accessible performance of the CXA signal analyzer is today’s leading cost-effective tool for essential signal characterization. Its capabilities provide a solid foundation for testing in general-purpose and educational applications. It helps you find the answer faster; whether you’re looking for quick verification in manufactured devices or demonstrating lab tutorials.

  • See more with a wide frequency range of 9 kHz to 26.5 GHz with up to 25 MHz analysis bandwidth
  • Add dependable signal analysis to manual and automated manufacturing test systems
  • Perform essential measurements such as spur searches and distortion analysis
  • Take stimulus-response measurements with the optional built-in tracking generator
  • Add crucial functionality with X-Series measurement applications
  • Enhance theory with practical skills using a training kit in your RF and microwave education lab

Streamline Fundamental Power Measurements with the CXA Signal Analyzer

In any wireless design, it is critical to accurately measure the power of digitally modulated signals to maximize the capacity of the system and improve the quality of communication. Make nine different power measurements in seconds with the CXA and PowerSuite.

KEY SPECIFICATIONS

Frequência
9 kHz to 26.5 GHz
DANL @1 GHz
-163 dBm
Análise máxima de largura de banda
25 MHz
Largura de banda máxima em tempo real
n/a
Ruído de fase @1 GHz (10 kHz offset)
-110 dBc/Hz
Type
Bancada
Frequência
DANL @1 GHz
Análise máxima de largura de banda
Largura de banda máxima em tempo real
Ruído de fase @1 GHz (10 kHz offset)
Type
9 kHz to 26.5 GHz
-163 dBm
25 MHz
n/a
-110 dBc/Hz
Bancada
Visualizar mais
Opções de largura de band:
10 padrão. 25 MHz
DANL @1 GHz:
-163 dBm
Frequência:
9 kHz to 26.5 GHz
Opções de frequência:
3.0, 7.5, 13.6, 26.5 GHz
Análise máxima de largura de banda:
25 MHz
Largura de banda máxima em tempo real:
n/a
Precisão da amplitude geral:
±0.50 dB
Nível de desempenho:
◆◆◇◇◇◇
Ruído de fase @1 GHz (10 kHz offset):
-110 dBc/Hz
Type:
Bancada
TOI @1 GHz (3rd Order Intercept):
+12 dBm

X-SERIES APPLICATIONS — SIMPLIFY MEASUREMENTS AND DELIVER REPEATABLE RESULTS

Understand the performance of your cellular, wireless, and aerospace/defense devices and designs with downloadable X-Series applications.

  • Gain more insight into device performance from parametric measurements to the latest standards-compliant wireless measurements including LTE and WLAN
  • Speed your time-to-insight with integrated applications that put consistent measurements at your fingertips
  • Speed time-to-market with the same measurements leveraged across design, validation, and production
  • Leverage built-in measurement expertise to quickly understand signals and device performance
  • Share applications across multiple instruments with available transportable licenses

Standard Configurations
