• Powerful and flexible capability: Basic measurements are built in, and you can add packages as needed.
• Consistent results: Use in design to simulate and analyze signals, in the lab to characterize prototypes, and in production and support to operate equipment remotely.

In addition to the data acquisition and basic measurement capabilities the N1010A FlexDCA software provides, Keysight offers a large selection of software tools with powerful capabilities:

• N1010100A, research and development package for the FlexDCA sampling oscilloscope software: This package is intended for R&D engineers who want to characterize their designs and gain more insight into why a signal deviates from the expected performance. It includes FlexRT Advanced for optical measurements on UXR-Series Oscilloscopes.
• N1010200A, manufacturing package for the FlexDCA sampling oscilloscope software: This package focuses on cost of test in optical transceiver manufacturing applications with capabilities such as FlexEye that enhance measurement flexibility. It includes measurements such as TDECQ and FlexRT Basic for optical measurements on UXR-Series Oscilloscopes.
• N1010300A, signal integrity package for the FlexDCA sampling oscilloscope software: This package adds powerful tools to measure impedances, transfer characteristics, S-parameter calculations to the basic TDR / TDT measurements, and FlexPLL for phase-locked loop measurements.
• FlexOTO, FlexOTO software is designed for high optical lane count testing on 800G/1.6T and multi-channel applications to improve test efficiency and increase utilization of DCA-M hardware without compromising measurement integrity.

For a mapping of legacy FlexDCA feature-based options to each of the software packages available, refer to DCA Configuration Guide under N1010x00A Analysis Packages mapping table.

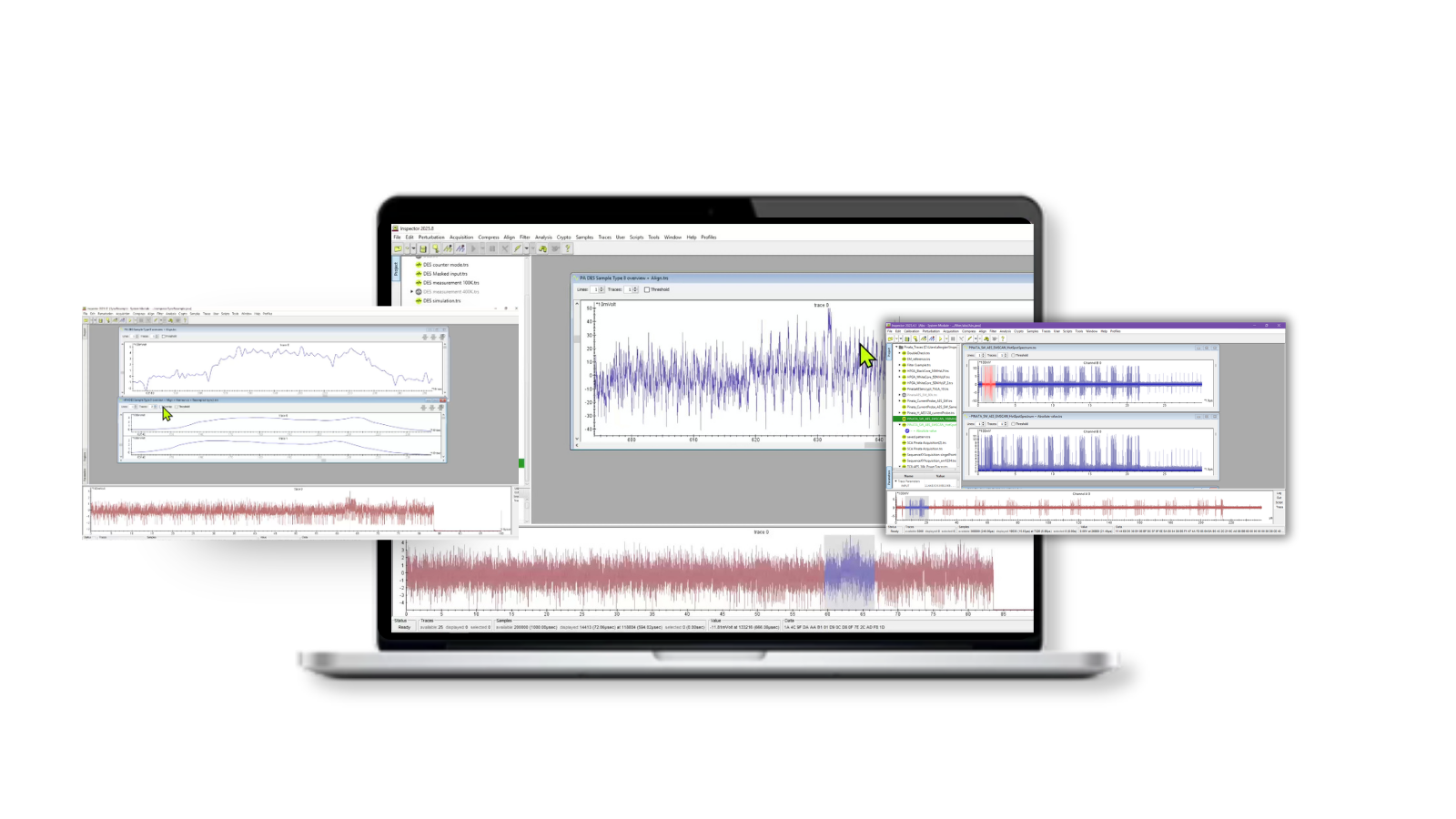

DS2201A Inspector Acquisition and Signal Processing helps security teams efficiently capture, prepare, and manage the measurement data required for reliable side-channel analysis.

Inspector brings acquisition, hardware interaction, signal processing, and trace management into a structured workflow. Users can collect power and electromagnetic measurements, prepare traces for subsequent analysis, and efficiently manage large datasets. Flexible acquisition options and trace-processing capabilities help teams establish consistent datasets before moving into leakage assessment and advanced cryptographic analysis.

• Control and streamline side-channel data acquisition across supported measurement hardware and test setups.
• Acquire high-quality power and electromagnetic measurements from security-critical embedded devices.
• Prepare raw measurement traces for analysis using editing operations such as trimming, padding, reversing, and negating.
• Manage large trace datasets efficiently with capabilities for exporting, splitting, mixing, sorting, and transposing data.
• Assess and recover measurement traces to improve data quality before advanced analysis.
• Support multiple acquisition workflows, including oscilloscope, simulation, XY, and legacy acquisition environments.
• Create consistent, analysis-ready datasets that provide a reliable foundation for leakage assessment and cryptographic analysis.
• Reduce repetitive data preparation tasks through an integrated acquisition and signal-processing workflow.
• Support both power and electromagnetic side-channel analysis within a common software environment.
• Build a scalable foundation for advanced Inspector analysis, enabling teams to progress from signal acquisition into deeper statistical and cryptographic evaluation.

DS2203A Inspector Analysis Premium delivers the most advanced analysis capabilities within the Inspector SCA portfolio, helping security teams investigate complex implementations, automate evaluation workflows, and uncover vulnerabilities beyond conventional analysis techniques.

Building on all capabilities included with DS2202A Inspector Analysis Professional, the Premium edition adds advanced cryptographic attacks, pattern detection, workflow automation, enhanced signal processing, and trace manipulation capabilities. These tools help experienced evaluators address increasingly sophisticated countermeasures and efficiently analyze complex or large-scale datasets.

• Build on the complete Analysis Professional toolkit with additional capabilities for advanced security evaluations.
• Perform advanced cryptographic attacks, including AES second-order, RSA high-order and neighbor correlation, ECC partial nonce, DES masked input, and collision attacks.
• Apply deep learning-based analysis to investigate complex leakage patterns and advanced cryptographic implementations.
• Detect and extract complex signal patterns with Pattern Match, Pattern Extract, Enhanced Pattern Detection, Multi-Advanced Pattern Detection, and Cross-Correlation capabilities.
• Automate advanced evaluation workflows using workflow automation and configurable signal-processing pipelines.
• Improve trace alignment and consistency with dynamic alignment, elastic alignment, round alignment, and Crystal-Clear Correction capabilities.
• Analyze complex signal behavior using harmonics analysis and notch filtering.
• Scale analysis across large datasets with advanced trace manipulation and augmentation capabilities.
• Accelerate computationally intensive workflows using optimized processing capabilities for supported Keysight PXI-based environments.
• Investigate highly protected implementations that may require techniques beyond conventional statistical and cryptographic analysis.
• Increase repeatability across advanced evaluations by combining automation, analysis, and signal processing within a structured Inspector workflow.
• Support high-assurance security validation, certification, and research with advanced analysis capabilities designed for demanding evaluation environments.

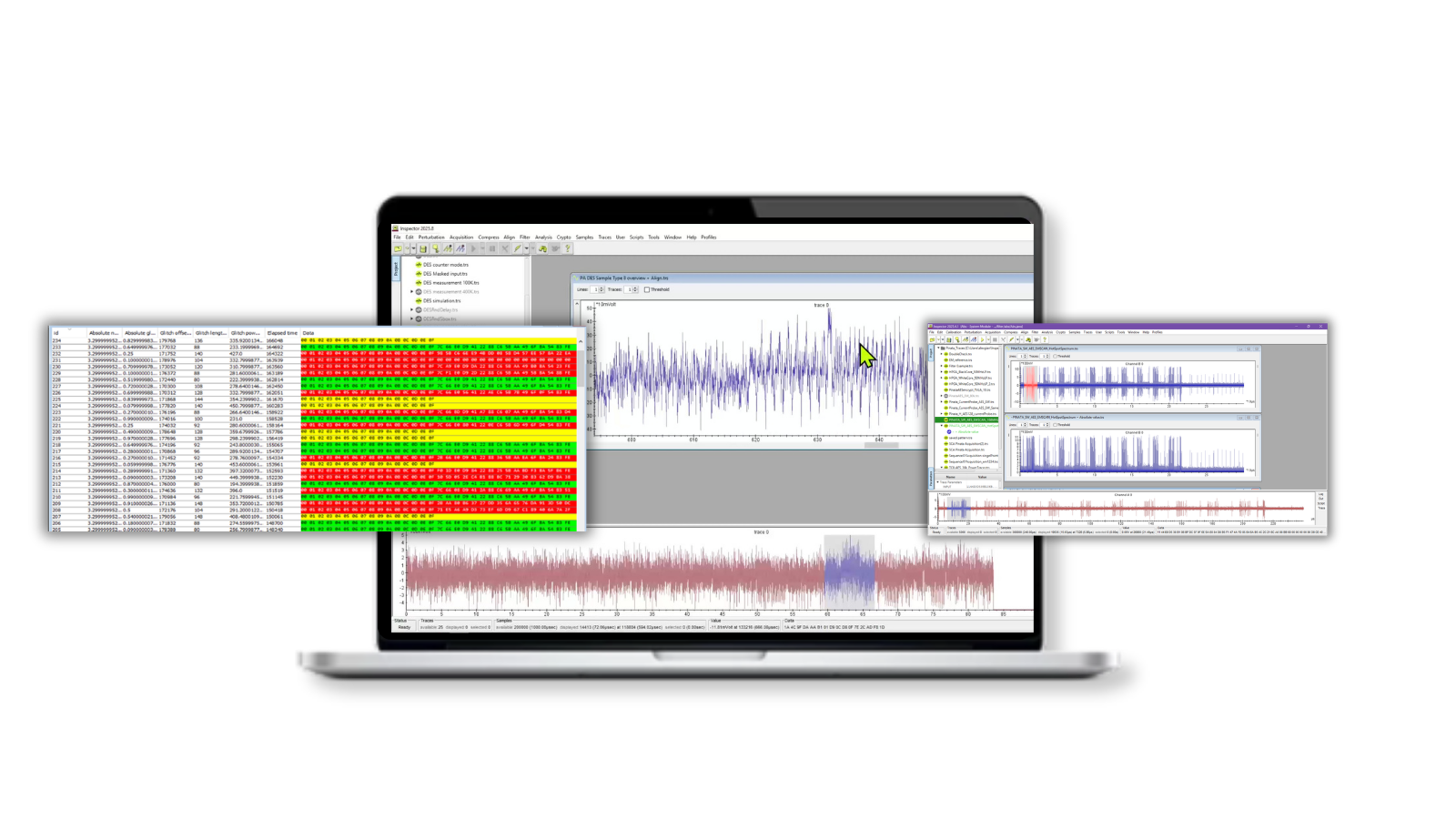

DS2101A Inspector Fault Injection helps security teams automate complex fault injection campaigns, coordinate diverse test hardware, and efficiently identify fault conditions that may expose security vulnerabilities.

Supporting voltage, clock, electromagnetic, and laser fault injection workflows, Inspector provides a common software environment for configuring attack parameters, controlling hardware, executing campaigns, and analyzing results. AI-assisted parameter exploration helps teams navigate complex test spaces more efficiently, while cryptographic analysis capabilities support deeper investigation of successful faults and their potential security impact.

• Automate complex fault injection campaigns to reduce repetitive manual testing and improve evaluation efficiency.
• Support multiple fault injection methodologies, including Voltage Fault Injection (VFI), Clock Fault Injection (CFI), Electromagnetic Fault Injection (EMFI), and Laser Fault Injection (LFI).
• Explore large fault parameter spaces efficiently using AI-assisted parameter exploration to accelerate vulnerability discovery.
• Coordinate fault injection hardware through a unified environment for more consistent and repeatable testing workflows.
• Configure single and double fault injection scenarios to support increasingly advanced security evaluations.
• Perform cryptographic Differential Fault Analysis (DFA) for AES, DES, and RSA CRT implementations.
• Identify fault-sensitive behavior and successful attack conditions using dedicated analysis capabilities, including Unique Data Analysis and FI Spotlight.
• Integrate hardware tooling for workflows involving IC Waves, Transceiver, XYZ Calibration, and Camera functionality.
• Improve repeatability and scalability by managing test configuration, execution, and analysis within a structured software workflow.
• Validate security countermeasures by systematically testing device behavior across different fault conditions and parameter combinations.
• Support certification preparation and security validation through consistent, documented, and repeatable evaluation workflows.
• Scale from targeted experiments to larger automated campaigns as evaluation requirements become more complex.

DS2202A Inspector Analysis Professional provides security teams with a comprehensive set of analysis capabilities for detecting leakage, investigating vulnerabilities, and validating cryptographic implementations.

Building on acquired and prepared measurement data, Inspector brings statistical analysis, spectral analysis, cryptographic evaluation, signal processing, and trace management into a structured environment. Ready-to-use capabilities help teams move efficiently from measurement data to security conclusions while maintaining consistent and repeatable evaluation workflows across projects.

• Detect and assess side-channel leakage using statistical analysis techniques such as correlation, distribution, standard deviation, and auto-correlation.
• Evaluate leakage across the frequency domain with spectrum, spectrogram, frequency-band decomposition, and spectral integration capabilities.
• Perform structured leakage assessments using established methodologies such as TVLA t-test.
• Validate cryptographic implementations with dedicated analysis tools, including Known Key Analysis, Crypto Calculator, and Verification capabilities.
• Investigate fault-related cryptographic behavior using integrated Fault Analysis functionality.
• Prepare complex measurement data for analysis with resampling, low-pass filtering, moving averages, alignment, and trace stretching.
• Improve trace consistency and analysis quality through dedicated signal-processing capabilities.
• Import and manage measurement traces from supported acquisition workflows for further security analysis.
• Reduce the need to develop analysis methods from scratch with ready-to-use analysis capabilities integrated into Inspector.
• Support repeatable security evaluations across development, vulnerability assessment, countermeasure validation, and certification preparation.
• Provide a structured path into advanced side-channel analysis for teams building their security expertise while supporting the needs of experienced evaluators.
