How To Connect An Oscilloscope to a Circuit

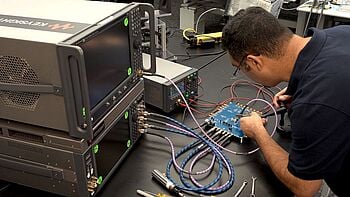

You’re on the bench, trying to track down a voltage spike in a power supply circuit. The oscilloscope is powered up, you clip on the probe, and… the waveform looks nothing like what you expected.
It’s noisy, inconsistent, or flat-out wrong. You double-check your code, your components, maybe even swap in a new board, but the signal still doesn’t make sense.
This happens more often than you think and the issue usually comes down to how the oscilloscope is connected. A long ground lead, a mismatched probe, or an overlooked setting can introduce errors that throw off your entire measurement.
In this guide, you’ll learn how to connect your oscilloscope to a circuit the right way. We’ll walk through each step so you can avoid common mistakes and get accurate, repeatable readings. Whether you're troubleshooting a switching regulator, probing a digital bus, or validating a design, proper connection technique makes all the difference.

Before you connect an oscilloscope to any circuit, it's important to understand how the instrument works. An oscilloscope is a powerful tool that measures and displays voltage over time, allowing you to visualize an electrical signal's behavior in real time.

The oscilloscope screen shows waveforms, graphical representations of how voltage changes, so you can analyze key characteristics like amplitude, frequency, rise time, and noise.
Different types of oscilloscopes, such as digital storage, mixed-signal, or handheld models, offer varying capabilities in bandwidth, channel count, and triggering features. Selecting the right type depends on your application needs and the complexity of the input signals you expect to measure.
Getting accurate results depends not only on the scope itself but also on how you use it. Factors like signal type, bandwidth, and probe selection all affect the measurement. For a deeper look at how signals appear on-screen, see Keysight’s guide on what is an oscilloscope waveform.

To operate an oscilloscope correctly, you need to understand its core components:

• Probes: These connect the instrument to your test point. The type of probe (passive, active, or current) determines what kinds of signals you can measure. Learn more about current probes and when to use them.
• Input channels: Let you measure and compare multiple signals at once, typically 2–4 channels on most benchtop scopes.
• Display screen: Visualizes voltage over time. Modern digital scopes offer measurement overlays, cursors, and signal math functions.
• Triggering system: Tells the scope when to begin displaying the signal. This helps stabilize repeating waveforms and isolate specific events. Learn more about oscilloscope triggering.

Oscilloscopes take analog voltage inputs and convert them into a visual format. The vertical axis represents voltage, while the horizontal axis shows time. Internally, the scope samples the signal and plots the data as a waveform.
By reading this waveform, you can troubleshoot erratic behavior, verify circuit performance, or evaluate signal quality. If you want to brush up on the fundamentals, check out Keysight’s overview on what is an oscilloscope signal.

Oscilloscopes play a critical role in many fields:

• Automotive: Engineers use scopes to measure sensor signals, debug CAN or LIN buses, and monitor ignition or fuel system behavior. Keysight provides a focused look at automotive oscilloscope applications.
• RF and wireless: Signal integrity and bandwidth matter when capturing modulated RF signals. Oscilloscopes help validate frequency stability and signal envelope.
• Embedded systems: Scopes are vital for monitoring I/O lines, validating clock signals, or troubleshooting serial communication protocols like SPI or UART.
• Power electronics: You can visualize switching behavior, ripple, and transient response across voltage regulators and power converters.

In each of these use cases, maintaining signal integrity is critical. A good measurement setup, right down to the probe and grounding technique, makes the difference between noise and clarity.

Comparison of Different Oscilloscope Types

For any application, selecting the right oscilloscope bandwidth is essential. If you are unsure how much you need, Keysight's overview of oscilloscope bandwidth provides a solid starting point.

Proper preparation is essential before connecting an oscilloscope to any live circuit. A few quick checks can prevent common issues like inaccurate readings, signal distortion, or equipment damage.

Engineers often overlook basic setup steps, assuming the oscilloscope will “just work” out of the box. But poor configuration, incorrect probe selection, or unsafe grounding can lead to misleading results or even fried components.
Before making a connection, review your oscilloscope's specs and settings, double-check your test environment, and understand the circuit you’re probing. This helps you avoid costly mistakes and ensures you are capturing accurate, meaningful data.
If you are still evaluating instruments or accessories, this guide to oscilloscope features outlines what to look for based on your application.

Safety should always come first. Even low-voltage circuits can produce unexpected spikes or floating grounds that damage your scope or board.

Always power down the circuit when possible, discharge any stored energy (such as in capacitors), and verify probe condition before attaching it to sensitive points.
Other precautions include:

• Never connect an oscilloscope ground to a live voltage reference.
• Avoid measuring high-energy nodes without the proper attenuation or probe rating.
• Use personal protective equipment (PPE) when working around high-voltage systems.

Choosing the wrong probe can introduce measurement errors or exceed the input range of your oscilloscope. Always match the probe’s voltage rating, bandwidth, and attenuation to the circuit you're testing. For example:

• Passive probes work well for general-purpose measurements under 600V.
• Active probes are better for high-speed or low-voltage differential signals.
• Current probes are needed for non-intrusive current measurements.

For a deeper look at probe voltage scaling, read Keysight’s explanation of attenuation and what it means for oscilloscope input protection.

Before connecting the probe to the circuit, configure your oscilloscope to match the expected signal type. Start with a conservative setup, then fine-tune as needed once you see the waveform.
Here’s a quick checklist:

• Set an appropriate voltage range to avoid overloading the input.
• Adjust the time base to capture one or more full cycles of the expected waveform.
• Configure the trigger mode and level to stabilize the display.
• Select the correct input coupling (DC, AC, or ground) based on the signal.

For more context, see this overview of oscilloscope coupling settings.

Important Safety Considerations

• Verify probe and oscilloscope ratings match the circuit.
• Inspect cables and connectors for wear or damage.
• Avoid long ground leads, they act like antennas for noise.
• Never touch exposed conductors while probing.
• If unsure, start with the highest attenuation setting available.

Taking these steps before connecting your oscilloscope will ensure safe, clean, and reliable signal capture, especially when working with sensitive or complex circuits.

To get accurate, repeatable measurements, you need more than just a powered-on oscilloscope. Following a structured connection process helps you avoid distortion, noise, and misreadings especially in sensitive or high-speed circuits.

Whether you are testing microcontroller outputs or monitoring switching power supplies, this guide outlines the right way to connect your oscilloscope for reliable signal capture.
You can also refer to Keysight’s used oscilloscope buying guide if you're still selecting equipment or accessories.

1. Identify the test points that need to be measured.
2. Select the correct oscilloscope probe for the circuit.
3. Securely attach the probe to the oscilloscope input and test point.
4. Use a ground clip to make a proper ground connection to reduce interference.
5. Adjust the oscilloscope settings for optimal signal capture.
6. Stabilize and analyze the waveform using oscilloscope controls.
7. Verify signal accuracy and apply noise reduction techniques if necessary.
8. Save or document waveform data for future analysis.

Start by reviewing your circuit to determine which signals you need to observe. These could include:

• Power rails, to check voltage stability or ripple.
• Signal paths, to verify timing or waveform shape.
• Microcontroller I/O pins, for debugging digital logic.

Choose test points that provide meaningful insight and minimize noise pickup. Avoid probing near large inductive loads or switching regulators unless you’re specifically testing those components.

Use the Auto-Set function to quickly display a stable waveform, or fine-tune manually for better resolution. To analyze the signal:

• Use cursors to measure rise time, frequency, or pulse width.
• Use built-in measurement tools for RMS voltage, peak-to-peak, or duty cycle.

Be sure to save the waveform or screenshot for documentation or later analysis.

Your oscilloscope is only as accurate as the probe you connect to it. Probe selection directly impacts signal fidelity, noise levels, and overall measurement accuracy. The wrong probe can load your circuit, distort your waveform, or introduce bandwidth limitations that hide critical signal details.
Selecting the right probe means matching its electrical characteristics, such as bandwidth, input impedance, and attenuation factor, to the specific requirements of your circuit. For example, a high-speed digital signal requires a different probe than a power supply rail or a high-voltage switching node.

Passive probes are the most common and affordable option. They work well for general-purpose measurements, especially at lower frequencies (typically below 500 MHz). These probes use simple resistor-capacitor networks and are durable and easy to use.
Active probes contain built-in amplification and buffering electronics. They offer significantly higher bandwidth, lower capacitive loading, and better signal integrity. They are ideal for high-speed or low-voltage measurements in fast digital systems or analog RF circuits.
Active probes are typically more expensive and require power (often supplied by the oscilloscope). For applications involving digital signal processing, active probes help preserve waveform accuracy and timing.

Even experienced engineers can run into issues when setting up an oscilloscope, especially under time pressure.

Many signal anomalies and distorted waveforms aren’t caused by the circuit itself, but by incorrect setup or measurement technique. Missteps like poor grounding, using the wrong probe, or misconfigured settings can lead to inaccurate readings and wasted troubleshooting time.
To get reliable results, you need to avoid the most common connection pitfalls. That starts with understanding how to match probe type and oscilloscope settings to the signal you’re measuring. It also means grounding properly and verifying input configurations before capturing waveforms.
If you are working with unfamiliar instruments, take a moment to review the difference between analog and digital oscilloscopes, each has different capabilities and limitations.
And when buying used test gear, don’t forget, as Erica from Keysight explains, “Only KS offers warranty on used equipment. Other resellers don’t. If they are cheaper, they may be cheaper for a reason.”

Using the wrong probe can introduce measurement errors or overload the scope’s input. A passive probe may lack the bandwidth for high-speed digital signals, while an active probe may be overkill (and expensive) for low-frequency measurements.
Always match the probe to your signal type, frequency, and voltage level. Also verify the attenuation setting matches your oscilloscope’s channel configuration; 10:1 probes are common, but 1:1 may be used for low-voltage signals. Incorrect pairing can cause under- or over-ranging and waveform distortion.

A poor ground connection introduces noise, increases signal ringing, and skews waveform accuracy. Common mistakes include:

• Using long ground leads that act as antennas
• Connecting to different ground potentials
• Probing floating systems without isolation

To avoid these issues, use the shortest ground connection possible and probe close to the reference point of the signal. In high-frequency or sensitive applications, consider differential or isolated probes for better results.

Once your oscilloscope is connected, fine-tuning the settings is key to capturing clean, accurate measurements. Even a well-placed probe won’t deliver useful data if your display is unstable, your voltage range is off, or your time base misses key signal transitions.
Adjustments like proper triggering, voltage scaling, and noise filtering help you isolate the portion of the waveform you actually want to analyze. This is especially important for complex or modulated signals. For instance, if you are measuring amplitude modulation, incorrect settings can obscure critical variations in carrier and envelope behavior.
You can also use an oscilloscope and signal generator together for more advanced tasks like measuring inductance, which require precise timing and waveform capture.
Here are key adjustments to focus on.

Triggering stabilizes the waveform display. Without it, signals can appear to drift or flicker, making analysis difficult. Use:

• Edge triggering: Most common; triggers on rising or falling voltage edges.
• Pulse triggering: Useful for capturing signals with specific pulse widths.
• Video triggering: Ideal for analyzing composite video or scan-based waveforms.

Adjust trigger level and slope based on the part of the waveform you want to lock onto. Fine-tuning these settings makes repetitive signals stable and easier to measure.

To view your signal accurately:

• Set the vertical (voltage) scale so the waveform uses most of the display without clipping.
• Adjust the horizontal (time base) to show at least one or two full waveform cycles.
• Use fine adjustments to zoom in on transitions, glitches, or edges.

Avoid setting ranges too wide, as this can hide important details. Too narrow, and you may miss context.

Noise can come from your environment, your setup, or even your oscilloscope’s settings. To minimize it:

1. Enable bandwidth limiting to reduce high-frequency noise.
2. Use averaging or high-resolution acquisition modes to smooth out random variations.
3. Shorten probe ground leads or use probe tip adapters.
4. Switch to differential probes for high-noise or floating-ground environments.
5. Isolate your oscilloscope from power-line ground when needed (with proper safety practices).

Each of these techniques helps clean up your waveform and reveal the actual signal behavior underneath.

Steps to Optimize Oscilloscope Readings

1. Choose the correct probe and attenuation setting
2. Set vertical scale to fit the full waveform
3. Adjust time base to capture entire signal cycles
4. Configure trigger level and mode for stability
5. Enable bandwidth filtering or averaging if noise is present
6. Use cursors and math tools to extract precise measurements

Signal distortions—such as ringing, clipping, or slow rise/fall times—often result from incorrect probe selection or poor grounding. For example:

• Ringing may stem from excessive lead inductance.
• Clipping usually indicates a voltage range that’s too narrow.
• Flat waveforms could mean incorrect coupling or probe attenuation.

Check whether the signal shape matches expectations based on datasheets or simulation. Use averaging or bandwidth limiting to help isolate the signal from high-frequency noise.

If your waveform won’t stabilize, the issue likely lies in triggering:

• Use edge triggering on a rising or falling edge of the signal.
• Set the trigger level near the midpoint of the waveform.
• Switch to normal mode instead of auto if noise is causing false triggers.
• Verify probe connections; intermittent contact or loose clips can create erratic displays.

Always match your oscilloscope’s input specs to the signal source:

• Bandwidth should exceed the signal’s highest frequency.
• Input impedance must match or exceed the circuit’s tolerance.
• Max input voltage should cover expected signal peaks.

Mismatch between scope and signal can result in inaccurate readings or even damage.

Connecting an oscilloscope to a circuit involves more than just clipping a probe to a test point. Accurate signal analysis depends on choosing the right probe, grounding properly, fine-tuning oscilloscope settings, and understanding how your instrument interacts with the circuit under test.

From identifying clean test points to adjusting bandwidth and filtering noise, every step plays a role in the quality of your measurements.
Mistakes like using the wrong probe, ignoring compensation, or misconfiguring display settings can distort your waveform and mislead your analysis. But with the right technique and the right tools you can capture precise, reliable data and troubleshoot confidently.
