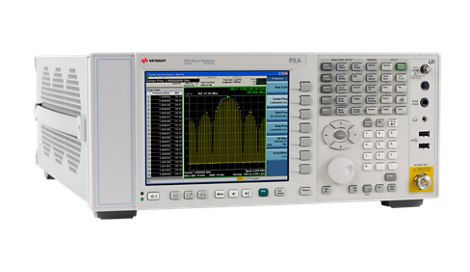

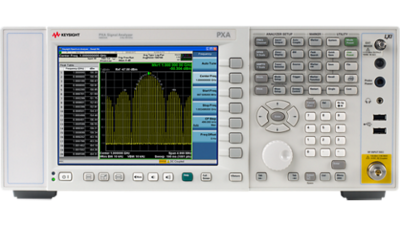

Used Keysight N9030A PXA Signal Analyzer 3 Hz to 50 GHz

Filters Noticeable Noise From Spectrum Measurements

• The low noise floor of analyzer is so accurately identified that it can achieve precise automatic subtraction from power and spectrum measurements.
• This new noise floor extension methodology changes the measurement noise floor by 3 to 10 dB adding to the overall speed and accuracy for smaller signals that are harder to detect. Another improved parameter is sensitivity due to the optional low noise input path of PXA.
• The direct in path brings the noise floor of analyzer to up to 10 dB at microwave frequencies for high DANL measurements.

Dynamic Solutions for Vector Signal Analysis

• The Agilent 89600 VSA software operates within the PXA or as an external resource via any of the remote interfaces. For practical migration and upgrades, new analyzers must smoothly fit into these current systems.
• The highly efficient PXA was built to introduce the advantages of a new analyzer into existing test systems that rely on older HP and Agilent spectrum analyzers.
• Through adaptable configuration, the PXA can also function as an informal substitute for a variety of analyzers, delivering an improvement in measurement throughput, supportability and test margins while reducing risk and migration periods

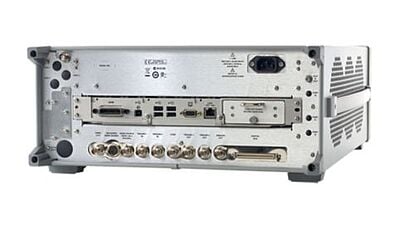

N9030A hardware

The PXA successfully avoids the need for a redesign of entire test systems. The N9030A adaptable hardware features such as Y-access video output, fast rise time video out and an innovative variable frequency IF output enable an easy and smooth migration. This seamless compatibility allows for reduced testing time, a decreased number of test stations and an improved throughput.

To strengthen data security practices, you can easily remove the analyzer's hard disk and temporarily replace it with another disk for unsecured operation or calibration. This makes safe handling of sensitive applications and instrument sanitizing easy. A
solid-state disk may also replace the hard disk. Simply remove the analyzer's CPU whenever upgrades are required. It utilizes Open Windows® XP Professional, enabling you to control any and all test system components and integrate software like MATLAB etc.

Up to 50 Times Faster Sweeping

Improving the sweep speed contributes positively to any signal analysis application, but especially supports signal monitoring, low-level spur searches and similar applications. Current customers may achieve sweep speed improvements by simply upgrading the firmware, and they are bundled with an instrument purchase. Such improvements in sweep speeds can be seen in resolution bandwidths of one kHz or greater, allowing for sweep speeds around 50 times faster as compared to the previous generation.

The N9030A PXA – advantages of an advanced signal analyzer.

It offers:

• Single-core, highly efficient processor, 4 GB RAM, removable solid-state drive
• Spectrum analyzer measurement applications
• Fine-step mechanical attenuator
• Digital processor with 2 GB capture memory
• 10 MHz bandwidth for analysis
• Fast sweep ability
• Enhanced phase noise
• Noise floor extension
• Low frequency extension
• Real-time link (40 MHz bandwidth)
• Precision frequency reference
