How Does a Multimeter Work

Multimeters come in various types, each tailored to specific applications and environments. Understanding these types is crucial for selecting the right tool for the job.

Digital multimeters (DMMs) and analog multimeters serve different purposes in electrical measurement.

Digital multimeters (DMMs) have become the preferred choice due to their accuracy and versatility in modern engineering tasks. They provide precise measurements with digital displays, making them suitable for both basic and advanced electrical measurements. Learn more about analog measurement technology and digital signal processing fundamentals.

Handheld multimeters are portable and ideal for fieldwork, offering flexibility and ease of use in various environments. They are battery-powered and designed for quick measurements on the go.
In contrast, benchtop multimeters are stationary instruments used in controlled lab environments where precision and stability are paramount. They often feature larger displays and advanced measurement capabilities suitable for detailed analyses.
A comparison table detailing their features and applications can be found below.

Understanding these distinctions helps engineers choose the right multimeter based on their specific needs, whether in the field or in the lab.

A multimeter is a fundamental tool in electrical engineering, offering versatile capabilities for measuring voltage, current, and resistance across various circuits. Understanding its internal components and operational principles is crucial for accurate electrical measurements.

• Display: Multimeters typically feature a digital LCD screen or traditional needle movement display. The display provides real-time readings of electrical parameters, ensuring clarity and precision in measurement results.
• Rotary dial: This component allows users to select different measurement modes. Engineers can switch between voltage, current, resistance, capacitance, frequency, and diode testing modes using the rotary dial, adapting the multimeter to specific measurement tasks.
• Input jacks: These are essential ports where test leads are connected. Test leads are probes that allow the multimeter to interact with the circuit being tested, transmitting electrical signals to the internal circuits for measurement.
• Internal circuits: Multimeters contain intricate internal circuits responsible for converting electrical signals into readable measurements. These circuits ensure that the measurements displayed on the multimeter are accurate and reliable.

• Voltage: Voltage measurement involves assessing the potential difference between two points in an electrical circuit. Multimeters use a precise method to calculate this difference, providing engineers with insights into circuit dynamics and voltage levels.
• Current: Measuring current requires the multimeter to utilize an internal shunt resistor. This component accurately measures the flow of electrical charge through the circuit, indicating the intensity of current passing through components.
• Resistance: Determining resistance involves the multimeter applying a known voltage and measuring the resulting current flow. By analyzing the voltage drop across a component, the multimeter calculates the resistance value, essential for diagnosing circuit issues and assessing component health.

For further insights into current measurement probe technology and how it enhances measurement accuracy, explore the details on current probes.

Multimeters are essential tools used by engineers to measure voltage, current, and resistance in electrical circuits. Understanding their principles of operation is crucial for accurate diagnostics and analysis.
Multimeters detect electrical parameters through internal components such as:

• Display: Shows measurement values, often using LCD screens or analog needle movements.
• Rotary dial: Selects measurement modes like voltage, current, or resistance.
• Input jacks: Connect test leads for probing circuits.
• Internal circuits: Convert electrical signals into readable measurements.

Ohm’s Law (V=IR) defines the relationship between voltage (V), current (I), and resistance (R). When using a multimeter, Ohm’s Law helps engineers calculate these parameters based on measured values.
For example, if voltage (V) across a resistor is known and the current (I) passing through it is measured, resistance (R) can be determined using R = V/I.
Engineers frequently use Ohm’s Law to diagnose circuit issues, calculate component values, or verify circuit integrity. It’s a fundamental tool for both troubleshooting and circuit design

AC (Alternating Current) and DC (Direct Current) exhibit distinct behaviors in circuits.

• AC: Alternates direction periodically, often in sinusoidal waveform, used in power distribution and motor systems.
• DC: Flows steadily in one direction, common in battery-powered devices and electronic circuits.

Multimeters differentiate between AC and DC measurements using different measurement techniques. For AC, multimeters use RMS (Root Mean Square) measurement to accurately depict the AC waveform’s effective value. DC measurements are straightforward due to the constant voltage or current flow.
Understand the relevance of analog signal characteristics in electrical circuits and how Radio Frequency (RF) relates to AC signal applications. This knowledge improves your understanding of multimeter applications in RF circuits.

Understanding the differences between AC and DC measurements is crucial for engineers working with electrical systems. Whether you are troubleshooting circuits or designing new electronics, choosing the right measurement mode ensures accurate readings for optimal performance and reliability.

Using a multimeter is essential for electrical engineers and technicians to measure voltage, current, and resistance. Follow these steps to make the most of your multimeter while prioritizing safety.

Before taking measurements, ensure your multimeter is set up correctly:

1. Select the correct mode: Turn the rotary dial to the desired measurement mode—voltage (V), current (A), or resistance (Ω).
2. Connect probes: Insert the red probe into the VΩmA port for voltage, resistance, and current measurements up to 10 amps. Insert the black probe into the COM port.

Follow these steps for each type of measurement:

• Voltage Measurement:

1. Set the multimeter to the voltage (V) mode.
2. Place the probes across the component or circuit where you want to measure voltage.
3. Read the voltage value displayed on the screen.

• Current Measurement:

1. Ensure the multimeter is set to the current (A) mode.
2. Break the circuit and connect the probes in series with the load.
3. Record the current reading displayed on the screen.

• Resistance Measurement:

1. Turn the multimeter to the resistance (Ω) mode.
2. Place the probes across the resistor or component to measure.
3. Note the resistance value shown on the display.

Common Mistakes to Avoid:

• Incorrect range selection
• Improper probe placement
• Forgetting to zero the multimeter before measurements

Ensure accurate readings with these tips:

• Auto-ranging vs. manual selection: Use auto-ranging for quick measurements across different ranges. Opt for manual selection when you need precise control over the measurement range.
• Troubleshooting Incorrect Readings:

1. Check probe connections
2. Verify the range setting
3. Ensure proper contact points

• Steps for Safe Measurement:

1. Always power off the circuit before connecting probes.
2. Use appropriate PPE (Personal Protective Equipment).
3. Double-check connections and settings before taking readings.

Using a multimeter requires attention to detail and an understanding of common pitfalls. Here are frequent mistakes and troubleshooting tips to resolve these issues.

These are common mistakes people often encounter when using a multimeter:

• Incorrect range selection: One of the most common errors is selecting the wrong measurement range. This can lead to inaccurate readings or even damage to the multimeter if the range is exceeded. Always set the multimeter to a range higher than the expected value to avoid overloading.
• Probe misplacement: Improper placement of probes on the circuit or component can affect measurement accuracy. Ensure the probes are correctly inserted into the designated ports and making good contact with the measurement points. Loose or poorly connected probes can result in fluctuating readings or no readings at all.
• Forgetting to zero: Failure to zero the multimeter before taking readings can introduce errors, especially in resistance measurements. Zeroing the meter involves shorting the probes together and pressing the zero or reset button to remove any residual voltage or resistance readings.

When encountering faulty readings, follow these troubleshooting steps:

• Diagnose faulty probes: Begin by inspecting the probes for visible damage or wear. Test the probes with a known voltage source to verify accuracy. If the probes are damaged, replace them promptly to ensure reliable measurements.
• Check batteries: Low battery voltage can lead to erratic readings or even failure to power on. Replace batteries regularly or use rechargeable batteries with sufficient charge to maintain accurate measurements.
• Inspect internal fuses: Multimeters have internal fuses that protect against current overload. If the multimeter stops working or displays erratic behavior, check the internal fuses using a continuity test function. Replace blown fuses with ones of the correct rating to restore proper functionality.

Calibration and proper maintenance are crucial for ensuring the accuracy and reliability of your multimeter over time. This section covers why calibration is important and practical tips for maintaining your multimeter.

Calibration ensures that a multimeter’s measurements are accurate by comparing them to a known standard. Over time, factors like usage, environmental conditions, and aging components can affect the accuracy. Regular calibration ensures that measurements remain precise and consistent, which is vital for engineering tasks that require reliable data.
Environmental factors such as humidity, temperature variations, and dust can impact the accuracy of multimeter readings. Fluctuations in these conditions can alter electronic components and affect measurement accuracy. Therefore, storing multimeters in controlled environments and performing regular calibrations are necessary to maintain accuracy.

To calibrate your multimeter:

1. Verify accuracy: Compare measurements against a reference standard or certified calibration source.
2. Adjust settings: Use calibration adjustments or trimmers as specified in the manual to correct any deviations.
3. Test accuracy: Confirm calibration by rechecking measurements after adjustment.

Using a stable and known reference voltage source is critical during calibration to ensure precise adjustments.

To extend your multimeter’s lifespan:

• Clean probes: Regularly clean probes and connectors to remove dirt or oxidation that can affect contact and accuracy.
• Replace batteries: Ensure batteries are fresh or fully charged to maintain reliable power for accurate readings.
• Controlled storage: Store multimeters in dry, temperature-controlled environments to prevent exposure to extreme conditions that can impact performance.

Following these maintenance practices helps maximize the lifespan and accuracy of your multimeter, ensuring it remains a trusted tool for electrical measurements. Ensure your multimeter maintains peak accuracy with Keysight’s professional calibration services.

Advanced multimeters offer a range of functions that are indispensable for professional engineers in troubleshooting and circuit diagnostics.

True RMS (Root Mean Square) multimeters are essential for accurately measuring AC signals, particularly non-sinusoidal waveforms.
Unlike average RMS multimeters, which assume a perfect sinusoidal waveform, True RMS multimeters calculate the effective value of any waveform, providing accurate readings regardless of waveform shape. This capability is essential in industries where precise measurement of AC signals, such as inverter-driven motors or variable-speed drives, is critical for system performance and reliability.
For detailed insights into the complexities of RLC circuits and their applications in advanced circuit testing, refer to this link.

Multimeters are versatile tools for diagnosing circuit issues and ensuring proper functionality. Key applications include:

• Continuity testing: Verifying the integrity of electrical paths to identify open or short circuits. Audible continuity indicators simplify testing in complex circuits.
• Diagnosing faulty components: Multimeters aid in pinpointing faulty resistors, capacitors, and diodes by measuring their resistance, capacitance, and forward voltage drop, respectively.
• Voltage drop testing: Identifying excessive voltage drops across connections or components, indicating potential issues like high resistance or inadequate contact.

Engineers rely on multimeters not only for basic voltage, current, and resistance measurements but also for in-depth diagnostics that pinpoint elusive electrical problems. These diagnostics are crucial in industries such as automotive, telecommunications, and industrial automation, where downtime must be minimized and reliability is paramount.

Choosing the right multimeter is key to ensuring accurate electrical measurements across different applications. Engineers should consider several key features and budget considerations when choosing between budget-friendly and professional-grade multimeters.

When evaluating multimeters, prioritize these features:

• Accuracy: Ensure the multimeter offers precise measurements suitable for your application requirements.
• Display clarity: A clear, high-resolution display improves readability, especially in low-light conditions.
• Auto-ranging: Auto-ranging simplifies measurements by automatically selecting the appropriate range for the parameter being measured.
• Data logging: Data logging refers to the capability of a multimeter or other measuring instrument to record and store measurements over time.

For professional-grade performance, consider the following Keysight models tailored to specific needs:

• 34460A Truevolt Digital Multimeter: Ideal for basic applications requiring high precision and reliability.
• 34465A Truevolt Digital Multimeter: Offers advanced features like data logging and extended measurement capabilities.

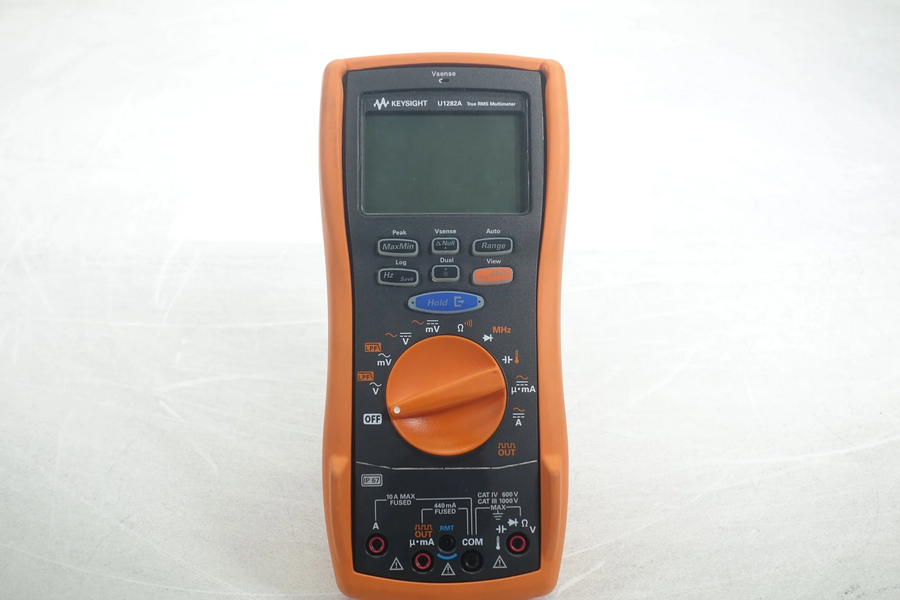

• U1282A Handheld Digital Multimeter: IP67 certified for durability in harsh environments, suitable for fieldwork.
• U3401A Dual Display Digital Multimeter: Provides versatile measurement options and built-in math functions.
• U3606B Multimeter & DC Power Supply: Combines a DMM with a DC power supply, offering flexibility in testing and powering circuits.
