D9010ONFC ONFI Compliance Test Software
- Overview and Features
- Post-Purchase Upgrades
- Resources
HIGHLIGHTS
- Provides an intuitive setup wizard for quick test setup, configuration, and test
- Enables comprehensive test coverage of electrical, timing, eye diagram, and jitter tests as specified in the ONFI4.1 specification
- Offline testing capability with saved waveform files from the oscilloscope or ADS simulation tool
- Automatically checks the oscilloscope for proper configuration and sets it up for each test
Keysight’s D9010ONFC ONFI NVDDR2 and NVDDR3 compliance test application software provides a fast and easy way to test, debug, and characterize your ONFI (Open NAND Flash Interface) designs providing flexibility in your test setup. With the ONFI compliance test application, you can use the same oscilloscope you use for everyday debugging to perform automated testing and margin analysis based on the ONFI4.1 specification. The test application guides you through the process of selecting and configuring tests, making oscilloscope connections, running tests, and evaluating the test results.

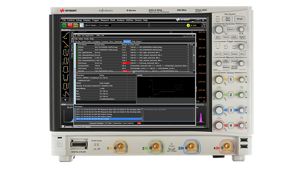

The application automatically configures the oscilloscope for each test and provides informative results. It includes margin analysis indicating how close your device comes to passing or failing the test for each specification. The challenges for R&D engineers validating their ONFI devices are connecting to the target device, configuring the oscilloscope to make the measurements, and analyzing the test results. The ONFI compliance test application automates the measurements as specified in the specification, saving test time and design costs. The ONFI compliance test application software supports the UXR-Series, Infiniium 90000A Series, S-Series, V-Series, and Z-Series oscilloscopes.
