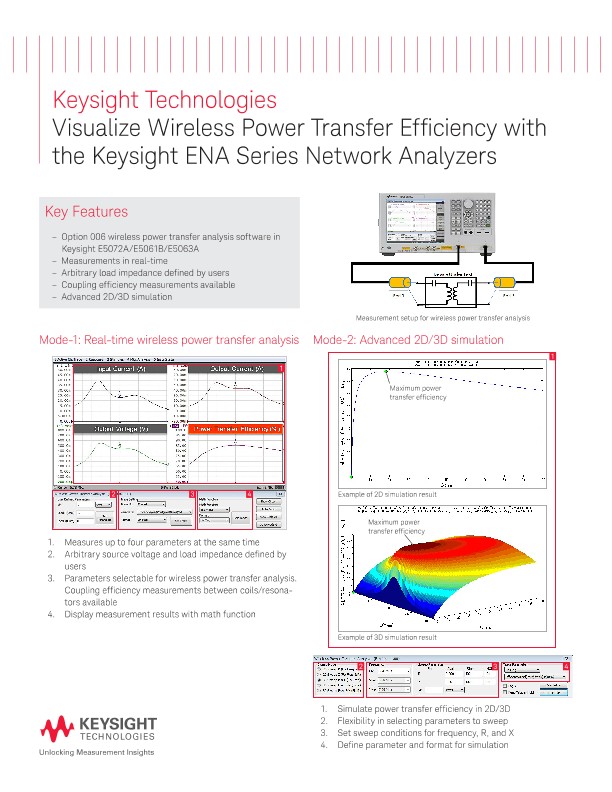

Wireless Power Transfer Analysis with Keysight ENA Series Network Analyzers
Flyers
Keysight Technologies
Visualize Wireless Power Transfer Efficiency with the Keysight ENA Series Network Analyzers
Key Features
- Option 006 wireless power transfer analysis software in Keysight E5072A/E5061B/E5063A
- Measurements in real-time
- Arbitrary load impedance defined by users
- Coupling efficiency measurements available
- Advanced 2D/3D simulation
High power measurements at device’s actual operating conditions with the E5072A
- Configurable test set available to boost output power with an external power amplifier
- The direct accessibility to all of the internal sources and receivers cancels out the effect of temperature drift from the power amplifier
Combination analysis with the E5061B
- Option 3L5 LF-RF network analysis provides network analysis capability from 5 Hz to 3 GHz
- Option 005 adds an impedance analysis function
- Wireless power transfer analysis, power integrity & impedance measurements in one-box
The best balance between cost and performance with the E5063A
- Affordable solution for volume production
- 100 KHz to 0.5/1.5/3/4.5/6.5/8.5/14/18 GHz with frequency upgradability
