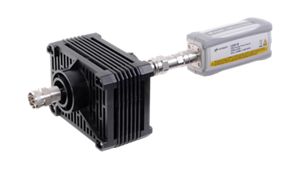

U2001B Sensor de potência, 10 MHz - 6 GHz
U2001B USB power sensor measures average power over the frequency range 10 MHz to 6 GHz and power range -30 dBm to +44 dBm.
A partir de
Highlights
- Frequency range of 10 MHz to 6 GHz
- Wide dynamic range -30 to +44 dBm
- Internal zeroing capability to eliminate external calibration
- High measurement speed of up to 250 readings/second
- Support internal/external trigger measurements, internal triggering, and trace display
- Compatible with other Keysight instruments
- Your instrument can be controlled at no additional cost using the BenchVue Basic Power Meter/Sensor Control and Analysis App (BV0007B). This app simplifies instrument connection and control. Download the BenchVue Basic Power Meter/Sensor App (BV0007B). Note that the basic version does not include KeysightCare support and is one revision behind the licensed version. For access to the latest features and support, the licensed (paid) version of the BenchVue Power Meter/Sensor Control and Analysis App is available.
Internal Triggering and Trace Display Capability
Internal triggering allows triggering based on the burst signal envelope, eliminating the need for an external signal. The trace display provides a graphical view of the signal envelope to assist with gate placement and trigger level setup. All U2000 power sensors, except for the U2004A, feature these capabilities.
Interested in a U2001B?
Extend The Capabilities For Your 10 MHz – 6 GHz USB Power Sensor
