The P5551PSWA PCIe 5.0 Protocol Exerciser Traffic Analysis Software combined with the P5551A Protocol Exerciser, with its integrated, single add-in-card design, brings unparalleled test tools to the world of protocol traffic debugging for PCIe 5.0. The vast feature sets of the exerciser provide deep functionality for configuring traffic setup, while also providing improved data exchange with the analyzer. This not only completes all demands of PCIe 5.0 protocol testing in one simple and user-friendly interface but also enables test and validation engineers to focus their time and energy on designing and automating unique test cases for their products.

Try PCIe Protocol Test Software Today!

Take a Tour

  • Start immediately
  • Self-serve? Yes
  • Experience duration: 3 mins

Request a Live Demo

  • Start in < 2 days
  • Self-serve? No
  • Experience duration: 30 mins

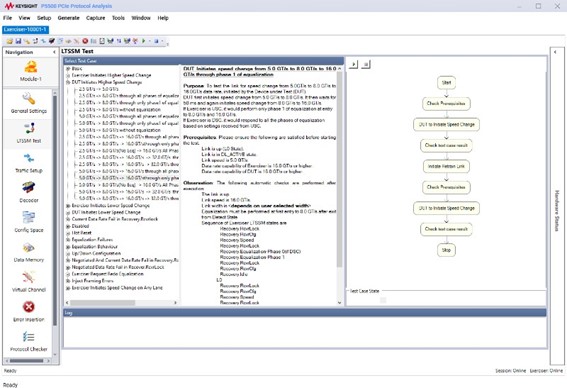

LTSSM Tester

LTSSM Tester mode allows the user to validate the different paths through the branches of the Link Training Sequence State Machine that are defined for PCIe. With over 100 available LTSSM test cases, the exerciser can provide the user with a clear picture of LTSSM compliance from 2.5 GT/s up to 32 GT/s.

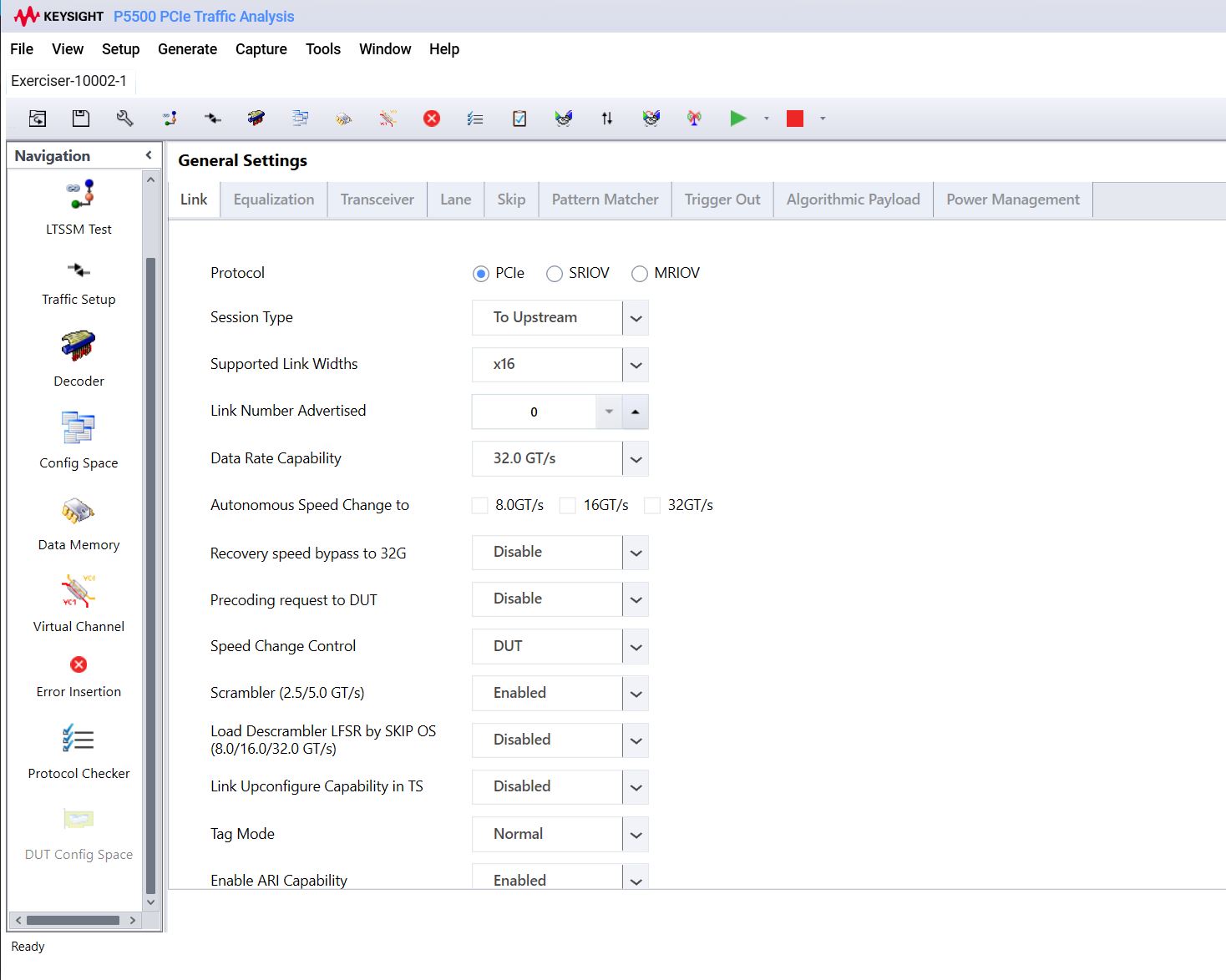

Link Configuration

Link Configuration

The P5551PSWA PCIe 5.0 Protocol Exerciser Traffic Analysis Software supports a wide variety of configuration options for the PCIe link providing the user with a powerful tool for testing PCIe devices.

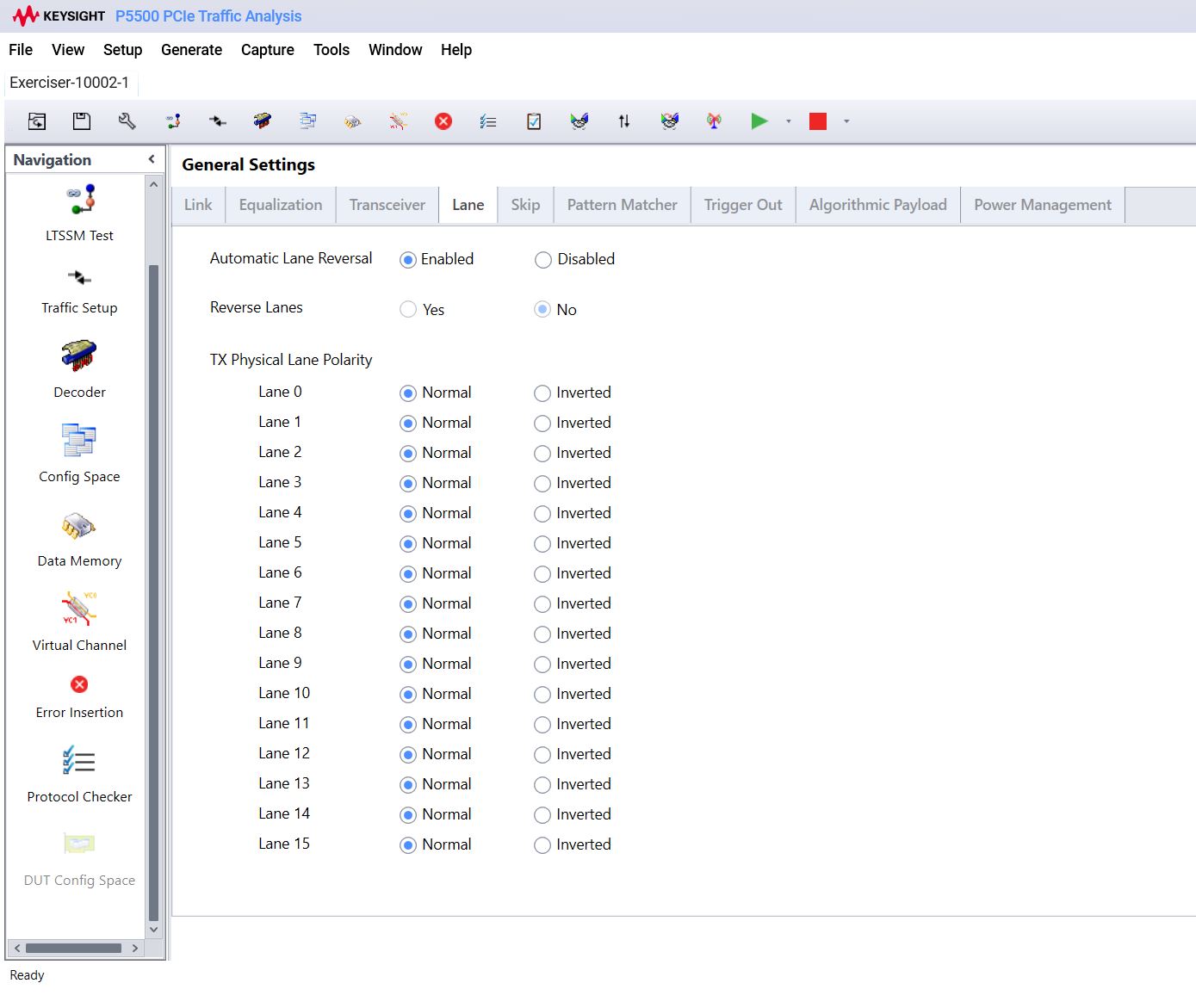

Lane Configuration

The P5551PSWA PCIe 5.0 Protocol Exerciser Traffic Analysis Software supports automatic lane reversal to be enabled and disabled, as well as the ability to invert transmitter lane polarity on specific lanes.

Lane Configuration
Customized PCIe Traffic Generation

Customized PCIe Traffic Generation

With PCIe Exerciser mode, users can create customized Configuration Reads and Writes, I/O Reads and Write, Memory Reads and Writes Messages, and specific Completion types. Templates for each command type are provided to enable the user to create test cases quickly. The Traffic Setup interface in the P5551A allows I/O workloads and payloads to be created to simulate different conditions for the DUT and perform Performance Characterization.

Free Trials

Get a 30-day trial license for the P5551A. The P5551PSWA software license is enabled on the host PC by downloading and installing the setup file.
