• Guided setup with automated receiver signal calibration and conformance test procedures.
  • One-button conformance capability to simplify the test process.
  • Expert mode for beyond-conformance testing and characterization.
  • Fast characterization of single or multi-lane MIPI M-PHY® receivers.
  • HTML and Microsoft Excel reports for easy post-processing.
  • N5991MM5E Frame Generator debug tool available to troubleshoot DUTs easily and enable the set-up of all M-PHY parameters in application terms.

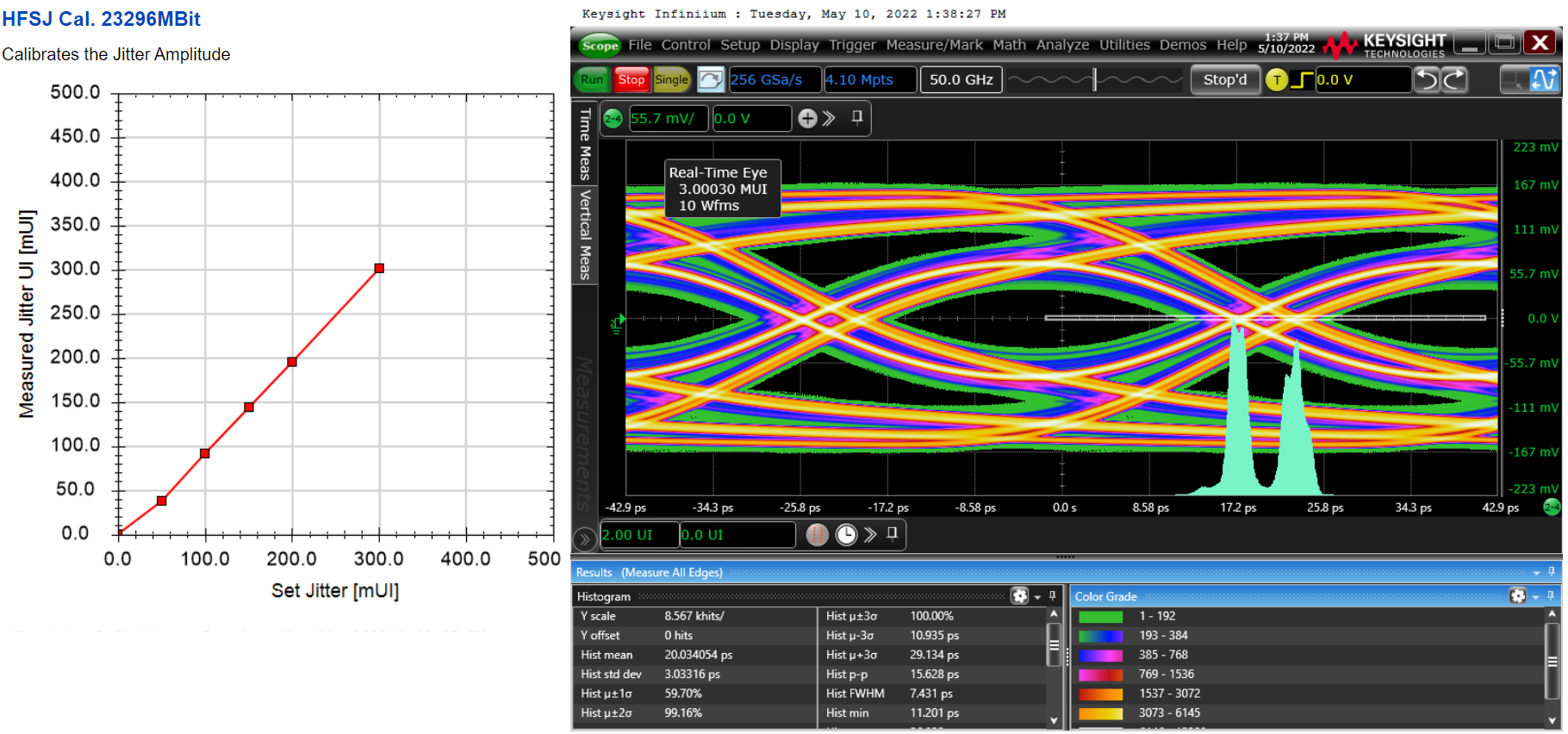

The Keysight N5991MM5A M-PHY Receiver Conformance Test Software maximizes the value of your Keysight M8040A BERT platform, helping you test, debug and characterize your M-PHY 5.0 receiver designs easily with an intuitive user interface. The software automates signal synthesis, calibration, and receiver test procedures, ensuring consistency and repeatability. During the process, the software generates test reports that you can export in HTML or Microsoft Excel for further data analysis.

Complete your M-PHY 5.0 receiver test station with the Keysight N5991MM5E Frame Generator software, a debug tool that eases the troubleshooting of your M-PHY 5.0 DUT. This tool helps you to create complex M-PHY waveforms and is primarily used for ad-hoc debugging.

Keysight's partner BitifEye Digital Test Solutions, the market leader for high-speed digital test automation, provides integrated solutions that complement the Keysight instrument portfolio. To learn more about BitifEye and its wide range of software and hardware products and services, visit www.bitifeye.com.

MIPI® service marks and logo marks are owned by MIPI Alliance, Inc. and any use of such marks by Keysight Technologies is under license. Other service marks and trade names are those of their respective owners.

Free Trials

A 30-day trial license can be requested from our partner BitifEye.
