HIGHLIGHTS

  • Covers OIF-CEI 28G-VSR Host and 28G-SR from 18 to 29 GBaud
  • Covers IEEE 802.3 CAUI-4 host and module tests in advanced mode
  • Support a wide range of Keysight equipment (DCA sampling scope & clock recovery and M8020A and M8040A BER Testers)
  • Guided setup, automated stress signal calibration and compliance measurement for host compliance tests

The M809228XA receiver test plug-in for M8070B is designed to assist and simplify the stress signal calibration used for testing the inputs of OIF-CEI CEI-28G-SR and 28G-VSR host compliance interfaces. The OIF-CEI 3.1 standard option is available within the M8070B user interface menu with the flexibility of choosing either compliance or debug mode. It reduces user interaction to a minimum and performs all required calibration routines and compliance testing automatically by remote controlling all required instruments. When a user is required to perform setup changes, the user is guided by diagram as well as text to minimize errors.

Results-of-VSR-Crosstalk-Transition-Time-Calibration

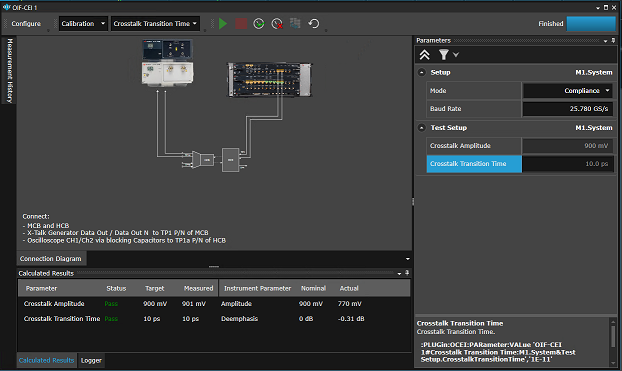

Figure 1: Connection diagram, parameters and calculated results of VSR Crosstalk Transition Time Calibration

Parameters-and-calculated-results-of-Stressed-Input-test

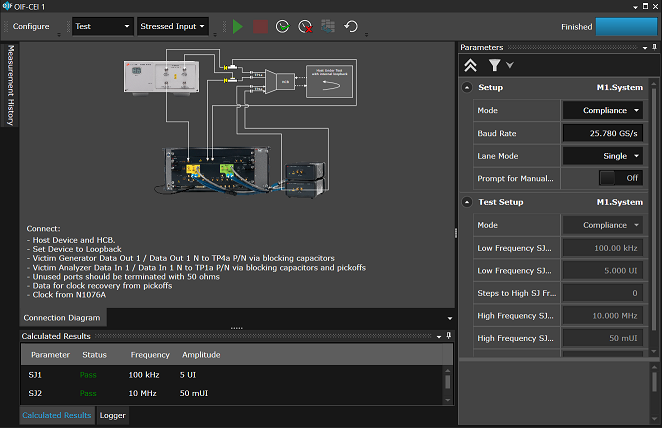

Figure 2: Connection diagram, parameters and calculated results of Stressed Input Test

Free Trials

M809228XA OIF-CEI 28G VSR/ SR Compliance Test Plugin

M809228XA is a M8070B plugin for OIF-CEI 28G VSR/SR Compliance Test. It performs calibrations and tests for 28G-SR and 28G-VSR host compliance.
OIF-CEI 28G VSR/ SR Compliance Test Plugin

Interested in a M809228XA?

Extend the Capabilities for Your OIF-CEI 28G VSR/ SR Compliance Test Plugin

Garantia, Calibração e Serviços
Ver todos os serviços
Suporte
Ver todo o suporte

Featured Resources for M809228XA OIF-CEI 28G VSR/ SR Compliance Test Plugin

Data Sheets 2020.07.13

M809228XA OIF-CEI CEI-28G VSR/SR Compliance Receiver Test Plugin

M809228XA OIF-CEI CEI-28G VSR/SR Compliance Receiver Test Plugin

The M809228XA receiver test plug-in for M8070B is designed to assist and simplify the stress signal calibration used for testing the inputs of OIF-CEI CEI-28G-SR and 28G-VSR host compliance interfaces. The OIF-CEI 3.1 standard option is available within the M8070B user interface menu with the flexibility of choosing either compliance or debug mode. It reduces user interaction to a minimum and performs all required calibration routines and compliance testing automatically by remote controlling all required instruments. When a user is required to perform setup changes, the user is guided by diagram as well as text to minimize errors.

2020.07.13

User Manuals 2022.01.12

Keysight OIF-CEI 28G VSR/SR Plugin User Guide

Keysight OIF-CEI 28G VSR/SR Plugin User Guide

Keysight OIF-CEI 28G VSR/SR Plugin User Guide

2022.01.12
