• Generates dual I/Q signals (BPSK …. QAM256) with flexible signal parameters (e.g. pulse shape, delay) from up to 8 GSym per I/Q pair
• High symbol rate signals up to 50 GBaud with M8196A, up to 75 GBaud with M8196A, and up to 100 GBaud with M8194A
• Option RSP (real-time signal processing) in conjunction with the M8195A enables to change signal parameters (e.g. pulse shape, delay) on the fly at runtime, without the need to download a new waveform
• Option OSP in conjunction with the M8195A, M8196A, or the M8194A provides the ability to synthesize optical signal properties

     - Phase noise (laser line width)

     - Polarization control (polarization rotation > 1000 krad/s)

     - Static polarization mode dispersion (PMD) up to 218 ps (differential group delay) and > 11,000 ps2 (2nd order PMD)

     - With option RSP in conjunction with the M8195A the optical signal properties can be changed in real-time

The Optical Modulation Generator Software 81195A introduces a new approach to optical test. Combined with the M8195A AWG it speeds up your test by a factor of up to 100 with its unique real-time mode. This helps design engineers of long-haul, metro and data-center interconnect coherent optical transmission applications to maximize test efficiency and thus reduce development time and cost.

The 81195A generates dual-I/Q signals for polarization-multiplexed coherent signal transmission test with defined signal parameters and optical signal properties. In conjunction with the M8195A 4-channel AWG it generates transmission signals with up to 32 GBaud and up to 8 GSym per channel using a single M8195A module in real-time encoding mode (option RSP).

The option OSP allows the user to deterministically emulate optical signal properties and receiver stress conditions (incl. phase noise, polarization rotation, and polarization mode dispersion) on the M8195A, the M8196A, or the M8194A AWG. In combination with option RSP, the parameters of these signal properties can be changed on the fly on the M8195A, without the need to download a new waveform.

For more information about pulse generator, please visit Keysight Pulse Generator Product.

Features

• Graphical user software – no programming required.
• 3 modes of operation: waveform capture, data logging, CCDF statistical analysis.
• Accurately log current drain measurements from 10 seconds to 1000 hours at 64,000 measurements per second (66319B/D, 66321B/D only).
• Automation capability provides operational control from many test applications (including Keysight Wireless Test Manager, NI LabVIEW1, Microsoft® Visual Basic, and more).
• Measure text copy feature allows full export of data for use in other documents (such as an Excel spreadsheet or text file)
• 15-day trial period with full capability.
• Software license is associated with an individual product and not a computer. This allows you to install the software on multiple computer platforms to control the same instrument.

The Keysight 14565B device characterization software is designed for easy evaluation of portable battery powered device (like 3G handsets, PDA, WLAN, and Bluetooth™ enable devices) current profiles to ensure long operating life of devices.

This software provides a graphical user interface to easily control the Keysight 66300 series mobile communications DC sources and measures device current draw. Current drain analysis allows you to characterize current drawn from a battery and make tradeoffs in design that impact the current drain and battery life. With current drain analysis, you can log current drain measurements for up to 1,000 hours and perform statistical CCDF analysis.

The 14565B can be controlled from other programs and programming languages (such as the Keysight Interactive Functional Test software, Wireless Test Manager, NI LabVIEW¹, Keysight VEE, Microsoft^® Visual Basic, Microsoft Excel and others) to automate and synchronize current drain measurements with other DUT stimulus and activity, such as RF and digital control and activities. The 14565B software with test automation saves valuable resource and time by automating time consuming, repetitive tasks associated with characterizing battery current drains during real world operation: video streaming, music downloads, text messaging.

14565B test steps are now integrated into Interactive Functional Test software (N5972A) and Wireless Test manager versions E6567C, E6568C, N5882A, N5884A, N6422C, N6423C.

_{Bluetooth is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Keysight Technologies, Inc.
Microsoft is a U.S. registered trademark of Microsoft Corporation.}
1_{This is a National Instruments product}

Waveform Builder Pro Makes Custom Waveforms Quick and Easy

Keysight 33503B BenchLink Waveform Builder Pro Software is a full-featured waveform creation software for pulse/function/arbitrary waveform generators. The waveform tool software enables you to take full advantage of the signal generation capabilities of the Keysight 33200, 33500, 81100 Series waveform generators and makes custom waveform creation fast and simple!

This Microsoft Windows^®-based program provides easy-to-use waveform tools such as an equation editor, waveform math, and drawing tools to create custom signals with a library of built-in waveforms to choose from. The software also provides a waveform sequencer, filters, and windowing functions allowing you to easily modify and further define your waveform.

With the BenchLink Waveform Builder Pro you get advanced signal creation and editing capabilities without spending hours programming.

• Waveform libraries provide quick and easy access to both common signals (sine, square, triangle, ramp, pulse, exponential) and complex signals
• Free-hand, point, and line-draw modes to create custom shapes
• Equation editor allows you to create waveforms with exact polynomials
• Sequencing editor allows you to build and arrange composite waveforms to optimize your design
• Filtering and windowing functions allow you to smooth transitions between waveforms
• Fast Fourier Transform (FFT) allows you to view the frequency characteristics of your signals
• Complimentary Cumulative Distribution Function (CCDF) curves allow you to view the power characteristics of your signals

The software supports the following Keysight products:

• 33600A Series Trueform waveform generators, 80 & 120 MHz
• 33500B Series waveform generators, 20 & 30 MHz
• 33210A, 33220A, 33250A function/arbitrary waveform generators
• 33521A, 33522A function/arbitrary waveform generators
• 81150A, 81160A, 81180A pulse/function/arbitrary noise generators
• M8190A arbitrary waveform generator
• 3000 and 4000 X-Series InfiniiVision oscilloscopes
• U2761A USB modular function generator

The D9050CEIC application is a Keysight UXR oscilloscope-based conformance test automation package for physical layer electrical validation and debug of CEI-112G-PAM4 designs. It offers robust testing capabilities for extra short reach(XSR),very short reach(VSR) ,medium reach (MR) and long reach (LR) applications, making it an essential tool for engineers and technicians working in the field of high-speed data transmission. The application simplifies the testing process by automating various tasks, thereby enhancing productivity and reducing time to market.

Comprehensive measurement and debug solution

• Characterizes 112Gbps OIF-CEI  XSR, VSR, MR and LR reaches of the Common Electrical Interface specification.
• Nearly 100 automated electrical compliance tests

Key features

• Reduce time spent understanding the details of standards.
• Decrease the time it takes to characterize your PAM4 design from hours to minutes.
• Enable the debugging of your device using custom configurations.
• Generate HTML reports that summarize the performance of your device quickly.

Compatible

• UXR product series operating at and above 65 GHz.

• Compute vector corrected EVM and ACPR measurements for any user specified gamma while achieving the wide dynamic range and lower residual EVM of the modulation distortion application for vector netrowk analyzers (PNA-X, M983xA PXIe VNA).
• User specified gamma profile, including the ability to import an S1P file, sets how each gamma presented to the amplifier changes across the modulation bandwidth.
• Gamma control at all frequencies in the modulation bandwidth is accomplished using the vector signal generator or arbitrary waveform generator such as M9484C VXG or M5300A PXIe RF AWG.
• Active load control is differentiated from passive load pull where gamma is controlled only at the center frequency and uncontrolled at other frequencies in the modulation bandwidth.

The software enables power amplifier distortion measurements under varying load conditions that are controlled across the entire modulation bandwidth. When design verification and robustness evaluation require testing the device away from the optimum loading condition, this application provides powerful insight into device performance and degradation.

• Compute vector corrected EVM and ACPR measurements for any user specified gamma while achieving the wide dynamic range and lower residual EVM of the modulation distortion application for vector network analyzers (PNA-X, M983xA PXIe VNA).
• User specified gamma profile, including the ability to import an S1P file, sets how each gamma presented to the amplifier changes across the modulation bandwidth.
• Gamma control at all frequencies in the modulation bandwidth is accomplished using the vector signal generator or arbitrary waveform generator such as M9484C VXG or M5300A PXIe RF AWG.
• Active load control is differentiated from passive load pull where gamma is controlled only at the center frequency and uncontrolled at other frequencies in the modulation bandwidth.

The software enables power amplifier distortion measurements under varying load conditions that are controlled across the entire modulation bandwidth. When design verification and robustness evaluation require testing the device away from the optimum loading condition, this application provides powerful insight into device performance and degradation.

Automotive Ethernet Conformance Test Software for Cables, Connectors and Harnesses

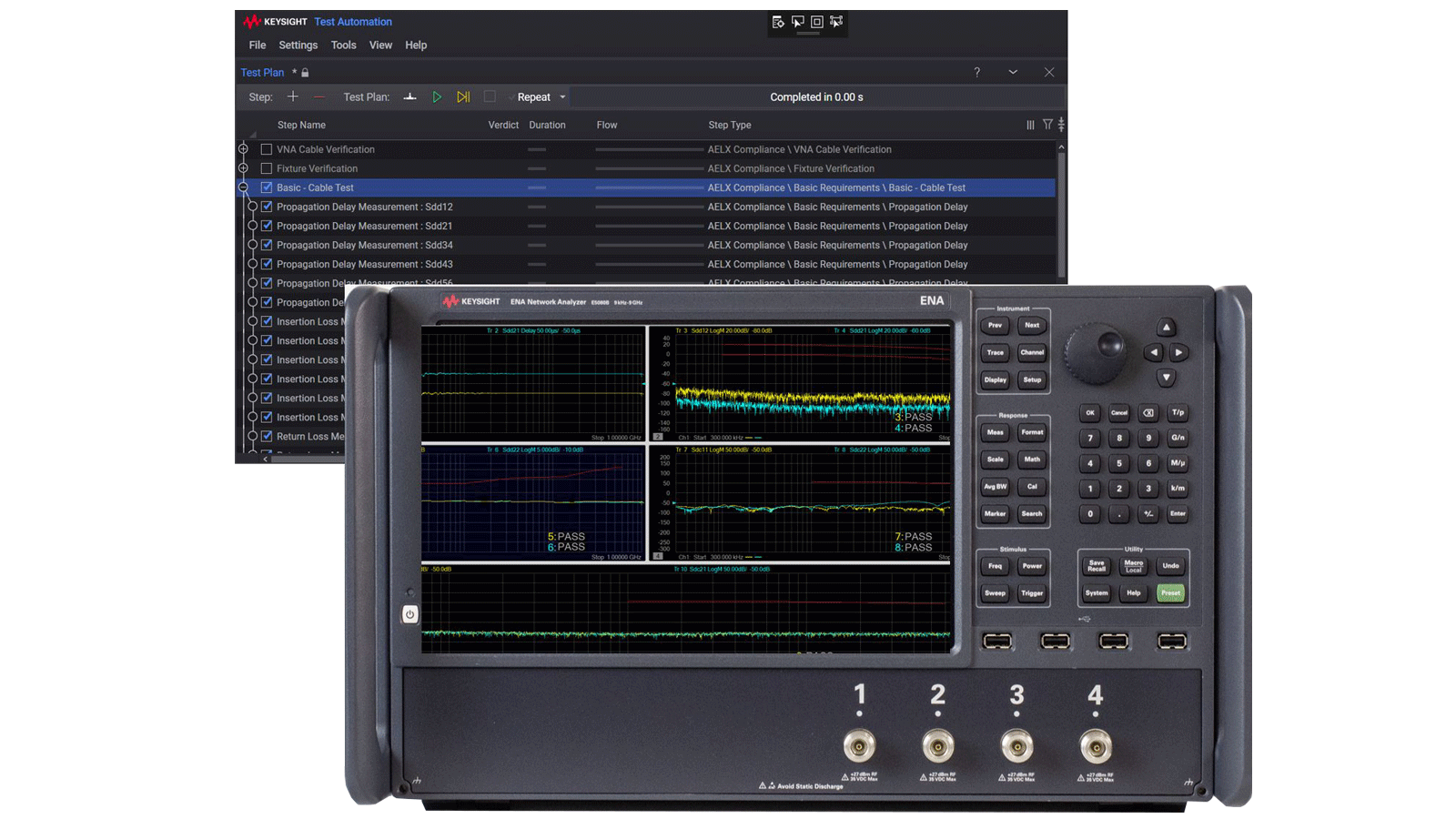

The Whole Communications Channel represents the complete wired connection between two transmit/receive modules with an automotive Ethernet interface using a two-wire twisted pair cable. The Keysight AE6910L software ensures signal quality requirements, with conformance testing for that channel. In addition, it performs return loss, insertion loss, mode conversion, and power sum cross-talk measurements of a cable in a bundle.

Unlike CAN, LIN, Automotive Ethernet demands rigorous compliance verification using test cases that cover transmitters (Tx), receivers (Rx), and harness/connector assemblies. To help you save time and effort, Keysight offers solutions that automate the testing and validation across Transmitter (Tx), Receiver (Rx), and the connections between automotive Ethernet devices. Our engineers have invested thousands of hours in learning the standards and creating automated, repeatable compliance tests. These proven applications help you ensure proper test configuration and valid measurement results. Ultimately, you’ll have greater confidence that your device is compliant. The AE6000L Automotive Ethernet Test Solution offers hardware and accessories to make sure you have all of the components you need to get up and running quickly.

Standards supported

• Channel testing per OPEN Alliance (1000BASE-T1) - TC9 UTP and STP specifications
• OPEN Alliance 100BASE-T1 Definitions for communications channel
• IEEE 802.3bw, 802.3bp and 802.3ch

Key capabilities

• Automatically detects the number of available ports
• Creates a test plan for those lanes selected with all the required tests per the specification
• Automatically sets up the network analyzer for each measurement and applies the limit lines
• Expandable to cover proprietary limits and quickly adapt to new standards
• Creates a printable PDF report of the tests that have been run

Ordering information

• The software requires Keysight PathWave Test Automation software.
• The software runs on a VNA with option TDR; choose benchtop, PXI, or USB.
• Software licenses are available as node-locked, transportable, USB portable, or floating and can be purchased with 6, 12, 24, 36, or 60 months of support.
• Configuration guidelines are available in the data sheet.

For more information about additional and more custom network analyzer software, please visit Network Analyzer Software.
