N4917DJCA 1.6T Optical Receiver Test Application
Offers fully automated stress eye calibration and receiver testing for 800G and 1.6T modules with 100G and 200G / λ optical interfaces.
A partir de
Highlights
The Keysight N4917DJCA solution consists of the software application, an M8050A 120 Gbaud high-performance bit error ratio tester, an interference source, an optical reference transmitter, an optical sampling oscilloscope, a tunable laser source, and an optical attenuator. Automated calibration ensures a high level of accuracy and repeatability and speeds up calibration and test time significantly compared to manual operation.
Capabilities
- Meets IEEE 802.3 standard for stressed optical receiver characterization for 800G and 1.6T modules with 100G and 200G / λ optical interfaces.
- Follows the test procedures described in IEEE 802.3 clauses 124, 167, 140, 151,180, 181, 182, and 183 (IEEE 802.3cn / cu / db / df and dj projects).
- Provides a turnkey solution that automates all required instruments.
- Ensures repeatable and stable calibration of optical stressed PAM4 signals.
- Enables adjustable target values for outer extinction ratio, transmission and dispersion eye closure, and optical modulation amplitude.
Functionalities
- Provides unified instrument control and settings with the N4917DJCA software.
- Automates stress signal calibration, receiver sensitivity, and jitter tolerance measurements.
- Enables customized device testing and reporting via device-under-test control and scripting interface.
- Includes adjustable stress mix for user-defined calibration.
- Offers flexible calibration based on customer-defined parameter settings.

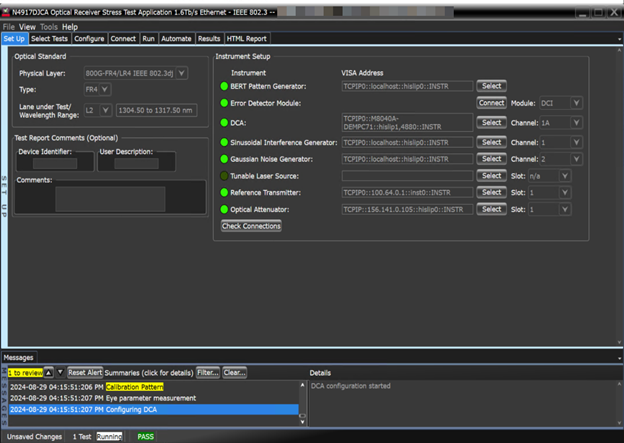

Standard Graphical User Interface of N4917DJCA and Options
The test application provides a list of all addressable calibrations and conformance tests according to their respective references under the IEEE 802.3dj standard.

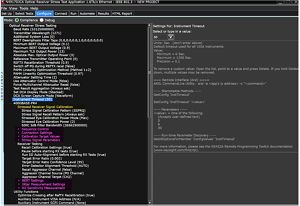

Configure the Parameters in Compliance or Debug Mode
All calibration steps are automated. The test application prompts you when you need to connect the test instruments. You can also test the devices beyond the standard recommendations with debug mode, enabling you to quickly adapt to the latest standard changes.

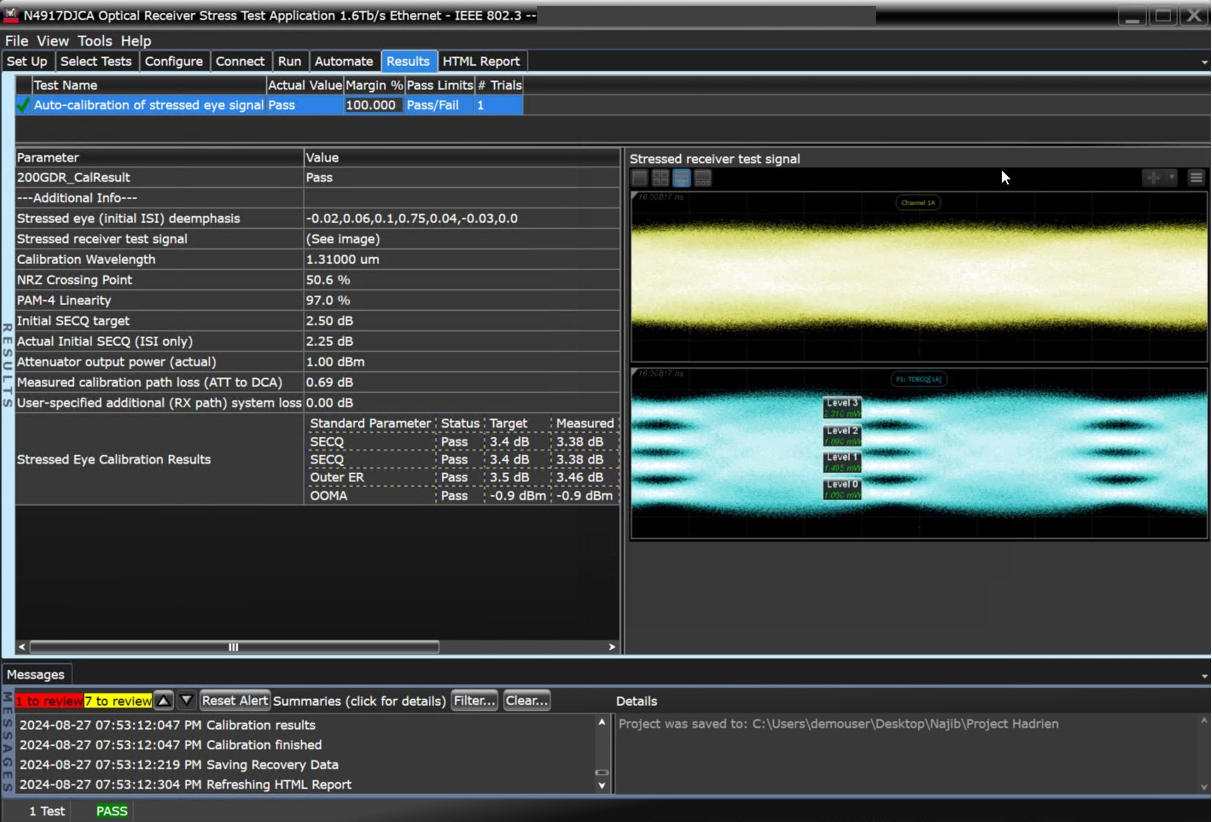

Example of Calibration Results
Get the results of individual calibration steps and tests in tabular or graphical form where appropriate. Store calibrations and test results in projects and recall them later. You can also generate HTML-based test reports.
Free Trials
Get a 30-day trial license for N4917DJCA
