PCIe Protocol Analyzers Precision PCIe protocol analysis
Model: P5762AKeysight LA5-class PCIe protocol analyzers include the P5570A
prev
- Overview
- Options
- Accessories
- Software
- Support
LA5-class PCIe Protocol Analyzer
Keysight PCIe® 7.0 Protocol Analyzer redefines protocol debugging and validation through one slot AXIe based PCIe Analyzer module, delivering comprehensive protocol visibility and enhanced signal integrity at data rates up to 128 GT/s.
-
Standards
Ready for a quote
Find out what's included and explore available upgrade options from Keysight.
Highlights

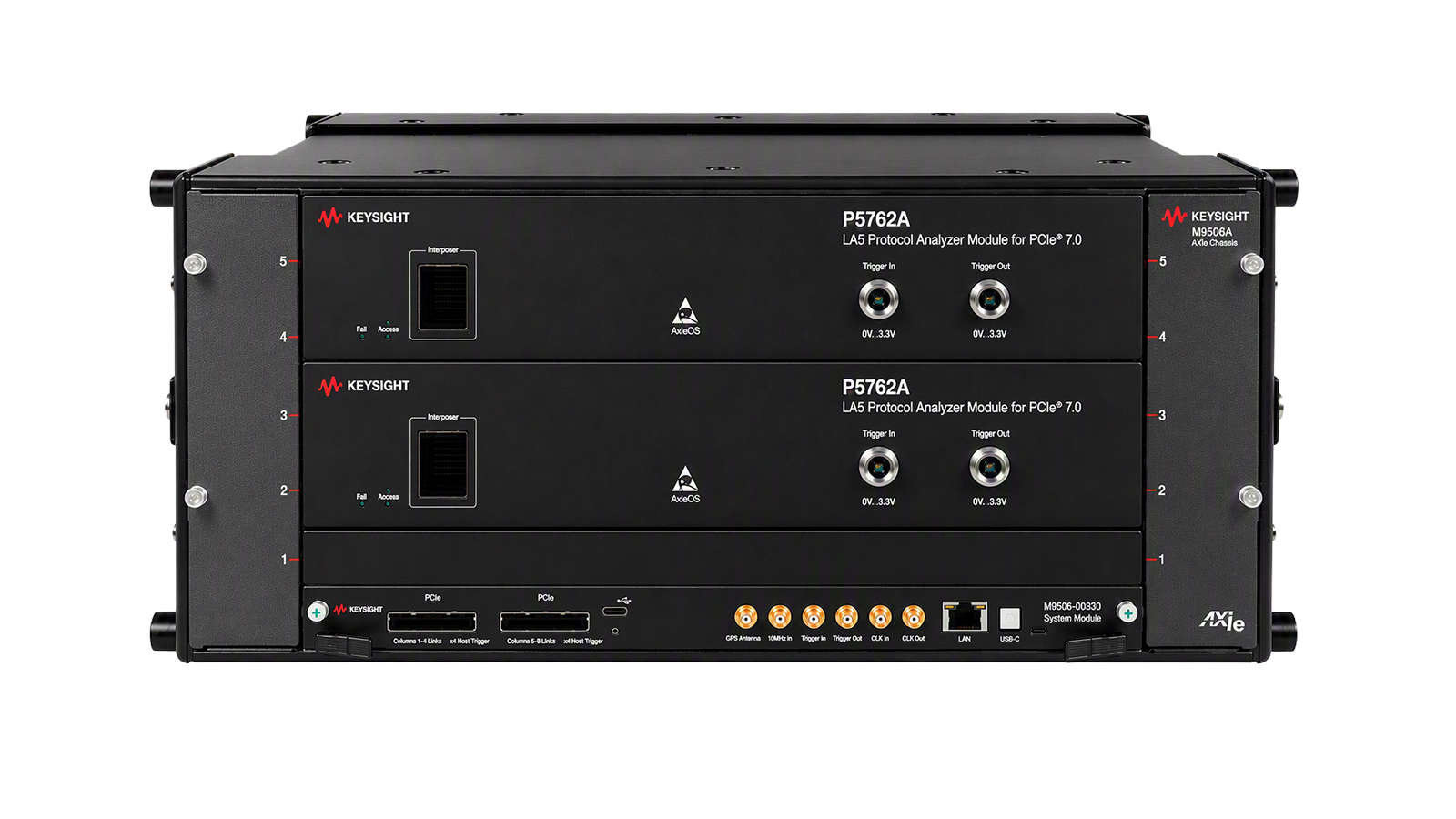

The Keysight P5762A PCIe® 7.0 Protocol Analyzer features a new AXIe-based, single-slot modular architecture that is easily deployed in a laboratory environment for deep protocol analysis of PCIe systems. With enhanced signal integrity and advanced analysis capabilities, it enables engineers to efficiently identify protocol issues and validate device operation by providing visibility from the Physical Layer through the Transaction Layer. This comprehensive insight helps accelerate debugging, interoperability testing, and product validation at PCIe 7.0 data rates. The P5762A Analyzer module is inserted into M9506A 5 slot AXIe chassis occupying 2 slots.
- Decodes PCIe® traffic at data rates up to 128 GT/s with support for x8 links
- Supports up to 16 GB of trace memory with on-board data compression
- Provides visibility into the Physical Layer (TS0/TS1/TS2/Ordered Sets), Data Link Layer (ACK/NAK, Sequence Numbers, Replay), and Transaction Layer (Memory, Configuration, and I/O read/write transactions)
- Supports both FLIT and non-FLIT modes with a dedicated FLIT Viewer
- Operates through the comprehensive P5500 PCIe Traffic Analysis software GUI
- Designed as one slot AXIe based module supporting x8 link
- Enables functionality through the P5770PSWA software license
- Connects to the P5773A x16 CEM Interposer (Qty 2 of P5762A required) or the P5772A x8 CEM Interposer (Qty 1 of P5762A required) using Analyzer-Interposer synchronization cables to complete the system configuration
- Fits into M9506A chassis occupying 2 of five slots
