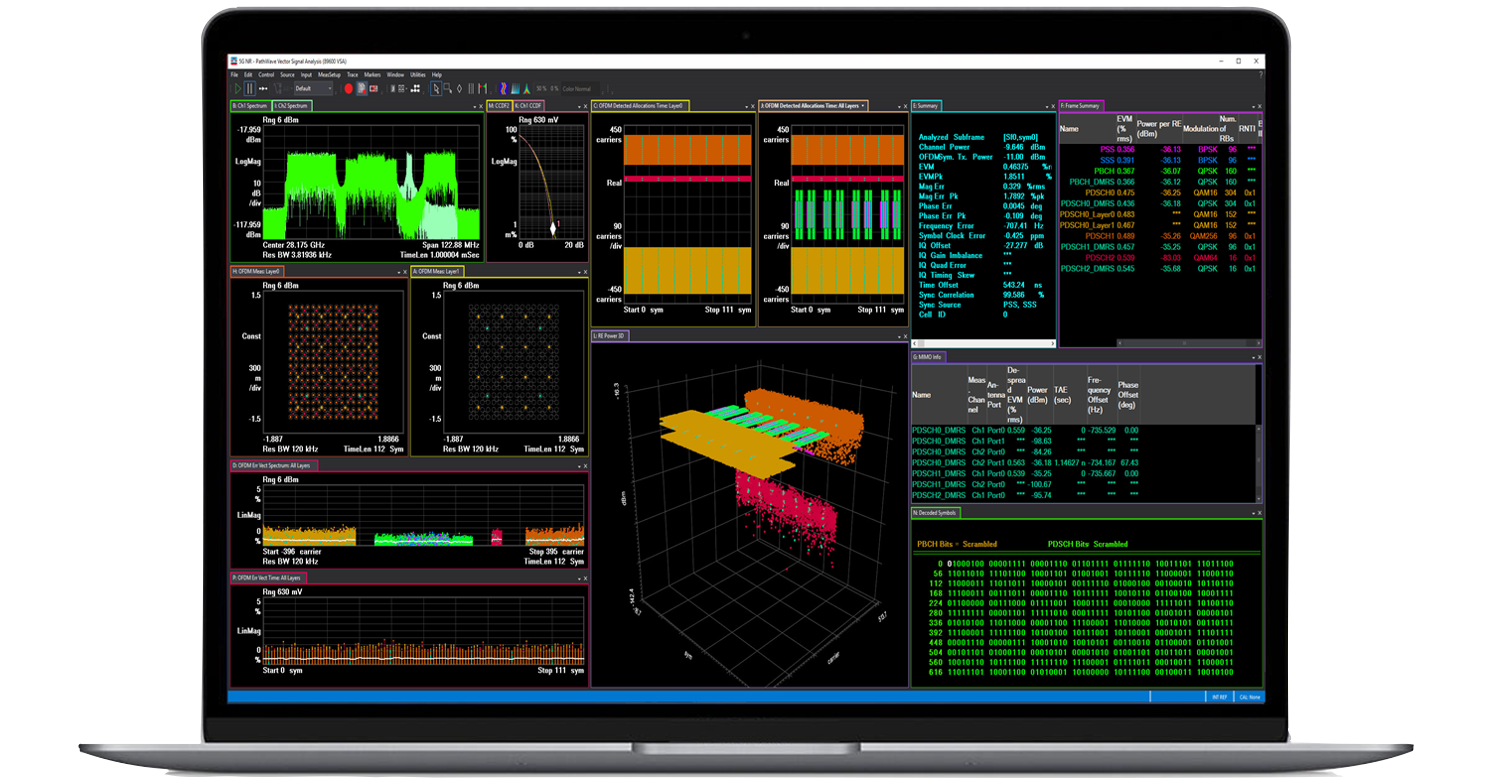

Vector Signal Analysis (89600 VSA Software)

Signal analysis software is a scalable and predictive tool that enables fast, efficient evaluation of signals. Process, share, and analyze signals at every stage in your product development workflow while combining design, instrument control, and application-specific signal analyzer software.

It focuses on evaluating, interpreting, and manipulating signals from different sources. This turns raw data into useful insights. Engineers and researchers use this software to check how well systems and devices perform and are built. It ensures signals meet the necessary specifications and standards. Its importance reaches several industries, especially telecommunications, aerospace, and automotive. In telecommunications, it improves communication quality by optimizing signal transmission. Aerospace applications use it to monitor and analyze telemetry data, ensuring safety and reliability during flights. In the automotive industry, it helps develop and test advanced driver-assistance systems (ADAS), improving vehicle safety and performance.

Common uses include spectrum analysis, modulation analysis, and time-domain analysis. Engineers may use the signals software to find interference in communication channels or assess how well new signal processing algorithms work. It is also crucial in research and development, enabling simulation and testing of signals under different conditions. This helps streamline the move from idea to deployment. Overall, signal analysis software is essential in modern engineering, fostering innovation and efficiency across many applications.

Vector signal analysis software, also known as 89600 VSA, is ideal for evaluating and troubleshooting wireless signals in research and development (R&D). This software is PC-based, supporting numerous hardware measurement platforms like Keysight’s spectrum analyzers.

Measurement applications provide ready-to-use measurements for signal analysis. Measurement applications run either inside benchtop signal analyzers, on a PC for connection to the benchtop, or PXIe test instruments.

Measurement application software provides embedded format-specific, one-button measurements for signal analyzers. With fast measurements, pass/fail testing and simplicity of operation, measurement software applications are ideally suited for automated design verification and manufacturing tests.

Vector signal analysis software is ideal for evaluating and troubleshooting wireless signals in R&D. PC-based, supporting numerous hardware measurement platforms, the 89600 Vector Signal Analysis (VSA) software provides flexibility and sophisticated measurement tools essential to find and fix signal problems.

With 89600 Vector Signal Analysis software, you can measure more than 75 signal standards and modulation types for cellular communications, giving you the versatility to analyze signals across different technologies efficiently.

89600 Vector Signal Analysis software can configure, execute, and display multiple measurements simultaneously. For example, you can analyze the coexistence of 5G and LTE signals leveraging Dynamic Spectrum Sharing. A collection of measurements can be created and stored in memory, available to run instantly. Connect to multiple analyzers at the same time, or use a single multi-channel instrument, to acquire signals from different test points or frequency bands in parallel.

You can download the 89600 Vector Signal Analysis (VSA) software and try it free for 30 days. Use it with your own analysis hardware or explore our recorded demo signals by selecting File > Recall > Recall Demo > signal type in the software toolbar. The trial license unlocks all core vector signal analysis features and hardware connectivity at the advanced tier. Get your free trial license here: www.keysight.com/find/89600 trial.

To activate your 89600 VSA license, open the Keysight License Manager on your PC, select Install or Add License, and enter your license key or activation code provided by Keysight. If your license is server-based or node-locked, follow the on-screen prompts to complete activation. You can find step-by-step instructions and download the Keysight License Manager at www.keysight.com/find/licensing.
