Highlights

The Keysight DAQM910A module data acquisition system is a low-voltage 20-channel multiplexer module. It combines dense, multifunction switching with 80-channel-per-second scan rates to address a broad spectrum of low-voltage data acquisition applications. You can mix two- and four-wire channels on the same module. Additional features include the following:

  • two- and four-wire scanning
  • maximum 40 Vpk circuit protection and switching
  • automatic voltage safety monitoring
  • built-in thermocouple reference junction
  • SCPI compatible with DAQM901A module (for voltage and temperature measurement applications)

The standard product includes the following:

  • 1 DAQM910A multiplexer module
  • 1 functional test certificate

Please Note: Firmware version A.03 or above is required on DAQ970A and DAQ973A for compatibility with the DAQM910A.

DAQM910A 2 and 4 wire low voltage multiplexer module

Interested in a DAQM910A?

Featured Resources for Data Acquisition System

Application Notes 2025.10.30

Choosing the Right DAQ Multiplexer Modules for Voltage Measurement

Learn how to choose the right Keysight DAQ multiplexer module for accurate voltage measurement. This application note compares DAQM910A and DAQM901A, guiding engineers and researchers on achieving safe, precise, and scalable data acquisition across low- and high-voltage applications.

2025.10.30

Technical Overviews 2025.01.20

DAQ970A/DAQ973A Data Acquisition System

The Keysight DAQ970A/DAQ973A offers unequaled versatility for your data acquisition applications.

2025.01.20

Reference Guides 2024.10.30

DAQ970A/DAQ973A Security Guide

This document describes instrument security features and the steps to declassify an instrument through memory clearing, sanitization, or removal.

2024.10.30

사용자 메뉴얼 2024.10.30

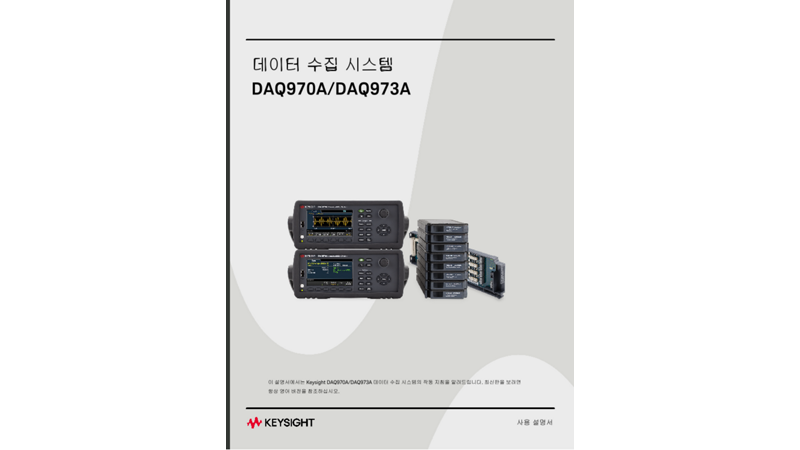

DAQ970A/DAQ973A 사용 설명서
