28 LVDS Channels, 8 Trigger Channels

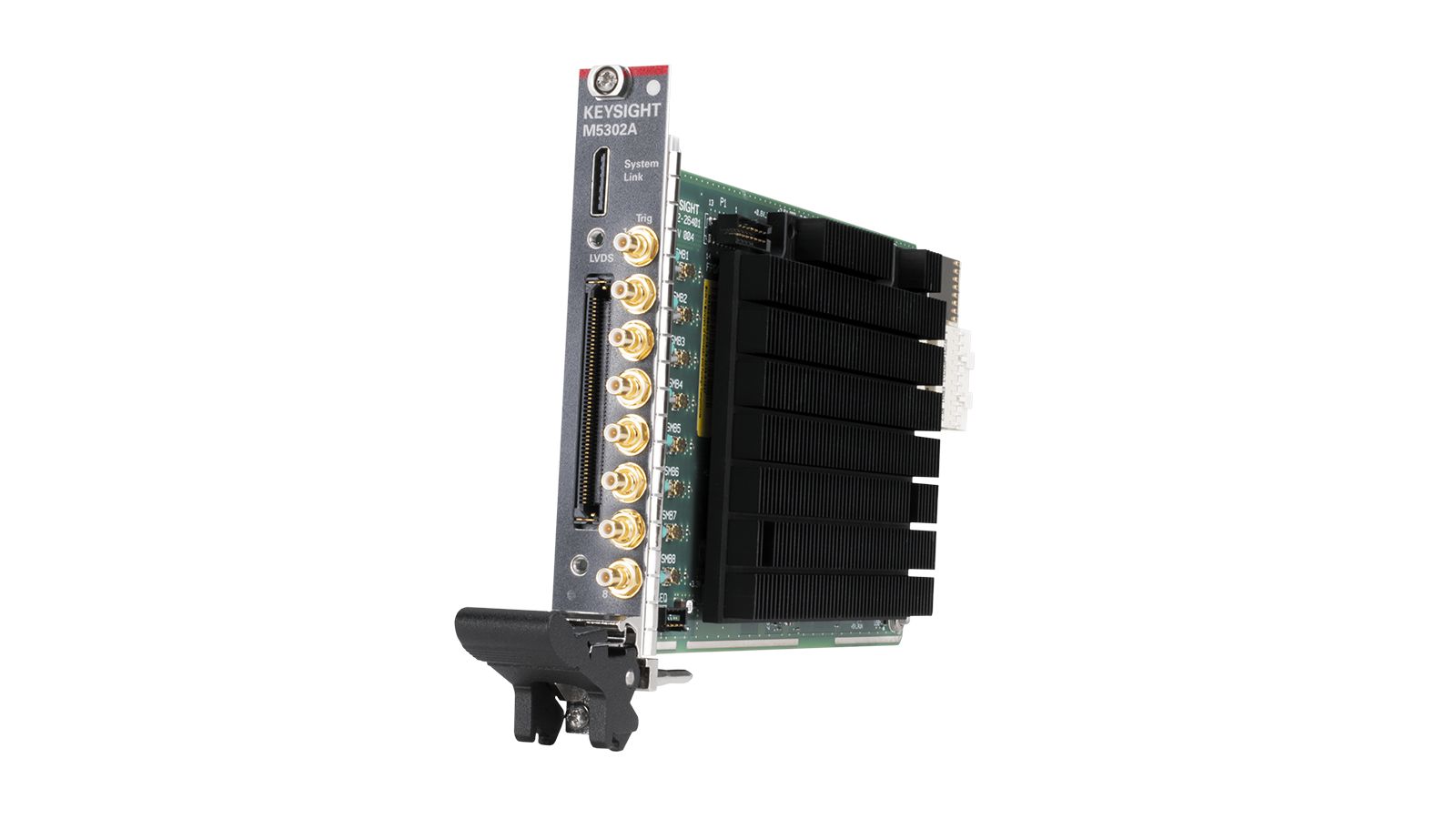

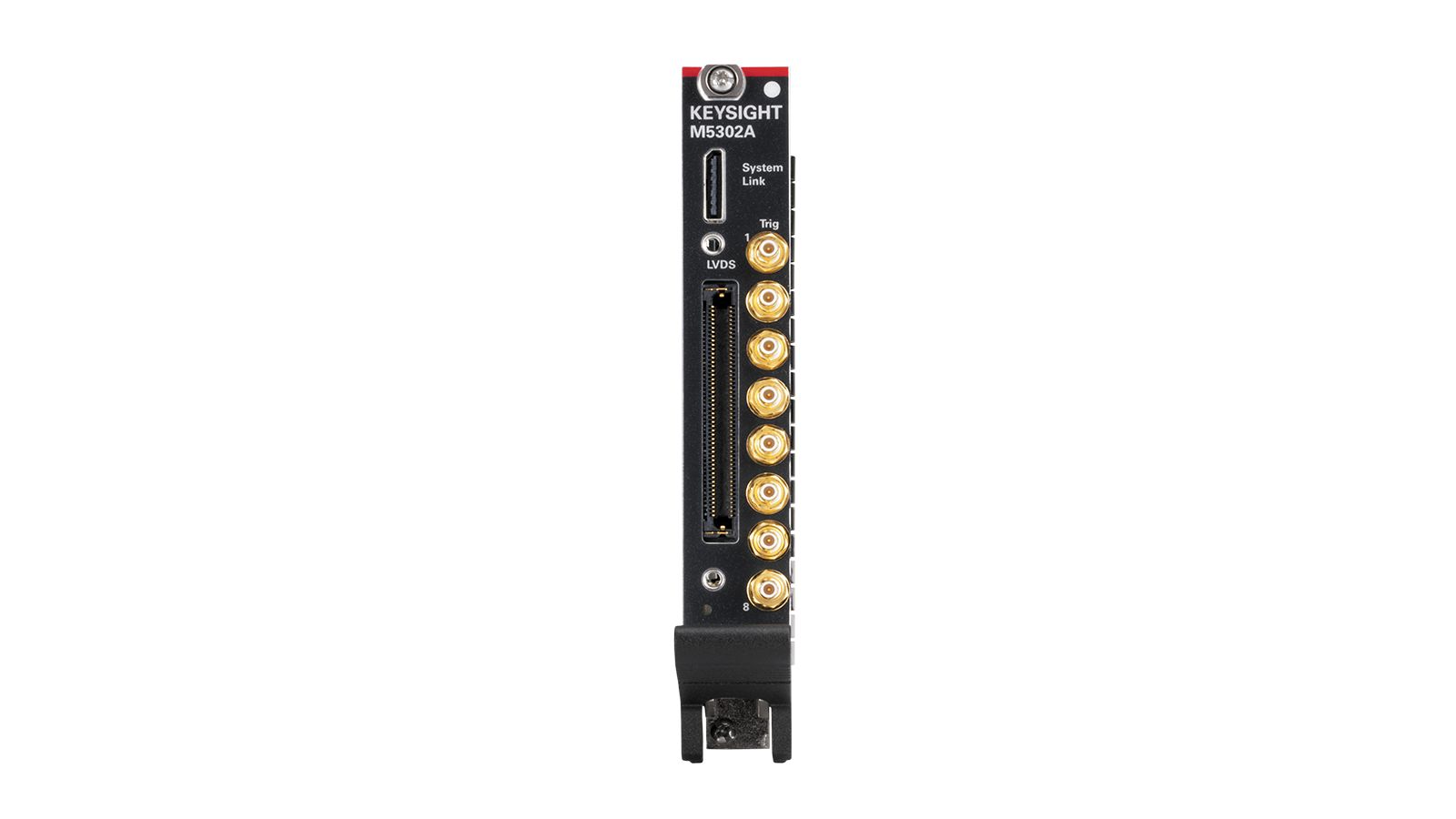

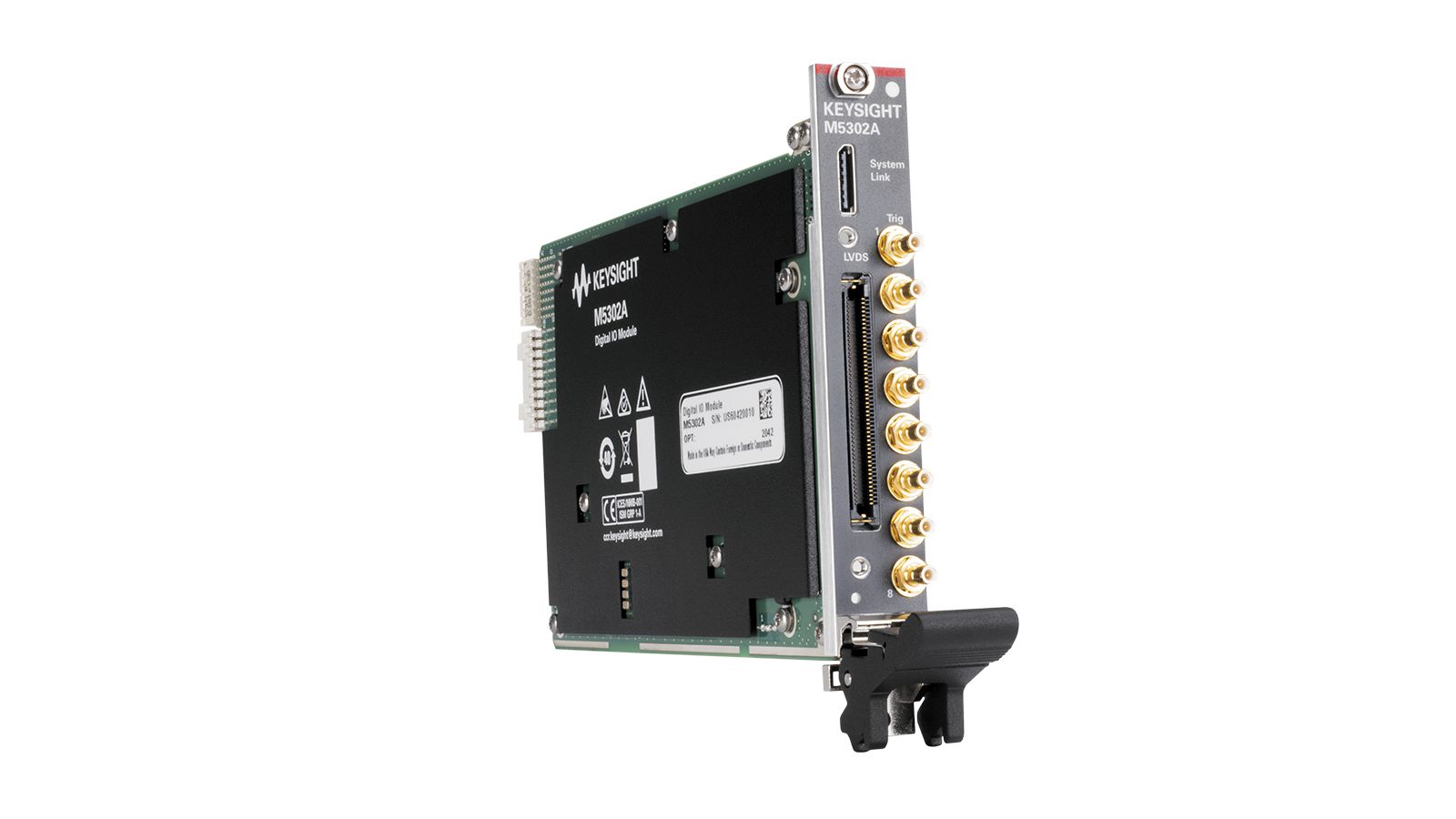

M5302A is a single-slot Digital IO PXIe module with 28 programmable LVDS channels and 8 single-ended channels. The LVDS channels can be used to communicate to the device under test or can be used to control other devices by emulating protocols such as Camera Link. The single-ended channels are suitable for event triggers or other general-purpose IO applications.

• Single PXIe slot
• General purpose customizable I/O module
• Kintex UltraScale+ FPGA with optional PathWave FPGA support
• 28 bidirectional LVDS IO channels
• 4 general purpose IO channels
• 8 bidirectional general-purpose trigger I/O channels
• Optional timing correlation and HVI-2 sequencer support / PathWave Test Sync Executive support

• Keysight M5302A Data sheet

• Keysight M5302A User Manual

For Keysight Premium Used listings like-new accessories (e. g. a power cord) are included.

Other accessories that are not listed and included in the offer can be purchased separately at an extra cost with your purchase of a Keysight Used or Keysight Premium Used unit. Please specify in the comment field which additional accessories or support you are interested in.

For separate or post-purchase ordering, please contact your local Keysight office or Keysight Partner here. Or check our online store if available for your region here.
