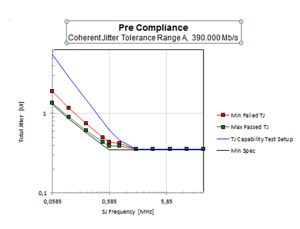

Accurate and automated RX test for compliance and characterization of UHS-II hosts and devices

  • Supports RX testing for hosts with ability to lock pattern generator to reference clock
  • Support RX testing of devices with ability to inject coherent and non-coherent jitter
  • Reduced test time with automated RX test software
  • Protect investment that can be re-used for other multi-gigabit device test, like MIPI M-PHY,PCIe, USB3, SATA, DisplayPort, etc.

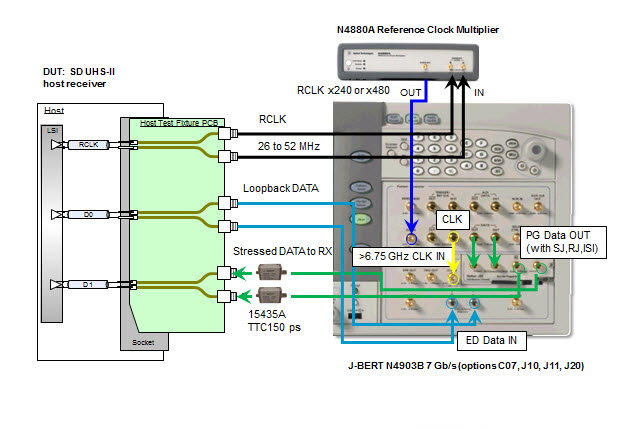

SD UHS-II Host RX Test Setup Sample Configuration (Host Test)





Non Keysight Accessories:

  • UHS-II test fixture (supplied by Astek and Bitifeye)
