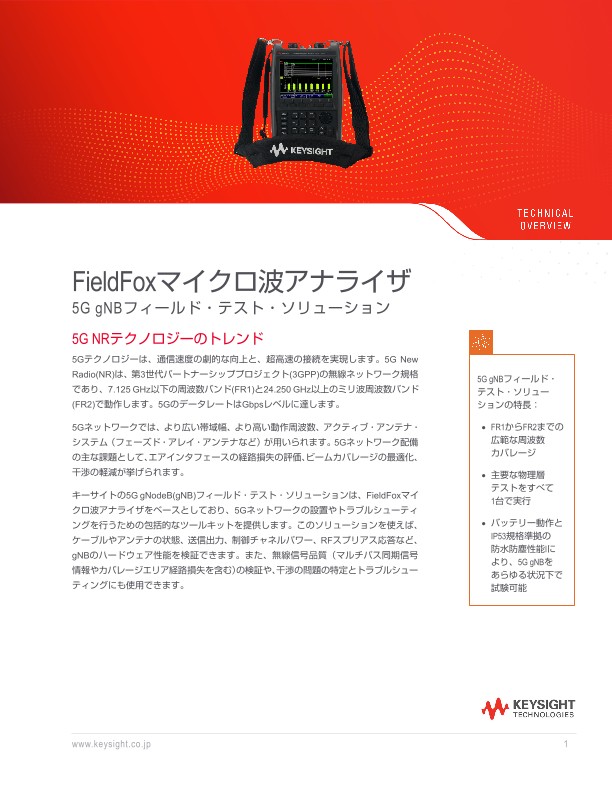

FieldFoxマイクロ波アナライザ – 5G gNBフィールド・テスト・ソリューション

Here is a possible marketing overview based on the PDF open in this browser tab: Keysight's FieldFox Microwave Analyzers are the ideal solution for 5G gNB field test and deployment. They offer a complete toolkit for RF engineers and technicians to install and troubleshoot 5G networks, covering both FR1 and FR2 frequency bands. They can verify hardware gNB performance, such as cable and antenna conditions, transmit power, control channel power, and RF spurious responses. They can also verify signal quality over the air, including multipath synchronization signal information and coverage area path loss, as well as identify and troubleshoot interference issues. FieldFox analyzers support various modes and features for 5G gNB field test, such as: - Real-time spectrum analysis (RTSA) mode to quickly and reliably detect 5G signals and the location of the SSBs, as well as beamforming performance and interference issues. - 5G NR OTA mode to capture and demodulate over-the-air transmissions of 5G NR FR1 and FR2 control channels, providing key performance indicators, such as physical cell ID, received power levels, and beam index information. - Component carrier power measurements in Channel Scanner mode to measure power levels from different LTE and 5G base stations in a single measurement. - 5G mmWave path loss characterization with an external mixer to downconvert mmWave frequency to intermediate frequency (IF) and measure signal power level in spectrum analyzer or RTSA mode. - gNB coverage test with phased array antenna solution to perform 2D scan heat map, polar antenna pattern, boresight scan, and indoor and outdoor mapping with geotagging. - EMF exposure evaluation with FieldFox to measure total field strength across the frequency band of interest and use pass/fail limit testing with a triaxial isotropic antenna. - 5G NR spectrum emissions mask measurements to characterize transmitting signals when measuring power from in-band and out-of-band emissions at specific frequency bandwidths and offsets relative to total carrier power. - Periodic frame trigger synchronized with GPS to isolate 5G NR uplink channel from downlink channel using frame trigger synchronized to GPS at 1 PPS. - PathWave VSA software connection to analyze digitally modulated signals simultaneously in the modulation, time, and frequency domains, providing useful insights into modulation quality with measurement display views. FieldFox analyzers are battery-powered and IP53 design test of 5G gNBs under all conditions. They can handle routine maintenance, in-depth troubleshooting, and everything in between. They deliver precise microwave and mmWave measurements wherever you need to go. To learn more about FieldFox Microwave Analyzers – 5G gNB Field Test Solutions, please visit www.keysight.com/find/fieldfox or contact your local Keysight office. You can also download application notes, watch videos, and learn more about 5G solutions at www.keysight.com/find/5g.
