Highlights

Design, Test, and Deliver Your Next Breakthrough with Benchmark Performance in Signal Analysis

PXA signal analyzers are ideally suited for high-performance research and development (R&D) applications in aerospace/defense and commercial wireless communications. The PXA analyzes signals over wider bandwidths, reduces measurement uncertainty, and reveals previously hidden signals with noise floor extension (NFE). Unravel complex signals through the PXA’s broad set of measurement applications and demodulation capabilities or add real-time spectrum analysis capabilities with an upgradeable option.

  • Analyze more with a wide frequency range of 2 Hz to 50 GHz with up to 510 MHz analysis bandwidth
  • See small signals in the presence of large ones with up to 75 dB of spurious-free dynamic range (SFDR)
  • Extend the frequency up to 110 GHz with Keysight smart mixers
  • Record, analyze, and simulate real-world scenarios with gap-free streaming up to 255 MHz
  • Simplify application-specific testing with X-Series apps
  • Perform deeper troubleshooting with the 89600 VSA software
  • Capture transient or intermittent signals with optional real-time spectrum analysis capabilities
  • Meet stringent data security requirements with a removable solid-state drive and other optional features

Quickly Find and Measure Dynamic Signals with PXA Signal Analyzers

PXA signal analyzers enable you to quickly find and measure signals of interest in complex and dynamic environments. This is especially important in radar, electronic warfare, or signal intelligence systems. Using the real-time spectrum analysis mode, you can trigger signals with a mask and even view signals in the time domain. Quickly link cause and effect with our PXA signal analyzers.

WICHTIGSTE SPEZIFIKATIONEN

Frequency
2 Hz to 50 GHz
DANL @1 GHz
-174 dBm
Maximum Analysis Bandwidth
510 MHz
Maximum Real-Time Bandwidth
510 MHz
Phase Noise @1 GHz (10 kHz offset)
-136 dBc/Hz
Type
Benchtop
Frequency
DANL @1 GHz
Maximum Analysis Bandwidth
Maximum Real-Time Bandwidth
Phase Noise @1 GHz (10 kHz offset)
Type
2 Hz to 50 GHz
-174 dBm
510 MHz
510 MHz
-136 dBc/Hz
Benchtop
Mehr anzeigen
Bandwidth Options:
25 standard, 40, 85, 160, 255, 510 MHz
DANL @1 GHz:
-174 dBm
Frequency:
2 Hz to 50 GHz
Frequency Options:
3.6, 8.4, 13.6, 26.5, 44, 50 GHz, Mixers to 1.1THz
Maximum Analysis Bandwidth:
510 MHz
Maximum Real-Time Bandwidth:
510 MHz
Overall Amplitude Accuracy:
±0.19 dB
Performance Level:
◆◆◆◆◆◇
Phase Noise @1 GHz (10 kHz offset):
-136 dBc/Hz
Type:
Benchtop
TOI @1 GHz (3rd Order Intercept):
+22 dBm

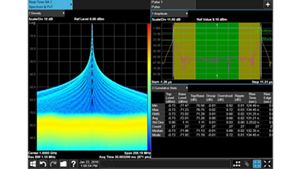

X-Series Applications — Simplify Complex Measurements and Deliver Repeatable Results

Understand the performance of your cellular, wireless, and aerospace/defense devices and designs with downloadable X-Series applications.

  • Gain more insight into device performance from parametric measurements to the latest standards-compliant wireless measurements, including LTE and WLAN
  • Speed your time-to-insight with integrated applications that put consistent measurements at your fingertips
  • Speed time-to-market with the same measurements leveraged across design, validation, and production
  • Leverage built-in measurement expertise to quickly understand signals and device performance
  • Share applications across multiple instruments with available transportable licenses

Millimeter-Wave: Details Matter for Successful Measurements

Measurements at millimeter-wave frequencies require extra care. Decisions that impact measurements at lower frequencies can lead to connection loss or compromises in accuracy and repeatability at higher frequencies. Pay close attention to the details of your components for successful millimeter-wave measurements.

Standard Configurations

Interested in a N9030B?

Request a Quote for the N9030B PXA Today!
