Accessories

• x1 connector to match up with the M9045B
• x8 connector to match up with M9502A, M9505A, or M9021A
• 2.0 m length

The Y1200B PCIe cable is used with the M9045B to connect an M9502A/M9505A AXIe chassis or M9018A PXIe Chassis with M9021A cable interface to a laptop computer.

The Keysight AE6090A MultiGBASE-T1 noise injection fixture provides reliable and convenient noise injection. A coupling mechanism is necessary to inject noise from the Keysight arbitrary waveform generator (AWG) into the automotive Ethernet multiGBASE-T1 link. The AWG, amplifier, and coupling circuit must collectively ensure that the noise levels meet the receiver's input noise specifications.

• Validates the performance of automotive Ethernet receivers for 2.5G, 5G, and 10GBASE-T1 links, specific to MultiGBASE-T1 receiver testing.
• Ensures accurate noise injection from the AWB into the Ethernet link.
• Provides dependable and high-frequency connections with minimal signal loss for all subminiature version A (SMA) connectors.
• Requires two AE6960A MDI heads (H-MTD to SMA) and two SMA (primary)-to-SMA (primary) adapters to connect to the H-MTD cable.

The MultiGBASE-T1 noise injection fixture provides a convenient method to couple noise generated by an AWG to your DUT, enabling you to integrate the necessary noise profiles into the channel. This fixture features a compact and durable automotive-grade housing with coax connectors.

The AE6090A fixture is necessary for automotive Ethernet 2.5 / 5 / 10GBASE-T1 receiver testing AE6920R software.

Clock Source For Up To Four M8199A AWG Modules

The M8008A is designed as sample clock source for the M8199A 128/256 GSa/s Arbitrary Waveform Generator and the M8199B 256 GSa/s Arbitrary Waveform Generator. It can also be used as a standalone low-jitter clock source for other applications. It comes as a 1-slot AXIe module, which allows the M8008A plus up to two M8199A or M8199B AWG modules to be plugged into a single 5-slot AXIe chassis.

Key Benefits

• 32 - 64 GHz continuous frequency range
• Output amplitude up to +10 dBm
• Very low intrinsic jitter and wideband phase noise
• 4 clock outputs can drive up to four M8199A AWG modules for 16 channels
• Auxiliary clock output can be used as a trigger and precision time-base signal for a DCA

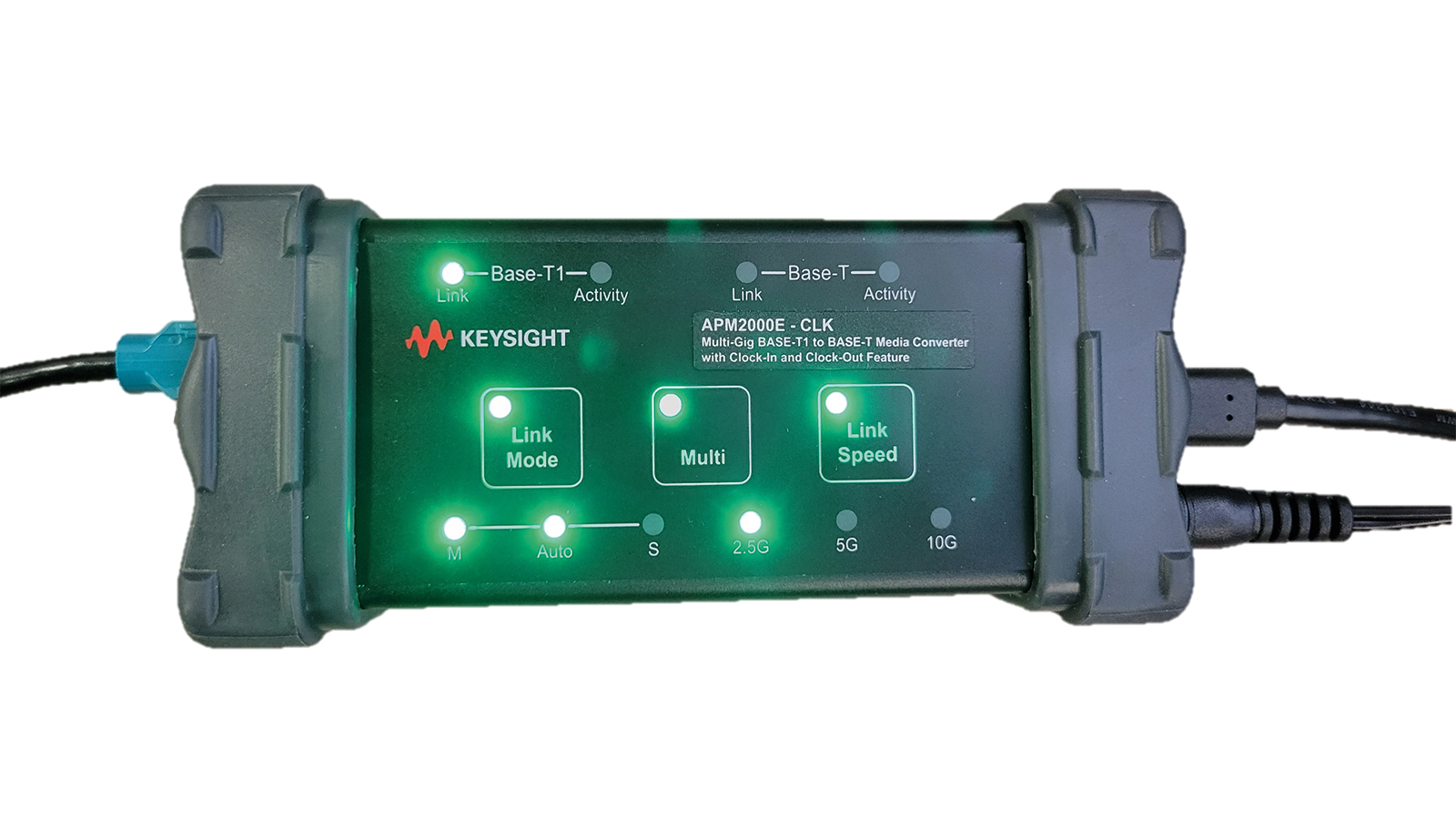

MultiGBASE-T1 Media Converter

The Keysight APM2000E enables you to convert the Ethernet physical layer from MultiGBASE-T1 to MultiGBASE-T. 

• Utilizes the Marvel MV-Q3244 PHY for the 2.5/5/10GBASE-T1 physical layer.
• Compliant with OPEN Alliance’s TC10 Automotive Ethernet Sleep/Wake-up requirements.
• Intuitive LED indicators:
  • PHY configuration, link status, and network activity
  • Bar graph display of MultiGBASE-T1 Signal Quality Indicator (SQI) in real-time
• Membrane buttons enable device configuration without software:
  • Switch between 2.5G, 5G, and 10G link speeds
  • Select the MultiGBASE-T1 PHY clock configuration
• The converter uses the H-MTD connection system designed for MultiGBASE-T1.
• Ruggedized USB Type-C connector for device configuration and firmware updates.
• Order APM2000E-CLK for external clock input.

The APM2000E media converter is required for Automotive Ethernet MultiGBASE-T1 receiver testing with Keysight AE6920R software.

Use with the following solution: AE6000R.

Applications

• Transportable applications (can also be rack-mounted)

Functionality

• 2 slots for AXIe instrument modules
• Embedded AXIe system module
• High Power, 200W Cooling per slot

Performance characteristics

• Gigabit LAN connection to each module slot
• Gen 2 PCIe x8 interface to system controller provides up to a 4 GB/s data rate from external controller
• Gen 2 PCIe x4 links to each module slot (maximum 2 GB/s data rate)

The M9502A AXIe Chassis is fully compatible with the AXIe 1.0 specification. It includes an embedded system module (ESM) that does not take up an instrument slot. This system module performs the chassis management functions contained in the AXIe specification. Additionally, it provides PCI and LAN interfaces for connection to an external computer, external clock and trigger connectors, and Keysight-exclusive, inter-chassis synchronization connectors. The local bus implemented in the M9502A provides the maximum 62 pairs allowed by the AXIe specification. Combine the M9502A with the M9048A PCIe Desktop Adaptor to achieve the highest system bandwidth.

The M9502A is perfect for transportable applications that require a higher performance of AXIe. It can also be installed in a rack and the instrument modules slots are arranged horizontally to minimize rack space. This arrangement combined with a high-performance cooling system allows the chassis to be racked in only 2U of space. The M9502A is also designed to be easily maintained as both the power supply and fan tray can be removed while the chassis remains in the rack.

Applications

• Transportable applications (can also be rack-mounted)

Functionality

• 5 slots for AXIe instrument modules
• Embedded AXIe system module
• High Power, 200W Cooling per slot

Performance characteristics

• Gigabit LAN connection to each module slot
• Gen 2 PCIe x8 interface to system controller provide up to a 4 GB/s data rate from external controller
• Gen 2 PCIe x4 links to each module slot (maximum 2 GB/s data rate)

The M9505A AXIe Chassis is fully compatible with the AXIe 1.0 specification. It includes an embedded system module (ESM) that does not take up an instrument slot. This system module performs the chassis management functions contained in the AXIe specification. Additionally, it provides PCI and LAN interfaces for connection to an external computer, external clock and trigger connectors, and Keysight-exclusive, inter-chassis synchronization connectors. The local bus implemented in the M9505A provides the maximum 62 pairs allowed by the AXIe specification. Combine the M9505A with the M9048A PCIe Desktop Adaptor to achieve the highest system bandwidth.

The instrument modules slots are arranged horizontally to minimize rack space. This arrangement combined with a high-performance cooling system allows the chassis to be racked in only 4U of space. The M9505A is also designed to be easily maintained as both the power supply and fan tray can be removed while the chassis remains in the rack.

• Size: 9 inches x 8 inches x 1½ inches
• Material: Cordura^®
• Closure: zipper
• Attachment: nylon straps wrap around instrument with velcro closures

The Keysight 34162A Cordura^® pouch fits on top of the Keysight 34460A, 34461A, 34401A, 33210A, and 33220A Function / Arbitrary Waveform Generators and the 34405A, 34410A, and 34411A Digital Multimeters. Its dual zippered compartments can hold manuals, power cords and other accessories. It will fit most 2-slot, half rack sized Keysight instruments.

Keysight offers a variety of accessories for digital multimeters. Learn more about Keysight new digital multimeter accessories.


The Keysight 34161A Cordura® pouch fits on top of the Keysight 34401A and 34420A multimeters, as well as the 34970A and 34972A data acquisition / switch unit. Its dual-zippered compartments can hold manuals, power cords, and other accessories. It will fit most 2-slot, half-rack-sized Keysight instruments.

• Size: 11 inches x 8 inches x 1½ inches
• Material: Cordura®
• Closure: zipper
• Attachment: nylon straps wrap around instrument with velcro closures

• Keysight 34401A and 34420A DMMs

• Keysight 34970A data acquisition / switch unit
• Keysight 33120A and 33250A sources
• Keysight 53131A, 53132A, and 53181A counters
• Most E3600 power supplies and other 2-slot, half-rack-sized Keysight products

The Keysight DAQA194A (5061-8769) dual lock link kit is recommended for side-by-side combinations and includes links for instruments of different depths. This kit can be used with the DAQA191A 2U Dual Flange Kit to mount two Keysight System II (half-width, 2U height - 88.1mm) instruments side-by-side.

The Keysight DAQA194A (5061-8769) dual lock link kit is compatible with the Keysight DAQ970A, 34970A, and 34972A data acquisition systems, the Keysight 34460A, 34461A, 34465A, 34470A, and 34420A DMMs, the Keysight 33500B and 33600A Series Arbitrary Waveform Generator.

For more information about DAQ, please visit Keysight data acquisition - DAQ page.

The Keysight 34194A (5061-8769) dual lock link kit is recommended for side-by-side combinations and includes links for instruments of different depths.  This kit can be used with the 34191A 2U Dual Flange Kit to mount two Keysight System II (half-width, 2U height - 88.1mm) instruments side-by-side.

The Keysight 34194A dual lock link kit is compatible with the Keysight 34460A, 34461A, 34465A, 34470A DMMs, the Keysight 34970A/34972A Data Acquisition/Switch Units, the Keysight 531xxA and 53200 Series frequency counters, the Keysight 33500 and 33600 series function generators, most E3600 power supplies and other 2-slot, half rack sized Keysight products.

Learn more about Data Acquisition Accessories and Options

The Keysight M8053A interference source provides the bandwidth needed for 224 Gbps in data centers and future-generation testing for PCIe^®. It supports random-level interference and sinusoidal-level interference simultaneously for optical receiver stress tests. Features include the following:

• Common mode and differential mode sinusoidal interference (CMSI, DMSI), two-tone bandwidth adjustable up to 64 GHz
• Two channels with 64 GHz bandwidth and differential outputs
• Adjustable amplitude up to 1.25 V s.e.
• 2-slot AXIe module for combined configurations with M8050A high-performance BERT
• Graphical user interface and remote control via Keysight M8070B system software for M8000 series of BER test solution
• Coupler pair for injecting the interference signal into a differential pattern stream


The target application is a receiver test for devices with 1.6T data center applications, future generations of PCIe, and other high-speed digital interfaces.

• Single-slot module

• Installed in empty slots to ensure proper airflow in the AXIe chassis

In order to ensure proper airflow and cooling in an AXIe chassis, filler modules must be installed in empty slots. The Y1221A AXIe filler module is one-slot wide and is included with the M9502A and M9505A AXIe Chassis. The Y1221A must be ordered separately with the M9514A chassis.
