Automated GDDR7 Receiver Compliance Testing

GDDR7 receiver compliance testing requires accurately calibrated PAM3 and NRZ stressed signals, BER-based sensitivity measurements, and repeatable validation across a wide range of operating conditions. Engineers must establish the specified jitter, intersymbol interference (ISI), noise, voltage swing, and stressed-eye conditions at the receiver input before meaningful measurements can begin. Small variations in impairment levels or calibration accuracy can directly affect measured receiver margin and compliance results, making measurement consistency a key challenge. In addition to meeting the required stress conditions, engineers must verify receiver sensitivity, determine tolerance to degraded signal quality, and evaluate performance at the target bit error ratio (BER). These measurements must remain consistent across different device types, speed grades, and operating conditions to support compliance testing, device characterization, and margin analysis while providing confidence that measured performance reflects actual receiver behavior rather than variation in the test setup.

Engineers typically begin by selecting the device type, signaling mode, speed grade, and required receiver test conditions before configuring the stressed stimulus. The stimulus is calibrated to establish the required combination of jitter, ISI, noise, voltage swing, and stressed-eye characteristics at the receiver input. After calibration, the stressed signal is applied to the device under test while BER measurements evaluate receiver performance across amplitude and timing conditions. Receiver sensitivity and stressed-eye tolerance are determined by varying signal amplitude and timing offset while maintaining the specified impairment conditions. Additional characterization measurements can extend beyond fixed compliance points to evaluate operating margin and identify performance limits. BER measurements collected across multiple operating points are used to determine pass/fail behavior, calculate numerical margin, and assess receiver performance. Test conditions, calibration results, BER data, and margin measurements are retained for analysis, comparison, documentation, and engineering review.

GDDR7 Receiver Compliance Test Solution

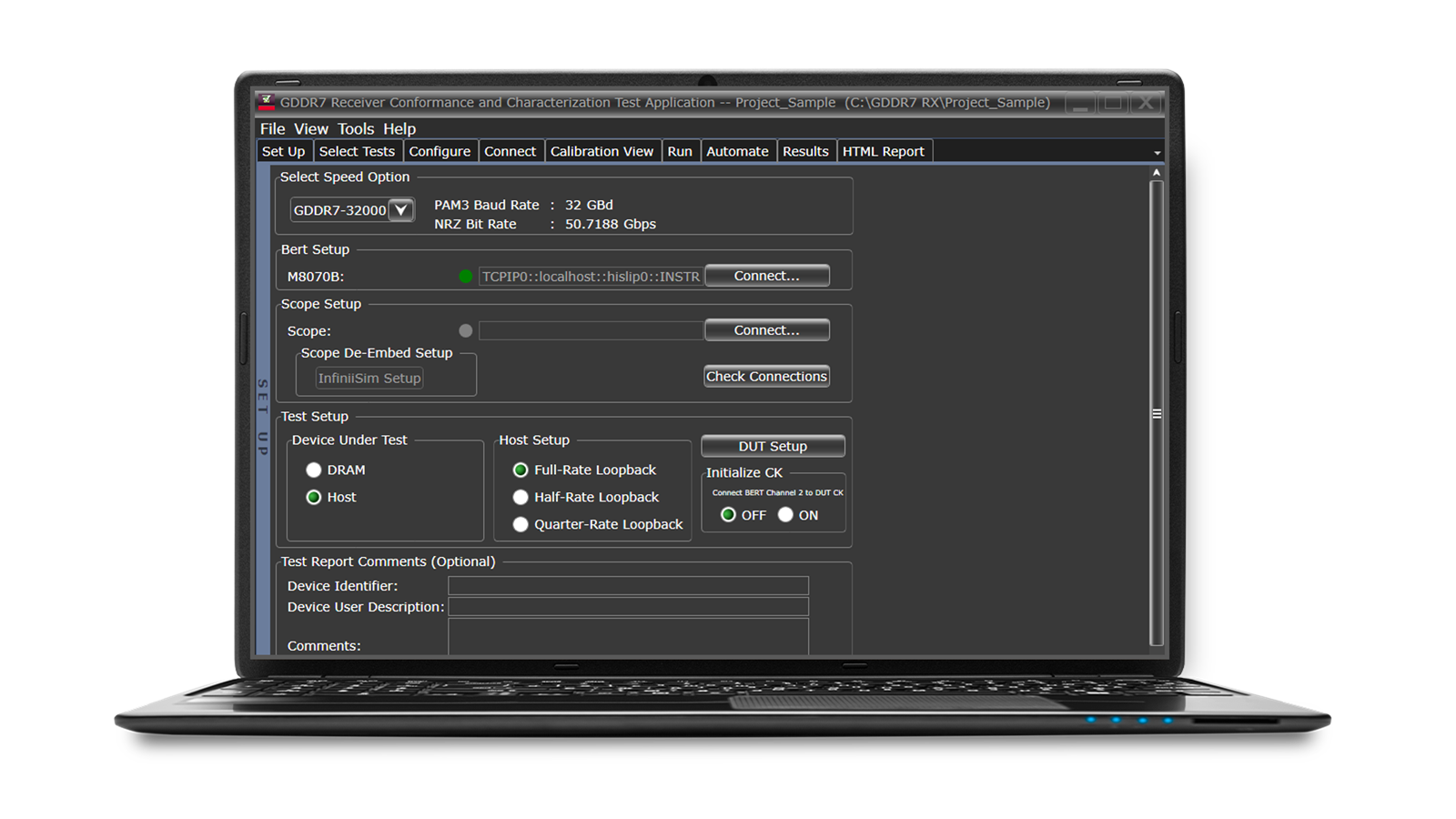

GDDR7 receiver compliance testing requires calibrated PAM3 and NRZ stressed signals, BER-based receiver measurements, and repeatable margin analysis across defined test conditions. The Keysight GDDR7 receiver compliance test solution includes a 64 GBaud high-performance BERT, a GDDR7 receiver conformance and characterization test application, and a 50 GHz Pro oscilloscope. The application coordinates instrument setup, DUT configuration, stressed-signal calibration, receiver testing, results analysis, and report generation through a guided workflow. The high-performance BERT generates PAM3 and NRZ stressed signals with controlled jitter, ISI, noise, and amplitude impairments, while the oscilloscope verifies calibration conditions at the receiver input. Automated calibration procedures help establish the required stressed-eye conditions before measurements begin, improving measurement consistency and reducing setup complexity. Engineers can configure receiver sensitivity, stressed-eye, target BER, confidence level, amplitude, and timing-offset test conditions while automating measurements across multiple operating points. BER results collected during testing support receiver characterization, margin analysis, and compliance validation through 32 Gbaud. Calibration data, graphical measurements, numerical margin results, and test conditions are retained for analysis and documentation, while automated HTML reporting captures BER performance, compliance status, and measurement results for engineering review and regression testing.
