Differential Impedance Validation

Verifying differential interconnect impedance requires accurate characterization of transmission paths used in high-speed digital interfaces such as Universal Serial Bus (USB), Peripheral Component Interconnect Express (PCI Express), Ethernet, and other serial communication standards. The measurement configuration typically includes a vector network analyzer, an electronic calibration module, and time-domain analysis software to acquire broadband scattering parameter measurements and transform them into impedance profiles using time domain reflectometry (TDR). Engineers can evaluate printed circuit board traces, vias, connectors, cable assemblies, and differential transmission paths without physically modifying the device under test.

Time-domain analysis converts measured frequency-domain data into impedance-versus-distance information, allowing discontinuities to be identified and correlated with their physical locations along the transmission path. Differential and common-mode impedance, return loss, insertion loss, and reflection behavior can be evaluated within a single workflow. The resulting measurements support signal integrity analysis, fixture removal, channel validation, and design optimization while providing simulation-ready data that improves correlation between measured hardware performance and high-speed channel models.

Differential Interconnect Solution

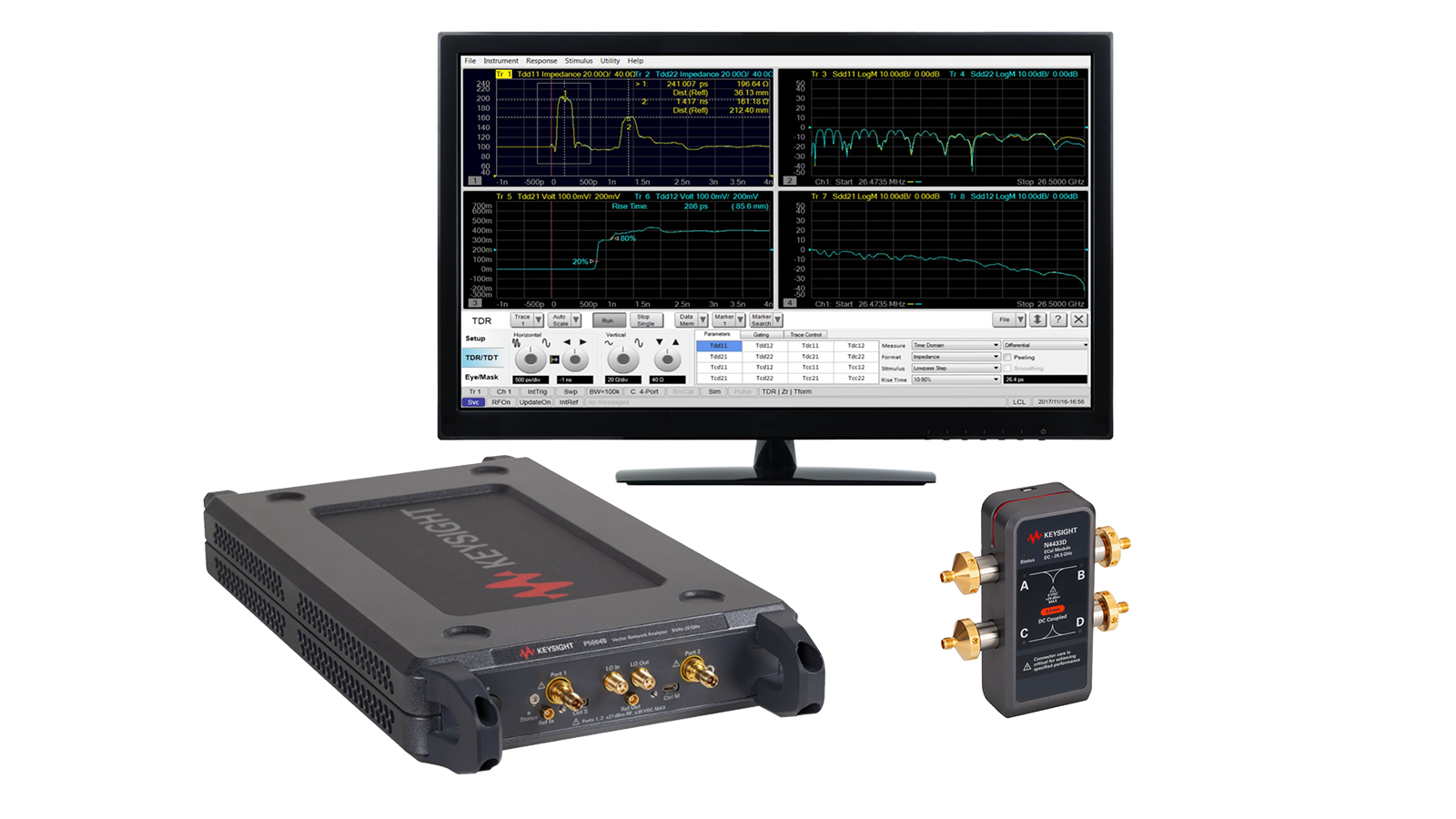

Accurate differential interconnect validation requires broadband scattering parameter measurements combined with time-domain analysis to identify impedance discontinuities throughout the signal path. The workflow begins with calibration using an electronic calibration module, followed by broadband measurements acquired with the vector network analyzer. Time Domain Analysis Software transforms the measured scattering parameters into impedance profiles, enabling engineers to locate reflections, evaluate differential impedance, perform fixture removal, and analyze transmission behavior without requiring a dedicated time-domain reflectometer. The solution combines a Streamline USB Vector Network Analyzer, Time Domain Analysis Software, and an Electronic Calibration Module to provide an integrated workflow from calibrated data acquisition through automated impedance analysis and reporting. Engineers can optimize printed circuit board layouts, validate connector transitions, compare design revisions, troubleshoot signal integrity issues, and verify high-speed serial channels used in USB, PCI Express, Ethernet, and other high-speed digital applications before prototype release.
Get Quote

See Block Diagram of Differential Interconnect Solution

How to Verify Differential Interconnect Impedance for High-Speed Designs

Explore Products in Our Differential Interconnect Solution
