In this deep dive into the 5G NR (New Radio), we will review the 3 major use cases: enhanced mobile broadband access (eMBB), massive machine communications (mMTC), mission-Critical machine communications (URLLC) and the technology and the Release 15 technology that will make it possible.
Lesson 1 - An Introduction to 5G Technology
Introduces the fundamentals of 5G New Radio (known as NR) Release 15 (the first release) and how it applies to a variety of industry use cases. It covers the key features of 5G NR, such as carrier aggregation, millimeter wave (mmWave) frequencies, and beamforming.
Lesson 2 - New Radio Non-Standalone and Standalone Differences
Learn the differences between Non-Standalone (NSA) and Standalone (SA) 5G NR. NSA is a deployment option that allows 5G NR to be deployed alongside 4G LTE. SA is a deployment option that allows 5G NR to operate independently of 4G LTE.
Lesson 3 - Carrier Aggregation & Bandwidth Adaptation
Carrier aggregation, which is a technique that allows 5G NR to aggregate multiple carrier frequencies, is covered. This can be used to increase the overall bandwidth available for 5G NR users.
Lesson 4 - Numerology & Frame Structure
Discover the numerology and frame structure of 5G NR. Numerology refers to the number of subcarriers and symbols used in each frame. Frame structure refers to the way that the subcarriers and symbols are arranged in each frame.
Lesson 5 - Waveforms & Modulations
Waveforms and modulations used in 5G NR is covered. Waveforms are used to transmit data over the air. Modulations are used to encode data onto the waveforms.

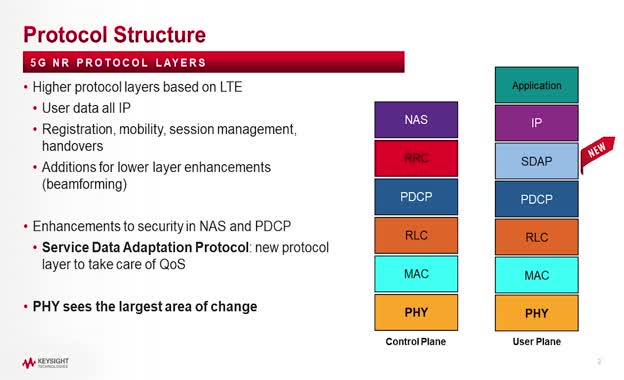

Lesson 6 - Protocol Structures, Layers, Signals & Channels
Learn the protocol structures, layers, signals, and channels used in 5G NR. Protocol structures define how data is exchanged between different parts of the 5G NR network. Layers refer to the different functional blocks that make up the 5G NR protocol stack. Signals are used to carry data between different layers. Channels are the physical paths that data travels over in the 5G NR network.
Lesson 7 - Beams, Beamforming & Beam Management
Beams, beamforming, and beam management in 5G NR are discussed. Beams are used to focus the radio signal in a particular direction. Beamforming is a technique that uses multiple antennas to create beams. Beam management is used to control the beams in the 5G NR network.
5G Network Emulation Solutions
End-to-End Test Coverage
Delivering high-quality 5G New Radio (NR) devices requires innovative network emulation solutions (NES) for the entire 5G ecosystem, including non-standalone (NSA) and standalone (SA) use cases, sub-6 GHz and millimeter-wave (mmWave) frequencies, and all test domains.
Achieving a first-to-market advantage requires advanced solutions to accelerate the 5G device workflow from development to deployment that span protocol, radio frequency (RF) / radio resource management (RRM), and functional and performance testing.
Keysight’s portfolio of network emulation solutions streamlines the end-to-end 5G device workflow with platforms that share common measurement science. These solutions have a protocol stack that includes 5G NR, Long-Term Evolution (LTE), Wideband Code Division Multiple Access (WCDMA), cellular vehicle-to-everything (C-V2X), automation, and logging.
Wireless test platform for 5G device development and acceptance solutions

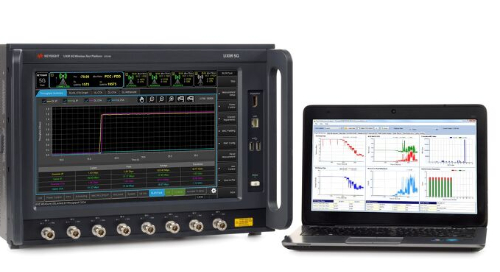

The Keysight E7515B UXM 5G wireless test platform provides the foundation for Keysight’s 5G network emulation solutions used during device development and acceptance testing. It is a highly integrated signaling test platform with multiformat stack support, rich processing power, and abundant RF resources. The E7515B UXM 5G wireless test platform supports the latest 3rd Generation Partnership Project (3GPP) releases.
• Initiate a 5G call with a device under test (DUT) in different 5G NR deployment modes (NSA and SA) and frequency bands (FR1 and FR2).
• Perform a signaling test for device RF characteristics, protocol compliance, and functional key performance indicators.
• Optimize your lab space and support extended test coverage in a single unit.
• Get high RF port density with scalable bandwidth — 8 Tx downlink (DL) and 4 Rx uplink (UL) RF ports at 800 MHz bandwidth, and 4 Tx (DL). Includes 2 Rx (UL) RF ports at 1600 MHz bandwidth.
• Improve your advanced performance testing with an integrated baseband I / Q (BBIQ) interface and baseband fading.
Keysight’s E7770A common interface unit and the Keysight M1740A mmWave transceiver for 5G are key components in Keysight’s 5G solutions, providing the capability to verify the performance of 5G chipsets, devices, and base stations.
Wireless test set for 5G device manufacturing solutions
Keysight’s E6640A EXM wireless test set provides an industry-proven platform for multidevice and multiformat, non-signaling manufacturing test in a single compact configuration.
Verifies RF Performance of Mobile Devices
• Perform state-of-the-art integrated automation and efficient sequencing using 5G NR waveform and measurement software.
• Scalable architecture ensures you are up-to-date with the latest cellular and wireless local area network (WLAN) chipset standards.
Reduces 5G Device Manufacturing Cost of Test
• Get 5G module performance testing over any 3GPP-defined mmWave band with a single remote radio head (RRH).
• Up to 4 devices tested simultaneously at mmWave frequencies.
• Streamline your calibration and integration activities.
5G Device Development
With Keysight’s 5G device development solutions, you can verify the signaling protocols and RF performance of the latest 5G chipsets and devices and validate user experience features and device performance.
5G Terms and Acronyms Defined
TERMS AND ACRONYMS
Common Terms & Acronyms
The promise of 5G is faster and more reliable communications. 5G opens doors to exciting new connections to Internet of Things (IoT) networks, autonomous driving, broadband wireless, and interruption-free video viewing. Whatever you develop 5G technology for, it will be imperative to understand design and test concepts and solutions across multiple dimensions. There are a lot of 5G terms and more on the way. We’ve got you covered – here’s a list of what’s out there today.
Second-generation digital cellular networks used by mobile phones, designed as a replacement for analog first-generation radio (1G). Designed primarily for voice using digital standards.
Third-generation wireless mobile telecommunications technology, required by International Mobile Telecommunications for the year 2000 (IMT-2000) standard from International Telecommunication Union (ITU) to support at least 200 kbps at peak rate. First mobile broadband utilizing IP protocols added text and image messaging to voice phone calls.
3GPP – 3rd Generation Partnership Project
A mobile communications industry collaboration that organizes the development and management of mobile communications standards. With respect to 5G, 3GPP is managing the evolving 5G standards.
Fourth-generation mobile telecommunications technology, designed to succeed 3G. A mobile broadband standard designed to support an all Internet Protocol (IP) network for calls, video, data, and web access. The performance goals of 4G are 100 Mbps for high-speed mobile applications such as automobiles, and 1 Gbps for low-mobility use cases including pedestrians and fixed-location access.
Fifth-generation of mobile telecommunications technology, required by International Mobile Telecommunications for the year 2020 (IMT-2020) standard to support an all Internet Protocol (IP) network. Supports faster data rates, higher connection density, and much lower latency.
AAT – Antenna array tool
Software tool for embedding antenna parameters and radiation patterns in test scenarios.
ACP – Adjacent channel power
The power contained in a frequency channel next to the specified channel.
ACPR – Adjacent channel power ratio The ratio of the power contained in a specified frequency channel bandwidth relative to the total carrier power.
ACLR – Adjacent channel leakage ratio
The ratio of the transmitted power on the assigned channel to the power received on the adjacent channel after passing through a root raised-cosine filter.
Undesirable distortion caused by amplitude variation in a communications system.
