Establish Trusted Physical-Layer Access for LPDDR6 Validation

Low-Power Double Data Rate 6 (LPDDR6) increases memory bandwidth by raising per-pin data rates beyond 10.6 gigabits per second (Gbps), widening the interface to dual 12-bit subchannels, and integrating sideband information directly into the data stream. These changes improve bandwidth-per-watt for artificial intelligence (AI) and high-performance systems, but they also tighten voltage and timing margins at the physical layer. As signaling speeds increase and operating voltages drop below one volt, the probing interface itself becomes a critical part of the measurement system.

Before accurate LPDDR6 transmitter or receiver compliance testing can be performed, engineers must ensure that probes, probe heads, and attachment methods do not distort the signals being measured. Excess probe capacitance, improper grounding, or bandwidth limitations can reduce eye opening, alter edge rates, and introduce ringing that masks true device behavior. High-fidelity, low-loading probing is essential to preserving wide non-return-to-zero (NRZ) signaling margins for LPDDR6 eye, timing, and bit error rate (BER) analysis.

LPDDR6 High-Speed Probing Measurement Solution

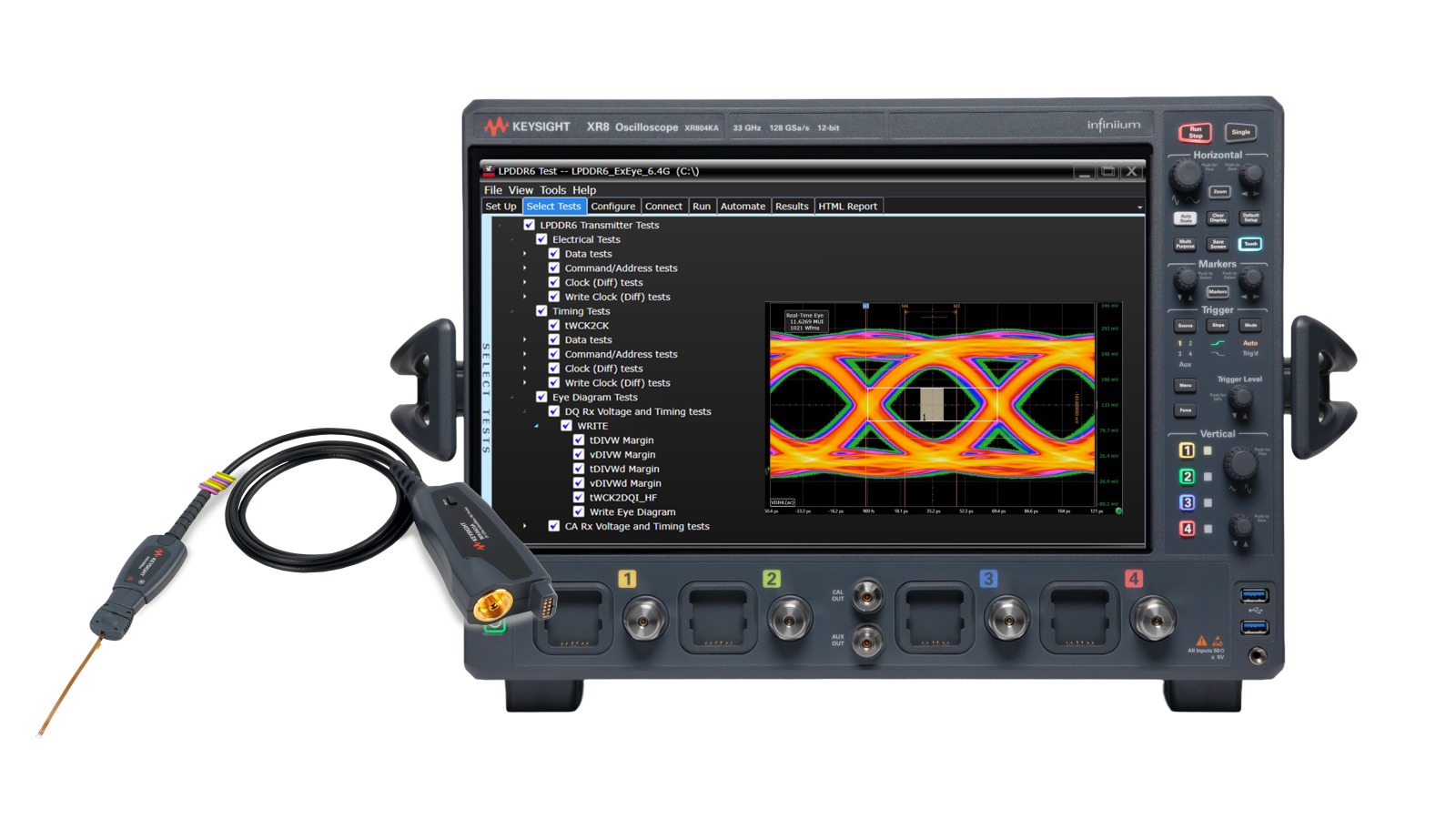

LPDDR6 increases bandwidth-per-watt by raising per-pin data rates and lowering operating voltages, but the resulting tighter voltage and timing margins make low-loading, high-fidelity probing essential so that measurements reflect true device behavior. Keysight's LPDDR6 high-speed probing measurement solution combines high-bandwidth Pro benchtop oscilloscopes with low-capacitance probing technologies and optimized probe-head architectures. These probes are designed to provide reliable access to fine-pitch LPDDR6 signals while preserving edge rates, voltage swing, and timing relationships at the device pins. By establishing a trusted physical measurement interface, including appropriate probe selection, attachment technique, and grounding, engineers can ensure that LPDDR6 eye diagrams, timing margins, and extrapolated BER measurements used in transmitter and receiver compliance testing accurately represent real system performance.
