How to Detect Abnormal Power Consumption

+ Device Current Waveform Analyzer

Find Unexpected Current Behavior Across Extended Operating Cycles

Detecting abnormal power consumption is essential for identifying unexpected device behavior, optimizing energy efficiency, and validating product reliability. Engineers need to monitor current and voltage during startup, shutdown, standby, and normal operation to identify unusual current spikes, excessive power consumption, and changes in operating patterns. However, abnormal events may occur at unpredictable times, making them difficult to capture with short-duration measurements. Long-duration recordings can also generate large volumes of waveform data, making manual inspection time-consuming.

Continuous data logging is required to capture current and voltage waveforms over extended periods, enabling engineers to monitor power consumption and investigate missed events. Sampling rates up to 10 MSa/s and recording durations up to 100 hours, depending on configuration and storage, support analysis of transient events and long-term operating patterns. Current profiling, waveform playback, waveform analytics, and trend analysis help engineers identify unusual current consumption, detect anomalies, and investigate abnormal waveform patterns. These capabilities help pinpoint unexpected power consumption, evaluate device performance, and support power optimization and design validation.

Electronic Device Abnormal Power Consumption Detection Solution

Identifying abnormal power consumption requires more than measuring a device at a single point in time. Unexpected current behavior may occur intermittently or during specific operating conditions, making extended waveform capture and detailed analysis valuable for device characterization and design validation.

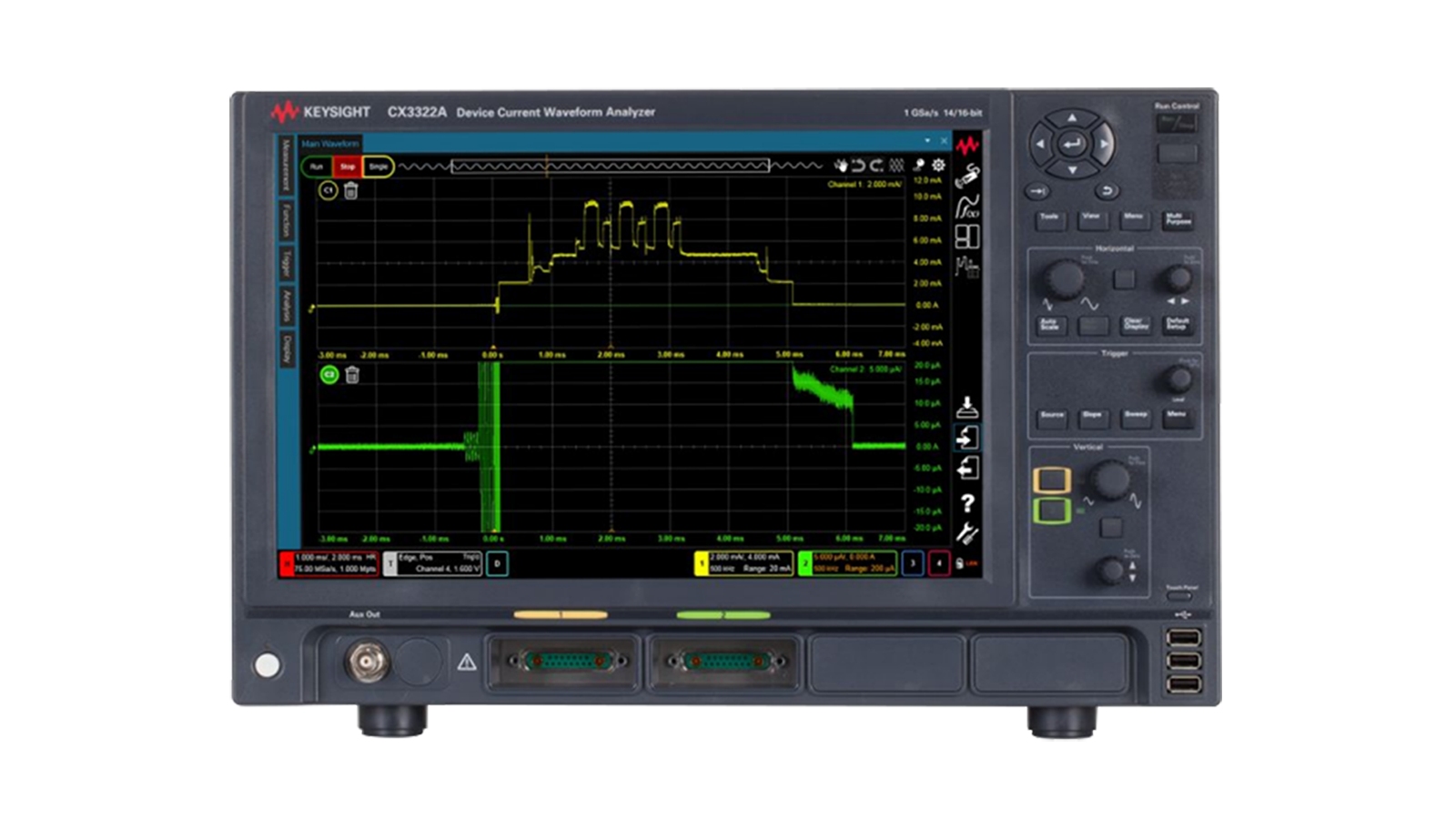

The Keysight Device Current Waveform Analyzer supports long-duration current and voltage waveform recording through data logger mode. Depending on the measurement configuration and storage conditions, it can record continuously at sampling rates of up to 10 MSa/s for as long as 100 hours. Engineers can use this capability to examine extended operating cycles and investigate waveform behavior that may not be visible in shorter measurements.
