Accessories

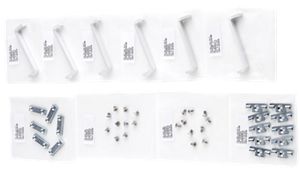

The Keysight 34194A (5061-8769) dual lock link kit is recommended for side-by-side combinations and includes links for instruments of different depths.  This kit can be used with the 34191A 2U Dual Flange Kit to mount two Keysight System II (half-width, 2U height - 88.1mm) instruments side-by-side.

The Keysight 34194A dual lock link kit is compatible with the Keysight 34460A, 34461A, 34465A, 34470A DMMs, the Keysight 34970A/34972A Data Acquisition/Switch Units, the Keysight 531xxA and 53200 Series frequency counters, the Keysight 33500 and 33600 series function generators, most E3600 power supplies and other 2-slot, half rack sized Keysight products.

Learn more about Data Acquisition Accessories and Options

• Rack Cabinet: System II or System II Plus

The Keysight 34193A (5063-9243) rackmount adapter kit is used to mount a single ½ module or two ¼ module width standard System II instruments 3U 132.6mm high instrument such as the Keysight E3631A to E3634A and E3646A to E3649A products.

• Rack Cabinet: System II or System II Plus works with any standard System II 3U 132.6mm high instrument such as the Keysight 6811B, 6812B, and 6813B.

The Keysight 34192A (5063-9214) dual rackmount flange kit secures the instrument to the front of the System II cabinet. This kit can be used with the 34194A Dual Lock Link Kit to mount two Keysight System II (half-width, 3U height) instruments side-by-side.

The Keysight 34192A dual rackmount flange kit is compatible with any standard System II 3U 132.6mm high instrument such as the Keysight 6811B, 6812B, and 6813B.

Please look at the link for more information about Keysight Performance AC Power supplies and related accessories.

• Rack Cabinet: System II or System II Plus works with the 34460A, 34461A, 34465A, 34470A, 34970A, 53131A, 53132A, 53181A, 33500 Series, 33600 Series and most other 2-slot, half rack sized Keysight products.

The Keysight 34191A (5063-9212) dual rackmount flange kit secures the instrument to the front of the System II cabinet. This kit can be used with the 34194A Dual Lock Link Kit to mount two Keysight System II (half-width, 2U height - 88.1mm) instruments side-by-side.

The Keysight 34191A dual rackmount flange kit is compatible with the Keysight 34460A, 34461A, 34470A DMMs, the Keysight 34970A/34972A Data Acquisition/Switch Units, the Keysight 531xxA and 53200 Series frequency counters, the Keysight 33500 and 33600 series function generators, most E3600 power supplies and other 2-slot, half rack sized Keysight products.

Learn more about Data Acquisition Accessories and Options

• Rack cabinet: System II or System II Plus

The Keysight 34190A (5063-9240) rackmount kit is designed for use with only one instrument, mounted on either the left or the right side of the rack. The kit includes one rack flange and one half-rack width filler panel, 4 screws to attach the instrument, 4 rack screws with nuts and installation instructions in English.

The Keysight 34190A is compatible with the Keysight 34460A, 34461A, 34470A DMMs, the Keysight 34970A/34972A  Data Acquisition/Switch Units, the Keysight 531xxA and 53200 Series frequency counters, the Keysight 33500 and 33600 series function generators, most E3600 power supplies and other 2-slot, half rack sized Keysight products.

Learn more about Data Acquisition Accessories and Options

The Keysight 46298SZ work surface is stationary and is designed to remain securely in place. The work surface provides a convenient work shelf utility area at the front of the rack. It can be used as a writing space or to hold accessories.

The RP5905C Rack Mount Kit includes everything needed to mount RP5900 series DC regenerative power supplies and EL4900 series DC electronic loads in a standard 2U rack space. It includes rack flanges, support rails, and attachment hardware for secure installation.

The RP5904C Rack Mount Kit includes everything needed to mount RP5900 series DC regenerative power supplies and EL4900 series DC electronic loads in a standard 1U rack space. It includes rack flanges, support rails, and attachment hardware for secure installation.

The RP7909A rack mount kit makes it easy to integrate a 5kW or 10 kW RP7900 Series regenerative power system into a 19-inch EIA rack cabinet. This rack mount kit includes slide rails, and flange mounts (without ears).

This rack mount kit is compatible with the following models: RP7931A - RP7963A.

The N5740A rack-mount slide kit makes it easy to integrate an N5700, N8700, and DP5700 series system DC power supply into a test rack by providing all the necessary hardware to rack mount an N5700 series power supply and a DP5700 series power supply in only 1 U of rack space or to rack mount an N8700 series power supply in 2 U of rack space.

This rack-mount kit is compatible with the following models:

• N5700 series: N5741A–N5752A, N5761A–N5772A,
• N8700 series: N8731A–N8742A, N8754A–N8762A.
• DP5700 series: DP5741AL/H/S–DP5756AL/H/S, DP5761AL/H–DP5776AL/H

The DP5701A half-rack mount kit makes it easy to integrate your 1.5 kW DP5700 series DC power supplies into a standard rack setup. Use it to securely mount a half-rack unit alone or alongside a full-rack power supply for a clean, professional installation.

Compatible Models (for 1.5 kW models only):

DP5721A, DP5722A, DP5723A, DP5724A, DP5726A, DP5728A, DP5730A, DP5731A, DP5733A, DP5736A

The DP5705A option enabler activates the SD memory feature on all DP5700 Series DC power supplies. This option enables data logging and memory storage via the removable SD memory interface, allowing users to save and transfer test data for enhanced workflow flexibility easily.
