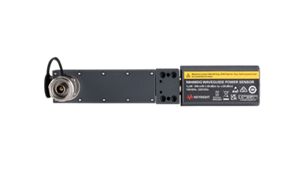

N8486DG 140 to 220 GHz Waveguide Power Sensor
Enables precise and direct waveguide measurements in the G-band frequency range using a WR-05 flange connector
Starting from
Highlights
- Covers an extensive frequency range from 140 to 220 GHz (G-band)
- Offers dynamic range from -30 to +20 dBm (Option 100 for continuous wave, CW, and Average power measurements for 140 to 220 GHz)
- Provides wider dynamic range from -52 to +5 dBm (Option 200). Measuring Average power from -52 to -10 dBm (140 to 220 GHz), and CW power from > -10 to +10 dBm (140 to 170 GHz) / > -10 to +5 dBm (> 170 to 220 GHz)
- Compatible EPM N1913B/14B and N1913A/14A power meters
- Delivers a complete frequency and power coverage for source power calibration measurements up to 220 GHz
- Supplies an extended dynamic range of -52 up to +5 dBm and a built-in erasable programmable read-only memory (EEPROM) that stores the calibration factors for Option 200
