HIGHLIGHTS

  • Protocol trigger and hardware-accelerated protocol decode
  • Support for RS-232 and other UART serial buses
  • On-screen protocol decode in binary, HEX or ASCII

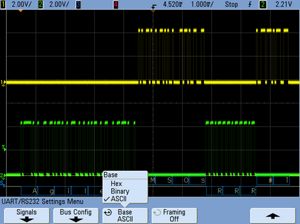

  • On-screen protocol decode synchronized with the serial data waveform

The RS-232/UART serial triggering and decode option for InfiniiVision oscilloscopes displays responsive, time-aligned, on-screen decode of RS-232 and other UART serial buses. It provides triggering capabilities on specified transmit or receive values, as well as on parity errors. Trigger on and acquire RS-232/UART signals using either scope or logic channels. Hardware-accelerated decode means the scope stays responsive and fast when decode is turned on. Real-time counters continually count transmit and receive frames and errors.

This software option works with all 4-channel InfiniiVision (5000, 6000, & 7000 Series) DSOs and MSOs.

Click here to request a 30-day trial license

Free Trials

Get a 30-day trial license for N5457A.

The N5457A RS-232/UART serial triggering and decode option is enabled with a license key on the Keysight InfiniiVision oscilloscopes, so there are no files to download and install.

Interested in a N5457A?

Extend the capabilities for your RS-232/UART Serial Triggering and Decode for InfiniiVision Series Oscilloscopes
