Understand Signal Integrity Limits at 448 Gb/s

As signaling advances toward 448 Gb/s per lane, analyzing signal integrity becomes critical to determine whether higher-order modulation schemes such as PAM6 and PAM8 can achieve acceptable performance. At these extreme data rates, eye openings shrink significantly, and signals become increasingly sensitive to noise, jitter, bandwidth limitations, and nonlinear distortions across electrical and optical channels. These effects directly impact bit error rate (BER) and define the feasibility of future 3.2T interconnect architectures.

To evaluate these effects, engineers must capture and analyze multi-level PAM signals with high-fidelity measurement systems capable of resolving vertical noise, timing jitter, and eye closure. Sampling oscilloscopes enable precise reconstruction of high‑speed waveforms and provide statistical insight across millions of acquired samples into signal distributions, allowing engineers to quantify margins, compare modulation schemes, and understand performance tradeoffs in early‑stage 448 Gb/s pathfinding workflows.

448 Gb/s Signal Analysis Solution

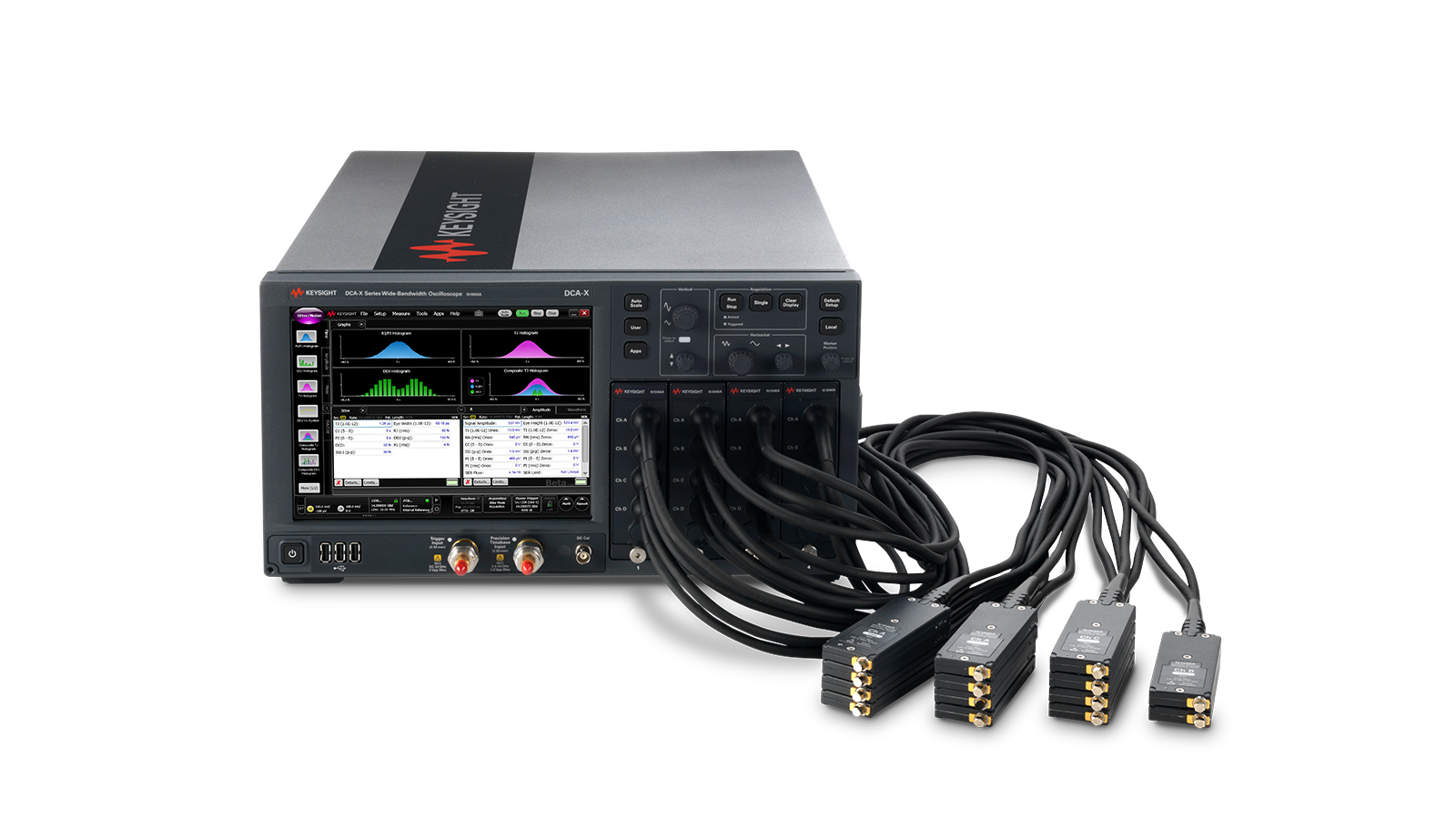

Analyzing 448 Gb/s PAM signals requires high-fidelity waveform acquisition and precise characterization of eye structure, noise, and timing behavior. The Keysight 448 Gb/s signal analysis solution uses a modular sampling oscilloscope with an electrical remote sampling head to capture multi-level PAM waveforms and extract critical metrics such as eye height, jitter, and signal-to-noise ratio. These measurements enable engineers to quantify signal integrity limits, estimate BER, and compare PAM4, PAM6, and PAM8 performance for next-generation interconnect pathfinding.
