Industry-leading Accuracy for High-speed Digital Designs
Equivalent-time (sampling) oscilloscopes are also known as digital communication analyzers (DCA). They are designed to visualize and analyze the analog properties of high-speed signals used in data center and wireline telecom applications. The Keysight DCA platform features a wide variety of optical, electrical, and TDR/TDT modules, compliance applications, and a common FlexDCA user interface to ensure more efficient testing in both R&D and manufacturing. Due to an ultra-low jitter and low-noise acquisition system, the Keysight DCA series provides industry-leading measurement accuracy for high-speed digital designs including 400G/800G Ethernet and Fibre Channel.
Find the Keysight DCA Series that's Right for You
Our DCA series and supporting instruments are built upon industry-leading technology to give you precise electrical, optical, and TDR/TDT measurements. The DCA-X and DCA-M series oscilloscopes leverage a common user interface (FlexDCA) which ensures the same measurement algorithms are used across all configurations.

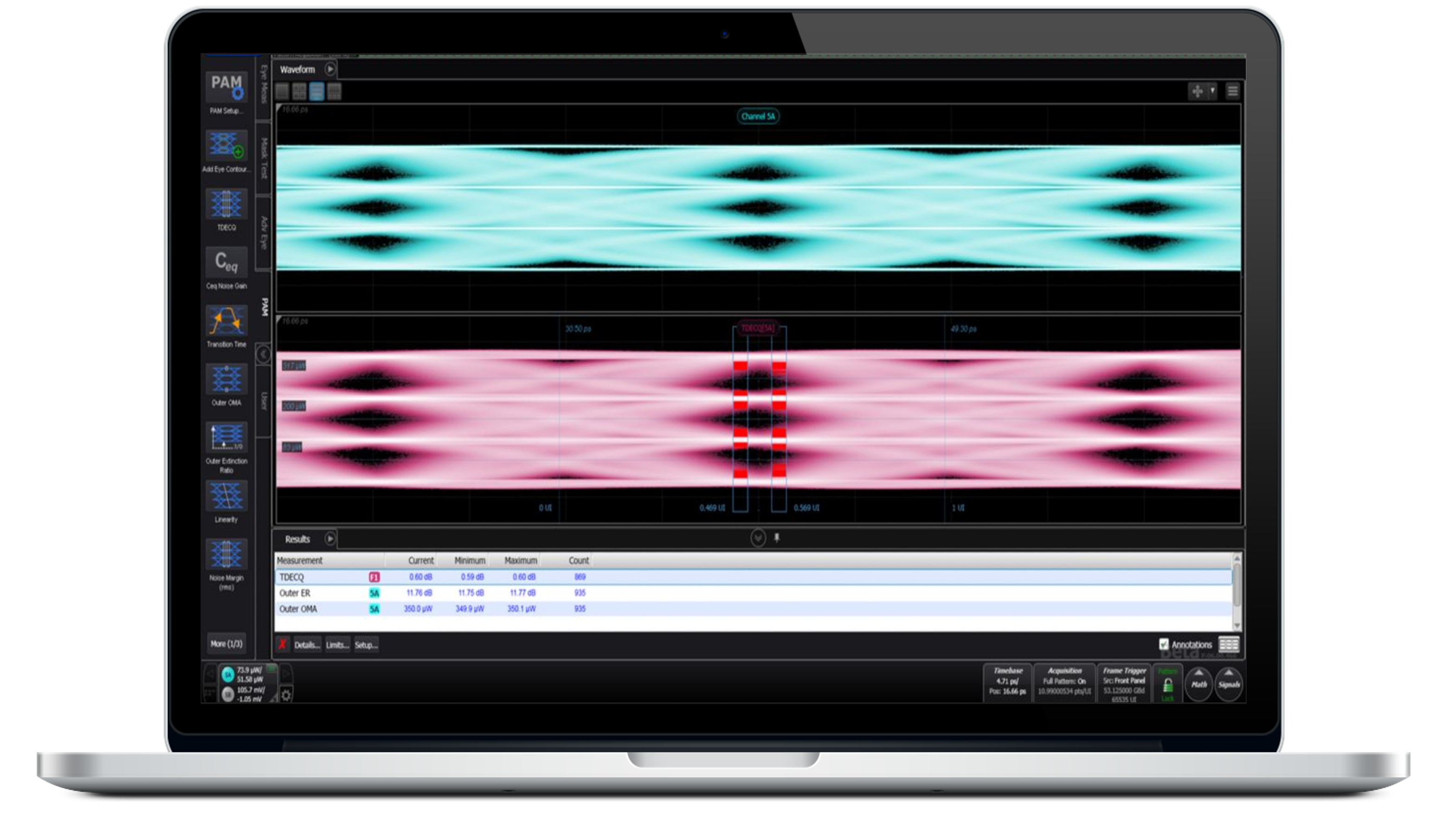

Keysight's N1010A FlexDCA is the software that runs on the Keysight DCA Series of sampling oscilloscopes. It controls the measurement hardware both as a local user interface and for remote control. In addition to acquiring data and making measurements, FlexDCA encompasses powerful tools that boost productivity and provide insights into root causes of issues with the signal or device under test.
FlexDCA continues to evolve for applications such as:
- research and design verification of electrical transmitters (ASICs, FPGAs, PHYs)
- research, development, and manufacturing of optical transmitters/transceivers
- analysis of reflections and transmission characteristics of electrical components and channels
- general-purpose analysis of analog and digital signals
Equivalent-Time versus Real-Time Oscilloscopes
In the past, deciding between an equivalent-time sampling oscilloscope and a real-time oscilloscope was a matter of determining your bandwidth requirements. However, with today’s high-performance instruments, that distinction isn’t as clear.
Learn about the differences between the sample and trigger architectures of these oscilloscopes, along with the advantages and disadvantages of each.
Extend Your Capabilities With The Right Tools
Technology is constantly changing. So too are the requirements faced by engineers. Get more functionality out of your existing hardware today by complementing it with the right accessories to improve productivity and the right Keysight PathWave design and test automation software to accelerate your product development.
Keysight Digital Communication Analyzer (DCA) Solutions
Configuration Guides 2023.09.24
DCA Wide-Bandwidth Oscilloscope Family
Data Sheets 2023.05.03
N1000A DCA-X and N1002A Optimization Controller
Flexible Optical Test Optimization (FlexOTO) Software and Solutions
Technical Overviews 2022.06.07
FlexDCA Sampling Oscilloscope Software
Technical Overviews 2023.08.22
DCA Accessories N1027A Kits and General-Purpose Parts
Application Notes 2023.08.23
Advanced Calibration Techniques to improve Extinction Ratio Measurement in DCA-X and DCA-M
N1092B Bundles for 100G/400G Optical TX Production Test
White Papers 2023.06.08
TDECQ Part 1: Making Accurate and Repeatable Compliance Measurements
White Papers 2020.07.01
TDECQ Part II Manufacturing Test Recommendations
