Trace Errors to Receiver Test Conditions

Debug receiver compliance failures by correlating reported errors with channel configuration, signal-to-noise conditions, impairment settings, and receiver operating mode. Engineers begin with a known-good test configuration, record receiver error behavior, then change one test variable at a time while maintaining the defined stressed pattern and measurement interval. Error-counter results provide a direct record of receiver-reported failures that can be compared with the physical channel and applied impairment conditions.

A practical debug sequence can compare shorter and longer channels, different data rates, master and slave operation, and controlled noise or timing stress. The source material describes a 22 m channel condition that produced more than 50 frame errors at 10 Gb/s under poor signal-to-noise conditions after shorter evaluated channels produced no post-FEC errors. Engineers can use this type of correlation to determine whether a failure follows channel degradation, an applied impairment, or a receiver configuration. Repeating the measurement with controlled changes helps identify the operating boundary and provides a traceable record for compliance debug.

Receiver Compliance Debug Solution

Begin debugging by reproducing the reported failure with the same channel, stressed pattern, receiver mode, and measurement interval used during the original test. The receiver test solution supports automated BER measurements, error-counter based evaluation, and structured reporting so each result can be associated with its test conditions. Engineers can then vary channel length, data rate, impairment level, or receiver mode one variable at a time and observe whether the error count follows the change. Comparing error behavior with signal-to-noise conditions and channel construction helps locate the operating boundary and distinguish a receiver limitation from a test-setup condition.
Get Quote

See Block Diagram of Receiver Compliance Debug Solution

How to Debug MultiGBASE-T1 Receiver Compliance Failures

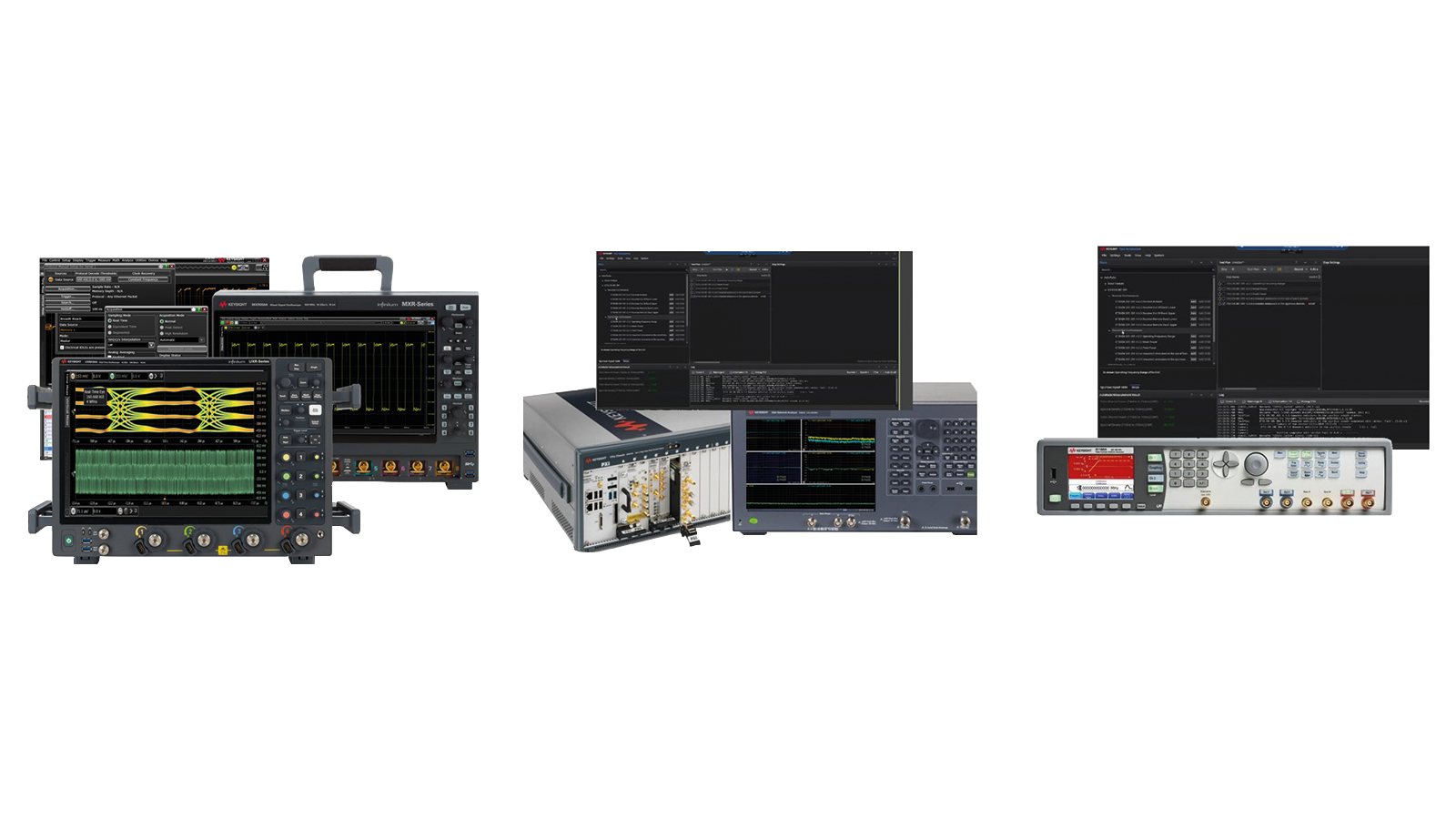

Explore Products in Our Receiver Compliance Debug Solution
